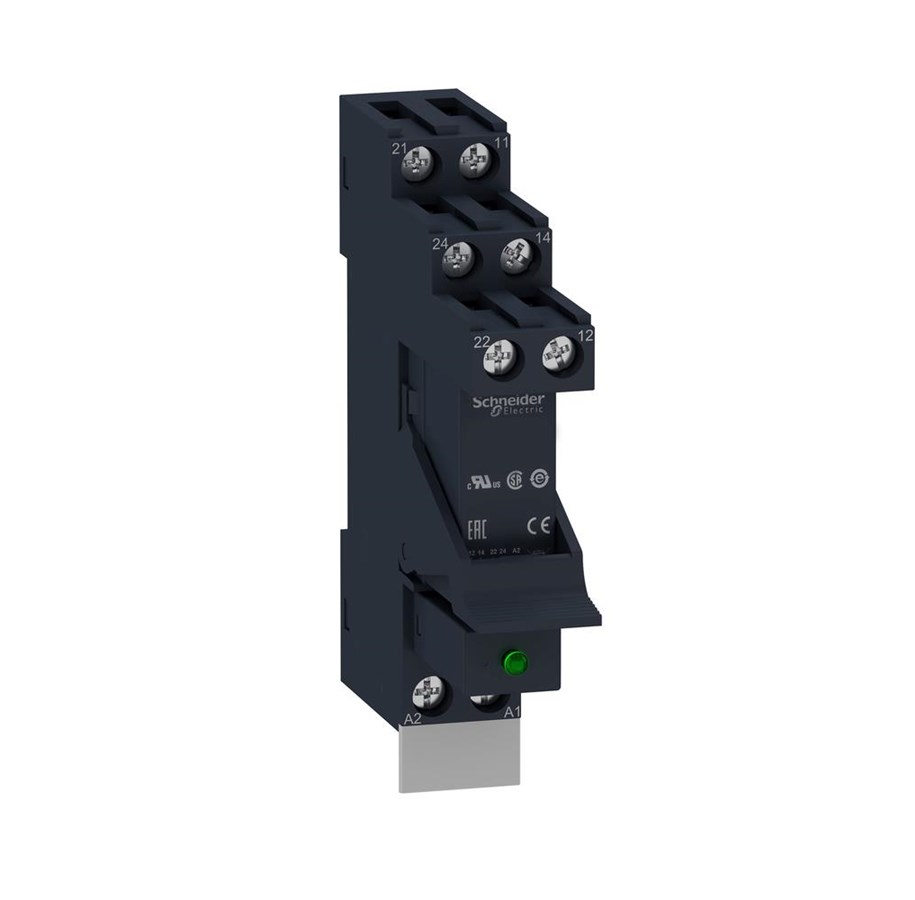

Schneider Electric Zelio rsb plug-in relay premounted in socket with diode and legend 2 c/o 8a contacts and 24vdc supply

Zelio RSB plug-in relay in socket with diode and label, 2 C/O contacts at 8A and 24VDC supply. Product description: Zelio RSB is a series of compact plug-in relays with a width of only 16 mm. The relays are available with either 1 C/O at 12 or 16A or 2 C/O contacts at 8A. There is the possibility of inserting a protection module (diode, varistor or RC-led) directly into the relay socket if needed. The RSZE1S35M and RSZE1S48M sockets have separate terminals for supply and contact sets that make it easy to troubleshoot the relays. RSB2A080BDPV is a complete plug-in relay mounted in the RSZE1S48M relay socket with a retaining clip that ensures that the relay remains securely in place even under vibrating conditions. A blocking diode for rectifying DC voltage is mounted in the socket, which also has an LED indicating when there is power to the relay.RSB2A080BDPV has two C/O AgNI contacts with maximum load capacity of 8 A.The life span of this relay depends on load level and type but it can last up to 100,000 connections.The power supply for RSB2A080BDPV is 24 VDC and its own consumption on this device will be around 0.45W.Minimum switching current on contact set is100mA.Up to eight relays can be connected using loop rail RGZS08 which comes as an accessory for sockets.RSB series has UL & CSA approval for use in USA & Canada
