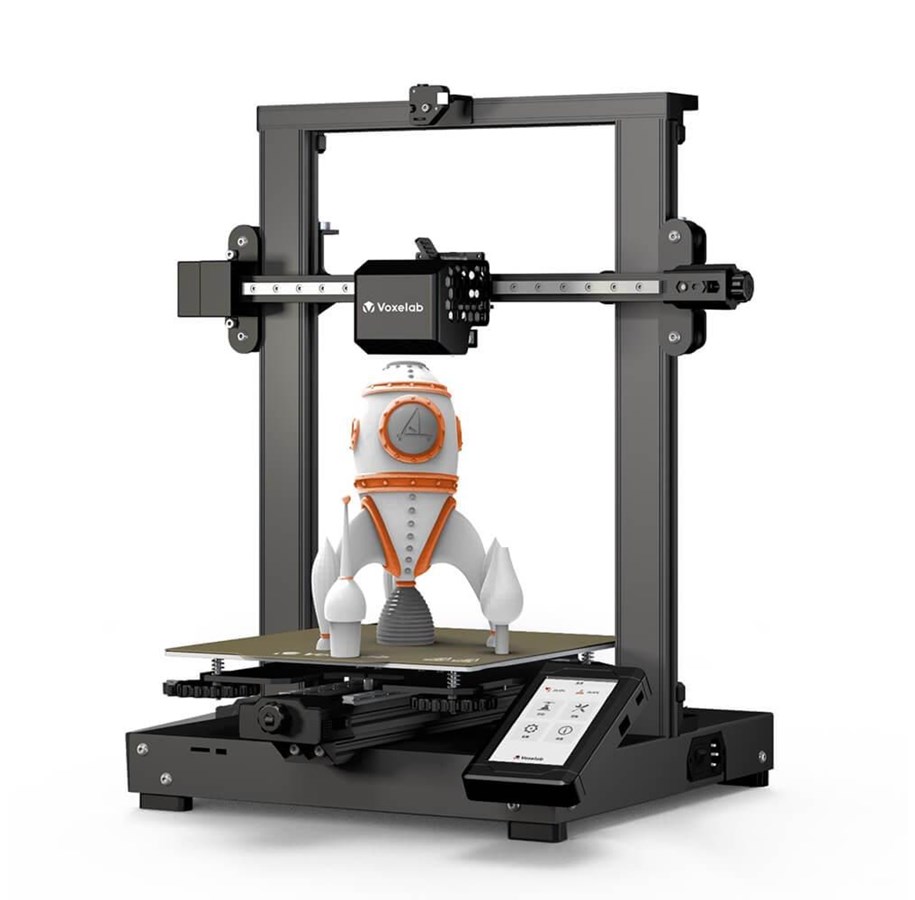

FlashForge Voxelab Aquila D1 3D Printer FDM - 3D printer

X-axis, Y-axis Linear Guide
The X-axis and Y-axis use linear guide rails instead of pulley guide rails, with a motion accuracy of ±0.02mm, reducing the surface texture caused by machine shaking, making printing more stable and printing details finer.

Z-axis High-precision Double Screw
The Z-axis adopts double screw synchronous operation to reduce printing wobbles, bringing more stable operation and smaller zeroing error.

Strong Wire Feeding Force up to 70N
The new nozzle adopts an all-metal double-gear direct extruder, a reduction ratio design with a transmission ratio of 1: 2.83, which can achieve up to 70N wire feed force (180% greater than Aquila C2), ensuring smoother wire feeding when printing different filaments, especially flexible filament TPU.

Dual Cooling Adjustable Fans
The wind speed can be adjusted according to the temperature sensitivity of the material, making wire feeding is smoother, the model quality better.

In the Box
Aquila D1 self-assembled X1
Power cable X1
Cable tie X1
Needle X1
Material rack X1
Remove tool X1
Storage card and card reader X1
Wrenches and screwdrivers X1
50g Filament X1
Nozzle X3
Screw kit X1
Diagonal pliers X1
Glue stick X1
Grease X1
User manual X1

Specifications
Print
Extruder Quantity: 1
Nozzle Diameter: Standard 0.4 mm, Optional 0.6 mm
Maximum Extruder Temperature: ≤300℃
Print Speed: ≤180 mm/s, 100 mm/s normally
Maximum Platform Temperature: ≤110℃
Filament Compatibility: Φ1.75 mm PLA, PETG, TPU 95A, ABS, HIPS
Print Volume: 235*235*250 mm
Layer Thickness: 0.1 mm-0.4 mm
Print Precision: ±0.2 mm
Mechanical & Dimension
Printer Dimension: 470*440*511 (663) mm
Package Dimension: 515*515*250 mm
Screen: 4.3-inch Touch Screen
Net Weight: 9 kg
Gross Weight: 11 kg
Input: AC 100-120V~6.8A; 200-240V~3.4A
Output: DC 24V~14.6A
Power: 350 W
Electrical
Connectivity: USB / SD Card
Software: VoxelMaker / Cura / Simplify 3D
Supported File Format: STL, OBJ, AMF
Input / Output File Format: .g / .gcode
Supports(OS): Win 7 / 10 / Mac OS
Others*
Running Noise: 50 dB
Working Environment: 15-30 ℃
Language Switch: Chinese / English / Spanish / French / German / Russian
Auxiliary Leveling: 25-point Leveling
Z-Axis: Threaded Rod x 2
Power Loss Recovery: Yes
Filament Sensor: Yes
PEI Spring Steel Platform: Yes
Buzzer Hint: Yes
