Bevegelsessensorer og skumringsbrytere - B.E.G. Lc-plus 280° black - 91028

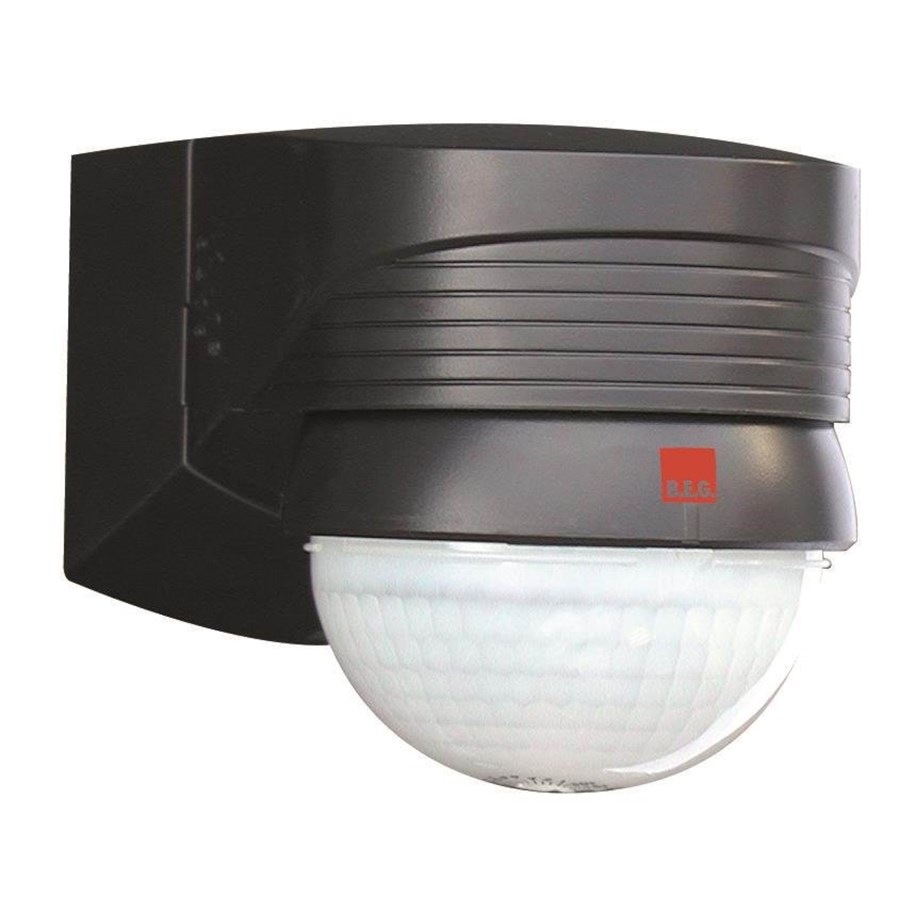

B.E.G. Lc-plus 280° black

Product: LC-plus 280 (91028) black. Motion sensor, which is electronically controlled by a microprocessor with 360 ° creep zone for a complete detection. Adjustable ball head optics. Uncovering not desired detection zones while placing infinitely displaceable guard, which all detection zones below 280 °, for example. 90 °, 130 ° or 230 °, can be realized. cover 360 ° - creep zone included. Setting the twilight threshold and delay time with two potentiometers on the ball head underside. Factory preset program for immediate deployment with twilight setting at approximately 20 lux and a delay time of 3 minutes. Wall or outer corner with special socket (provided). Application examples: monitoring two house sides simultaneously, garage or driveways, husindgange. Power supply voltage: 230V ~ ± 10%. Detection range: 280 °. Range (around) m: max. 16 m by moving across the detection area (tangential). Protection: IP44 / Class II / CE. Dimensions: L 100 x W 68 x H 78 mm. Ambient temperature: -25 ° C to + 50 ° C. Housing: UV-resistant polycarbonate high-quality. Remote controllable: IR-LC-plus, IR-LC-Mini Channel 1 (light control). Max Load: 2000 W, power factor measure = 1, 1000 W, power factor measure = 0.5. Time settings: 15 sec. - 16 min .. Brightness Value: 2-2500 Lux.

Varenummer: 2755261
Varen er utgått
Se lignende produkter

Motion sensor LC-Plus 280, Black Product description: • Motion sensor with a detection range of 280°, electronically controlled by a microprocessor • With a 360° creep zone for complete monitoring • Adjustable ball head optics • Covering of unwanted detection zones by attaching infinitely adjustable covers, allowing all detection zones under 280° such as 90°, 130° or 230° to be realized• Cover for the full 360-degree creep zone included. • Setting of twilight value and delay time with two potentiometers on the underside of the ball head. • Factory-set program for immediate use with set twilight value at approximately 20 lux and a delay time of three minutes.• Mounting on wall or outer corner with special bracket (included).• Application examples: monitoring two sides of house simultaneously, garage or driveway entrances, house entrances.• Plug-in mounting. Easy installation.Technical specifications: Supply voltage (V AC):230Color:blackRange (M):16Mounting height:2.5

Produsent
Varenummer
2755261
Model
91028
Ean
4007529910281
