Bevegelsessensorer og skumringsbrytere - B.E.G. Occupancy detector pd2/m-dim/sm - 92153
Varenummer: 2959365

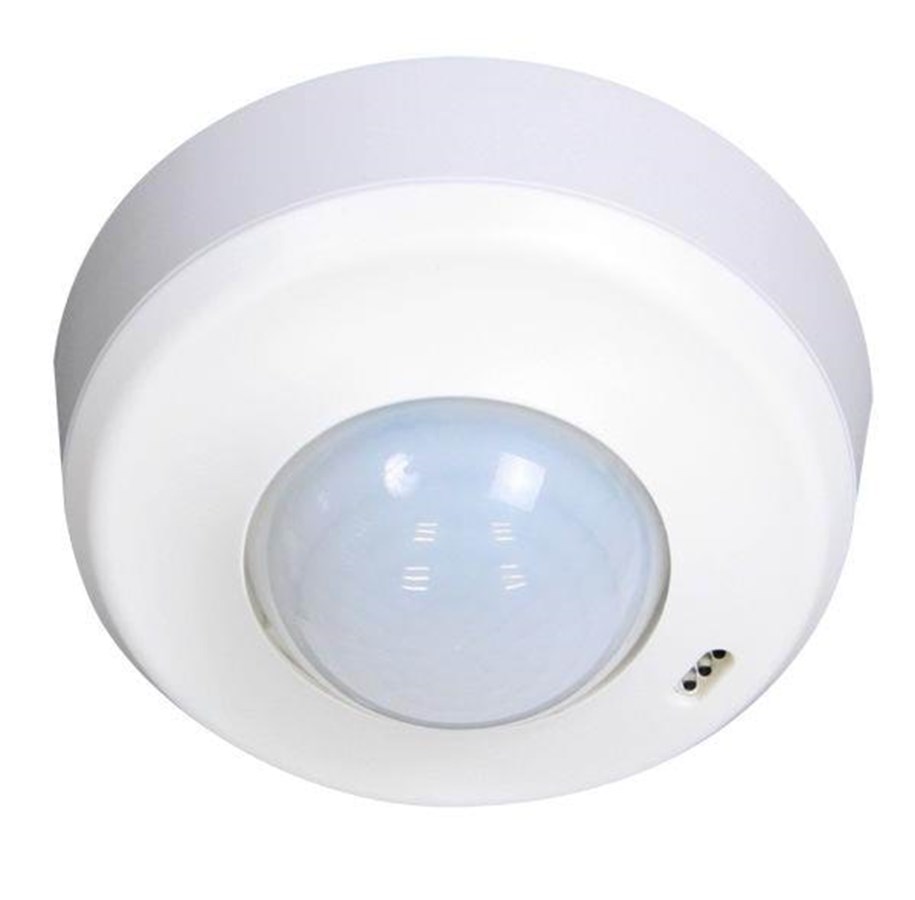

B.E.G. Occupancy detector pd2/m-dim/sm

Product: PD2-M-DIM-P (92153) The convenient and cheap solution to the constant light presence / motion detector LUXOMAT® PD2-M-DIM in version dimming for mounting in fixed ceiling or PL can. Dimmer with a 1-10 VDC interface. You can connect an unlimited number of slaves for cheap extension of the detection area! There is a choice of functions fully or semi-automatically dimming and switching with the optional infrared remote control. Application examples: offices, conference rooms, schools, kindergartens, hospitals. Power supply voltage: 230V ~ ± 10%. Detection range: 360 ° Range (around) m: - sitting Ø 4.00 m - across Ø 10.00 m - head Ø 6.00 m .Beskyttelsesklasse: IP20 / Class II / CE. Dimensions: Ø 80 x H 84.5 mm Ambient temperature: -25 ° C to + 50 ° C Housing: UV-resistant High-quality polycarbonate Channel 1 (light control) Max Load: 2300 W, power factor measure = 1, 1150 VA, power factor measure = 0.5 Time Settings: 1 min. - 30 min. or pulse Brightness Value: 10-2000 Lux Dimmer w

Les mer
1 712,00 kr 1 369,60 kr eksl. mva
Gratis frakt (privatkunde)
Fjernlager, 2-4 dager til forsendelse

Presence sensor PD2-M-DIM-P 1-10V, Surface-mounted Product description: • Presence/motion sensor LUXOMAT® PD2-M-DIM-P 1-10V dimming for mounting on fixed ceiling or on PL box• Can be overridden via remote control (accessory)• Dimmer output with 1-10 VDC interface. Technical specifications: Supply voltage (V AC): 230Color: white RAL 9010Range (M): 10Mounting height: 2.5

Produsent
Varenummer
2959365
Model
92153
Ean
4007529921539

Ovenstående informasjon/spesifikasjoner er veiledende og kan uten varsel bli endret av produsenten. Det tas forbehold om trykkfeil og illustrerende bilder. Enkelte tekster kan være autogenerert eller maskinoversatt, så derfor kan det forekomme tekster som virker misvisende.
