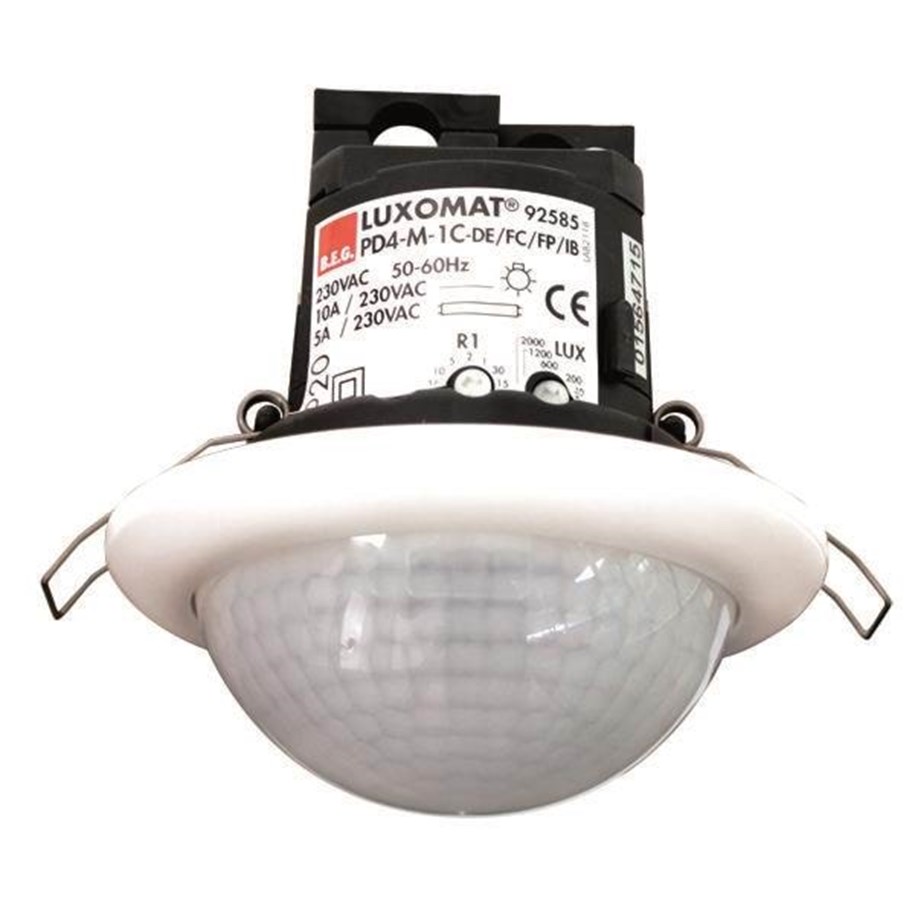

B.E.G. Occupancy detector pd4-m-1c-fc
Product: PD4-M-1C-i (92585) Presence / motion detector LUXOMAT® PD4-M-1C as Master version for wall mounting, recessed ceiling and wall. Thick relay for ignition of lamps with high consumption especially optical system for detecting the smallest movements. You can connect an unlimited number of slaves for cheap extension of the detection area! Series production impulse function. Application examples: monitoring of large surfaces such. parking garages, gyms, warehouses, loading ramps, halls etc. Power supply voltage: 230V ~ ± 10%. Detection range: 360 ° Range (around) m: - sitting Ø 6.40 m - across Ø 24.00 m - head Ø 8.00 m Protection: IP20 / Class II / CE. Dimensions: Ø 97 x H 103 mm. Ambient temperature: -25 ° C to + 50 ° C. Housing: UV-resistant polycarbonate high-quality. Channel 1 (light control) Max Load: 2300 W, power factor measure = 1, 1150 VA, power factor measure = 0.5. Time settings: 15 sec. - 30 min. or pulse Brightness Value: 10-2000 Lux. Power consumption:> 0.5W.
