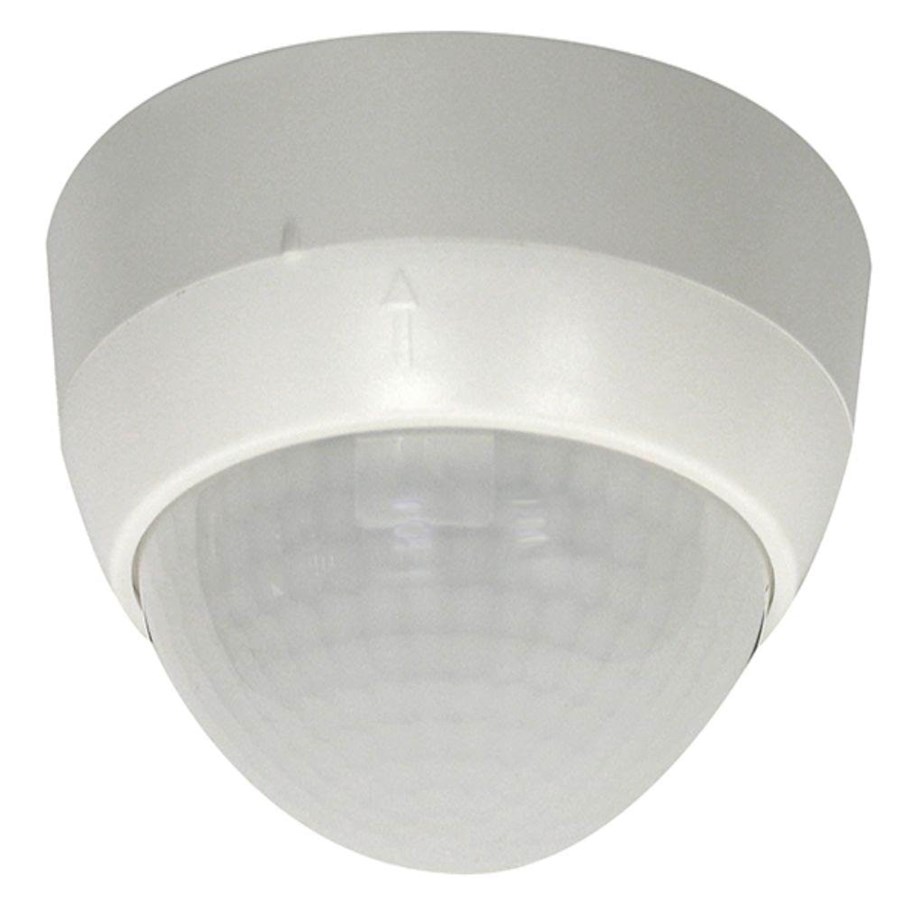

B.E.G. Occupancy detector pd4-m-1c-gh-sm
Product: PD4-M-1C-GH-P (92245) Presence / motion detector LUXOMAT® PD4-M-1C-GH-P Master version for ceiling mounting with oval detection area and about 44 m range specifically for the storage of high shelving. Thick relay for ignition of lamps with high consumption can connect an unlimited number of slaves for cheap extension of the detection area! Instant commissioning with factory settings. Turning the lighting as well as setting the parameters with the remote control LUXOMAT® IR-PD4-GH. Application examples: monitoring of warehouses and warehouse with high racks, where the mounting height is great. Power supply voltage: 230V ~ ± 10% Detection range: 360 ° Range (around) m: - across Ø 44.00 m Protection: IP20 / Class II / CE. Dimensions: Ø 98 x H 63 mm Ambient temperature: -25 ° C to + 50 ° C Housing: UV-resistant High-quality polycarbonate Channel 1 (light control), Max load: 2300 W, power factor measure = 1, 1150 VA, power factor measure = 0.5 Time settings: 15 sec. - 30 min. or pulse Brightness Value: 10-2000 Lux 15 seconds. - 30 min. or pulse Brightness Value: 10-2000 Lux. Power consumption:> 0.5W
