Bevegelsessensorer og skumringsbrytere - B.E.G. Occupancy detector pd4-m-1c-sm - 92580
Varenummer: 2755220

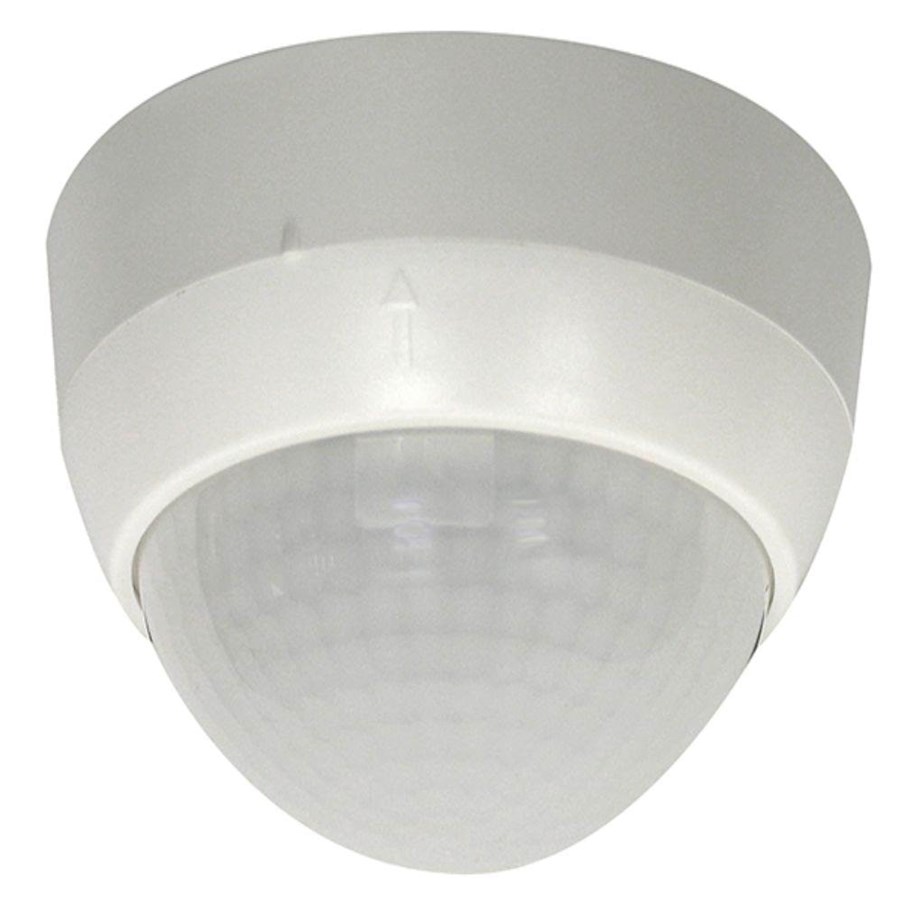

B.E.G. Occupancy detector pd4-m-1c-sm

Product: PD4-M-1C-P (92580) Presence / motion detector LUXOMAT® PD4-M-1C as Master version for fixed installation on walls, ceilings or PL-box. A omskiftningskanal to light (potential). Thick relay for ignition of lamps with high consumption especially optical system for detecting the smallest movements. You can connect an unlimited number of slaves for cheap extension of the detection area! Series production impulse function. Application examples: monitoring of large surfaces such. parking garages, gyms, warehouses, loading ramps, halls etc. Power supply voltage: 230V ~ ± 10%. Detection range: 360 ° Range (around) m: - sitting Ø 6.40 m - across Ø 24.00 m - head Ø 8.00 m Protection: IP20 / Class II / CE. Dimensions: Ø 97 x H 103 mm. Ambient temperature: -25 ° C to + 50 ° C. Housing: UV-resistant polycarbonate high-quality. Channel 1 (light control) Max Load: 2300 W, power factor measure = 1, 1150 VA, power factor measure = 0.5. Time settings: 15 sec. - 30 min. or pulse Brightness Value: 10-2000 Lux. Power consumption:> 0.5W

Les mer
1 383,00 kr 1 106,40 kr eksl. mva
Gratis frakt (privatkunde)
Fjernlager, 2-4 dager til forsendelse
proshop-xmas-gran proshop-xmas-gran

UTVIDET JULERETURRETT FRAM TIL 31. JANUAR 2025

Proshop tilbyr utvidet Juleretur til privatkunder på ordre kjøpt i perioden 1. november til 23. desember 2024. Les betingelsene her.

Presence sensor PD4-M-1C-P Master, Surface-mounted Product description: • Presence sensor LUXOMAT® PD4-M-1C in the Master version for mounting on ceiling or wall. • 1 channel for switching lights (potential-free). • Powerful relay for switching lamps with high consumption. • Special optical system for detecting the smallest movements. • An unlimited number of Slaves can be connected for cost-effective expansion of the detection area! • Application examples: Large offices, meeting rooms, schools, kindergartens, hospitals. Technical specifications: Supply voltage (V AC): 230Color: white RAL 9010Range (M): 24Mounting height: 2.5

Produsent
Varenummer
2755220
Model
92580
Ean
4007529925803
