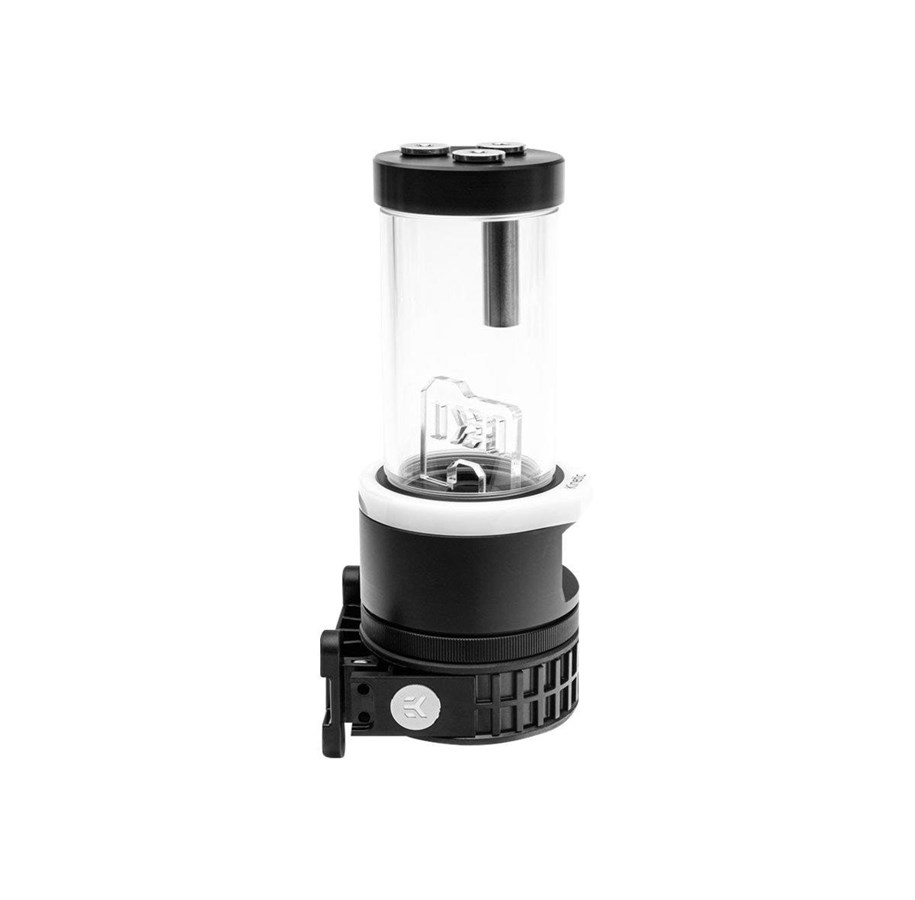

EK Water Blocks EK-Quantum Kinetic TBE 200 D5 PWM D-RGB
EK-Quantum Kinetic TBE D5 combo-enhet er revolusjonen av den mest populære pump-reservoarmonteringsdesignen på markedet. De nye Kinetic combo-enhetene er en del av EK Quantum-serien med produkter og leveres med sofistikert adresserbar D-RGB-belysningsimplementering og en ekte D5-pumpe!
2 512,00 kr
2 009,60 kr eksl. mva
Gratis frakt (privatkunde)
Bestillingsvare, 7-9 dager til forsendelse
Pump electrical and mechanical properties:
- Motor: Electronically commuted spherical motor
- Rated voltage: 12V DC
- Power consumption: 23W
- Maximum pressure head: 3.9m
- Maximum flow: 1500L/h
- Maximum system temperature: 60°C
- Materials: Stainless steel, PPS-GF40, EPDM O-rings, hard coal
- Power connector: SATA power and 4-Pin PWM FAN connector
Technical specifications:
- Reservoir diameter 60mm
- Reservoir free volume: 205mL
- Overall unit height: 200mm
- Mounting hole pattern: 65x34mm
- D-RGB connector standard 3-pin (5+, Digital, Blocked, Ground)
Operational regime:
- PWM duty cycle: ~ 20-100%
- Default behavior: Runs at 100% duty cycle when no PWM feedback signal is present
Enclosed:
- EK-Quantum Kinetic TBE 200 D5 PWM D-RGB
- Mounting clip with rubber insert
- Self-adhesive mounting hole pattern sticker
- Mounting mechanism (incl. required Allen keys)
- Installation manual
Made in Slovenia - EU!
Pump motor made in Hungary - EU!
PLEASE NOTE:
- EK-D5 PWM G2 is an enhanced variant of the world renown Xylem D5 with improved power management control, which allows for better speed control trough motherboard BIOS or dedicated fan controller.
- The D5 pump is water lubricated, in other words, it uses a wet rotor design. Therefore, it is strongly recommended not to run the pump dry.
- This product should NOT be installed with any aluminum Fluid Gaming parts!
- Motor: Electronically commuted spherical motor
- Rated voltage: 12V DC
- Power consumption: 23W
- Maximum pressure head: 3.9m
- Maximum flow: 1500L/h
- Maximum system temperature: 60°C
- Materials: Stainless steel, PPS-GF40, EPDM O-rings, hard coal
- Power connector: SATA power and 4-Pin PWM FAN connector
Technical specifications:
- Reservoir diameter 60mm
- Reservoir free volume: 205mL
- Overall unit height: 200mm
- Mounting hole pattern: 65x34mm
- D-RGB connector standard 3-pin (5+, Digital, Blocked, Ground)
Operational regime:
- PWM duty cycle: ~ 20-100%
- Default behavior: Runs at 100% duty cycle when no PWM feedback signal is present
Enclosed:
- EK-Quantum Kinetic TBE 200 D5 PWM D-RGB
- Mounting clip with rubber insert
- Self-adhesive mounting hole pattern sticker
- Mounting mechanism (incl. required Allen keys)
- Installation manual
Made in Slovenia - EU!
Pump motor made in Hungary - EU!
PLEASE NOTE:
- EK-D5 PWM G2 is an enhanced variant of the world renown Xylem D5 with improved power management control, which allows for better speed control trough motherboard BIOS or dedicated fan controller.
- The D5 pump is water lubricated, in other words, it uses a wet rotor design. Therefore, it is strongly recommended not to run the pump dry.
- This product should NOT be installed with any aluminum Fluid Gaming parts!
Produsent
Varenummer
2872083
Model
3831109818381
Ean
3831109818381
Til produsentens hjemmeside
Produktbeskrivelse
EkWaterBlocks EK-Quantum Kinetic TBE 200 D5 PWM D-RGB - væskekjølesystempumpe og -beholder
Produkttype
Væskekjølesystempumpe og -beholder
Pakkeinnhold
Monteringsmekanisme, installasjonsveiledning, mounting clip with rubber insert, self-adhesive mounting hole pattern sticker
Farge
Svart
Strømkobling
4-pins viftekontakt, 4-pins Molex-kontakt
Produktmateriale
Stainless steel, akryl, nikkelbelagt messing, aluminiumoksid, EPDM-gummi, hardkull, CNC machined acetal
Dimensjoner (BxDxH)
20 cm
Egenskaper
Støtte for pulsbreddemodulering (PWM), 6 x G1/4" thread, adresserbar D-RGB, mounting hole pattern 65 x 34 mm
Fabrikantgaranti
2 års garanti
Generelt
Produkttype
Væskekjølesystempumpe og -beholder
Produktmateriale
Stainless steel, akryl, nikkelbelagt messing, aluminiumoksid, EPDM-gummi, hardkull, CNC machined acetal
Pakkeinnhold
Monteringsmekanisme, installasjonsveiledning, mounting clip with rubber insert, self-adhesive mounting hole pattern sticker
Høyde
20 cm
Farge
Svart
Kjølelegeme og vifte
Strømkobling
4-pins viftekontakt, 4-pins Molex-kontakt
Strømforbruk
23 W
Diverse
Monteringssett
Inkludert
Egenskaper
Støtte for pulsbreddemodulering (PWM), 6 x G1/4" thread, adresserbar D-RGB, mounting hole pattern 65 x 34 mm
