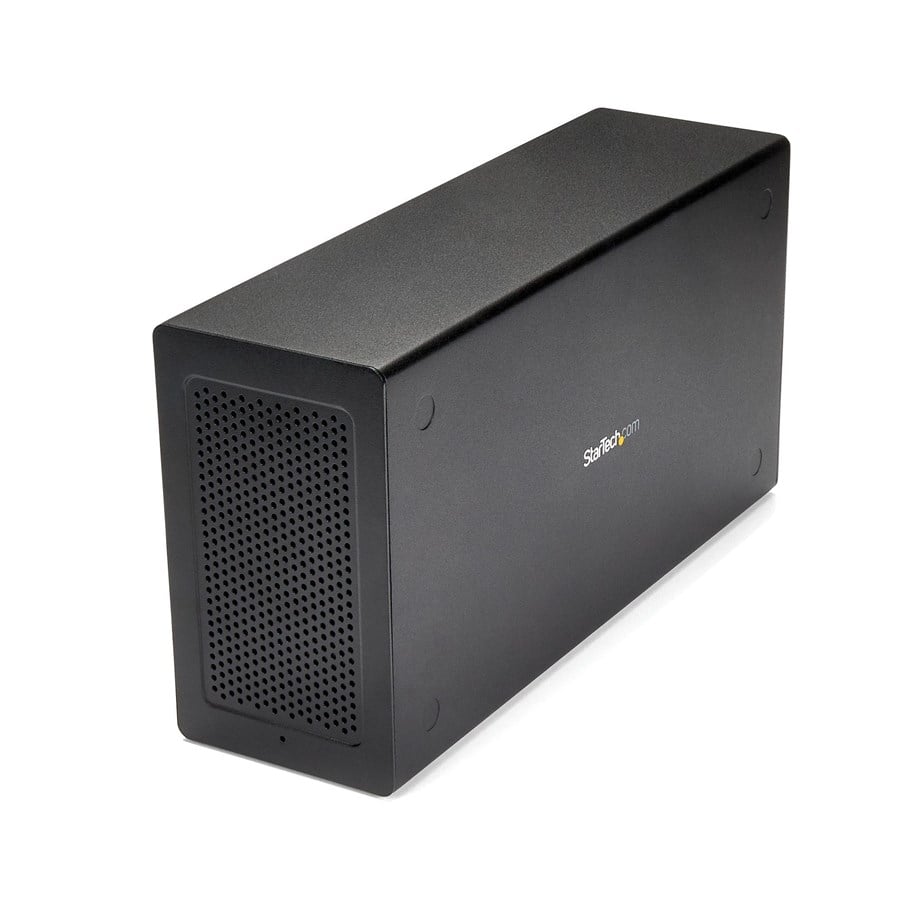

StarTech.com Thunderbolt 3 PCIe Expansion Chassis with DisplayPort - PCIe x16 - system bus extender - DP
Systembussutvider, DP, 65 watt, for P/N: TB3DK2DPM2, TB3DOCK2DPPD, TB3DOCK2DPPU
4 725,00 kr
3 780,00 kr eksl. mva
Gratis frakt (privatkunde)
Fjernlager, 3-5 dager til forsendelse
Add an external PCIe (PCI Express 3.0) x16 slot and a DisplayPort connection to your Thunderbolt 3 equipped MacBook or laptop. This Thunderbolt 3 PCIe expansion chassis lets you add a PCI Express card to your laptop or desktop computer, through an external Thunderbolt 3 connection. The chassis also features a DisplayPort video output, so you can connect an additional monitor to your laptop, and supports Thunderbolt 3 daisy chaining, so you can expand your workstation even further.The Thunderbolt 3 PCIe chassis makes it easy to expand your system with the capabilities you need to work at peak productivity. You can add many types of PCI Express cards, such as a PCIe USB 3.1/3.0/2.0 and USB-C, SSD, network, eSATA, FireWire or video capture cards. And, with the speed and bandwidth support of Thunderbolt 3 and PCIe 3.0, you can enjoy many of the same port additions you would from the PCI Express expansion slots of a desktop system.The external PCIe enclosure features a dedicated DisplayPort output that lets you add an additional display to your laptop or desktop computer. The enclosure features a second Thunderbolt 3 (USB-C) port, that you can use to connect a secondary display (a USB-C video adapter may be required). With multiple extended displays, you can work more efficiently by multitasking faster, and avoid the hassle of continually repositioning several open windows or programs.You can also use the second Thunderbolt 3 port to connect additional Thunderbolt, USB and DisplayPort devices to your system. You can daisy chain up to six Thunderbolt 3 devices and expand your workstation to suit your specific requirements.Thunderbolt 3 is the fastest connection available, which means you don't have to deal with the performance bottlenecks of a slower connection, and can accomplish more in the same amount of time.At up to 40Gbps this Thunderbolt 3 expansion chassis gives you the throughput to add displays to your laptop, access files quickly, and work without disruptions. It's easy to access and edit large uncompressed files such as videos and images on the fly, making it ideal for dynamic on-site production.
Produsent
Varenummer
2688828
Model
TB31PCIEX16
Ean
0065030868440
Til produsentens hjemmeside
Produktbeskrivelse
StarTech.com Thunderbolt 3 PCIe Expansion Chassis, External Enclosure Box with 1x PCI-Express Slot, 5K/4K Output Via TB3/DP Ports, TAA - systembussutvider - DP
Produkttype
Systembussutvider
Videogrensesnitt
DP
Dimensjoner (BxDxH)
27.3 cm x 8.2 cm x 14 cm
Vekt
1 kg
Farge
Svart
Strømforsyning
Strømadapter AC 100/240 V (50/60 Hz) 65 watt Strømtilførsel
Fabrikantgaranti
2 års garanti
Designet for
P/N: TB3DK2DPM2, TB3DOCK2DPPD, TB3DOCK2DPPU
Generelt
Produkttype
Systembussutvider
Bredde
27.3 cm
Dybde
8.2 cm
Høyde
14 cm
Vekt
1 kg
Eksteriørfarge
Svart
Ekspansjon / Tilkoplinger
Utvidelsesspor
1 (total) / 1 (ledig) x PCI Express 3.0 x16 (x4-modus)
Grensesnitt
2 x Thunderbolt 3 - 24 pin USB-C
1 x skjerm/video - DisplayPort - 20-pins DisplayPort
1 x skjerm/video - DisplayPort - 20-pins DisplayPort
Diverse
Medfølgende kabler
1 x Thunderbolt-kabel - ekstern
Inkludert tilbehør
4 x gummiføtter
Egenskaper
LED-indikator, innbygd kjølevifte
Tilpassede standarder
FCC, RoHS, WEEE
Strømforsyning
Strømenhet
Strømadapter
Påkrevd nettspenning
AC 100/240 V (50/60 Hz)
Strømtilførsel
65 watt
Systemkrav
OS påkrevd
Microsoft Windows 7 / 8 / 8.1 / 10 / 11, Apple macOS 10.12 - 10.15, Apple macOS 11.0, Apple macOS 12.0, Apple macOS 13.0
Miljøparametere
Min. driftstemperatur
5 °C
Maks. Driftstemperatur
35 °C
