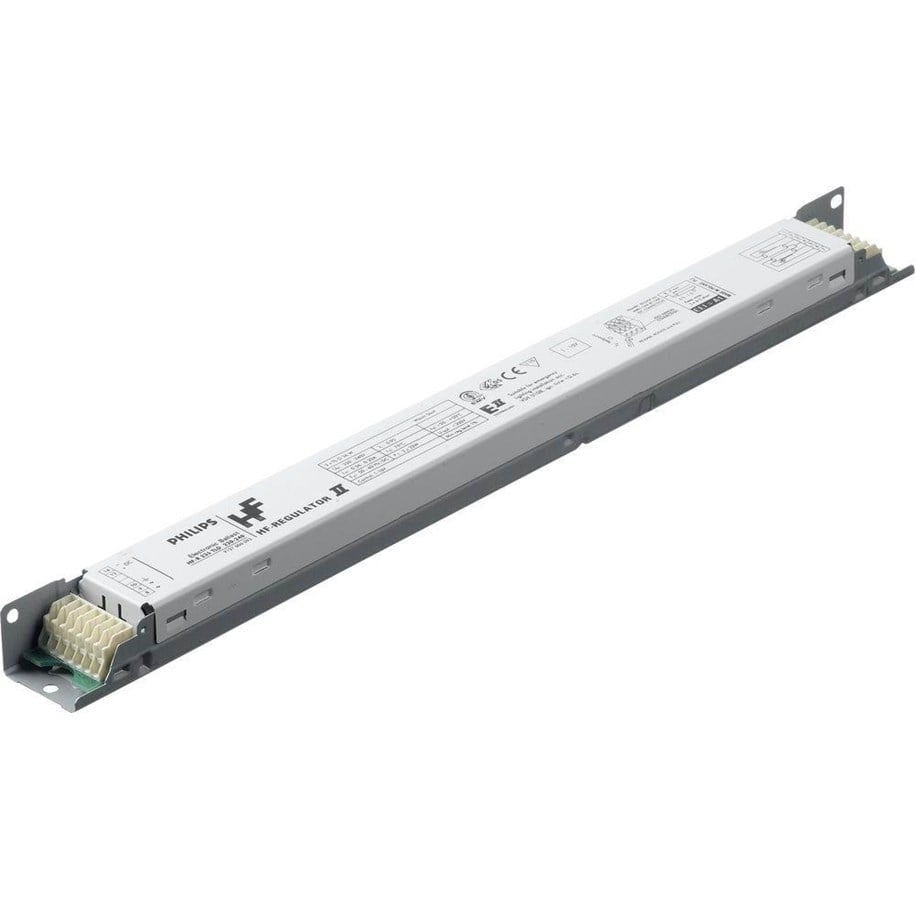

Philips Hf-regulator 136 tl-d eii 220-240v 50/60hz
HF-Regulator II for TL-D lamps – Dimming: a next step in energy savingHigh-frequency electronic dimming ballast, using the analog protocol (1-10 V) for TL-D lampsProduct Benefits • The lamp power can be dimmed from 1 to 100% via the Analog control input (in accordance with the 1-10 V industry standard) • Compliant with European and Asian norms and suitable for emergency lighting systems • HF operation improves light quality, lamp lifetime • Combined with controls, additional energy savings can be achievedProduct Features • Programmed start: flicker-free ignition < 0.5 seconds and striation-free operation, no stroboscopic effects. Preheating the lamp electrodes enables the lamps to be switched on and off without reducing life • Smart power ensures constant light, independent of mains fluctuations. • Up to 60% reduction in energy consumption by using automatic lighting control systems • Stop circuit is activated within 5 seconds in the event of lamp failure (safety stop), and ballast resets automatically after lamp replacementApplications • Indoor, general and task lighting applications in combination with lighting control systems (personal control, daylight linking and/or movement detection)
929,00 kr
743,20 kr eksl. mva
Rimeligste private frakt: 95,00 kr
Fjernlager, 3-5 dager til forsendelse
Electronic Ballast HF-R 136 TL-D EII 220-240V 50/60HZProduct description: HF Regulator II for TL-D light sources - Dimming: the next step in energy savings. Electronic high-frequency ballast with dimming, using the analog protocol (1-10 V) for TL-D light sources.Product advantages:• The light source's power can be dimmed from 1 to 100% via an analog control input (according to the industry standard of 1-10 V).• Complies with European and Asian standards and is suitable for emergency lighting systems.• HF operation improves light quality and extends the life of the light source.• Additional energy savings can be achieved when used together with lighting control systems.Product features:• Programmed start: flicker-free ignition in less than .5 seconds, no striping effects or stroboscopic effects. Preheating of lamp electrodes allows lights to be turned on and off without reducing their lifespan.• Intelligent current ensures constant luminous efficiency regardless of fluctuations in mains voltage.• Up to a 60% reduction in energy consumption when used with automatic lighting control systems.• The stop circuit is activated within five seconds if there is a fault in the light source (safety stop), and when the light source has been replaced, the ballast automatically resets.Applications:Indoor lighting, general illumination, task lighting combined with lighting control systems (personal control, daylight linking and/or motion detection).Technical specifications:Width (mm):30Height(mm):22Voltage(V):220-240Length(mm):359
Til produsentens hjemmeside
Ovenstående informasjon/spesifikasjoner er veiledende og kan uten varsel bli endret av produsenten. Det tas forbehold om trykkfeil og illustrerende bilder. Enkelte tekster kan være autogenerert eller maskinoversatt, så derfor kan det forekomme tekster som virker misvisende.
