Blackmagic DaVinci Resolve Micro Panel
• 3 x High-Resolution Track Balls
• 12 Primary Correction-Control Knobs
• 18 Navigation and Transport Keys
• USB Type-C Interface

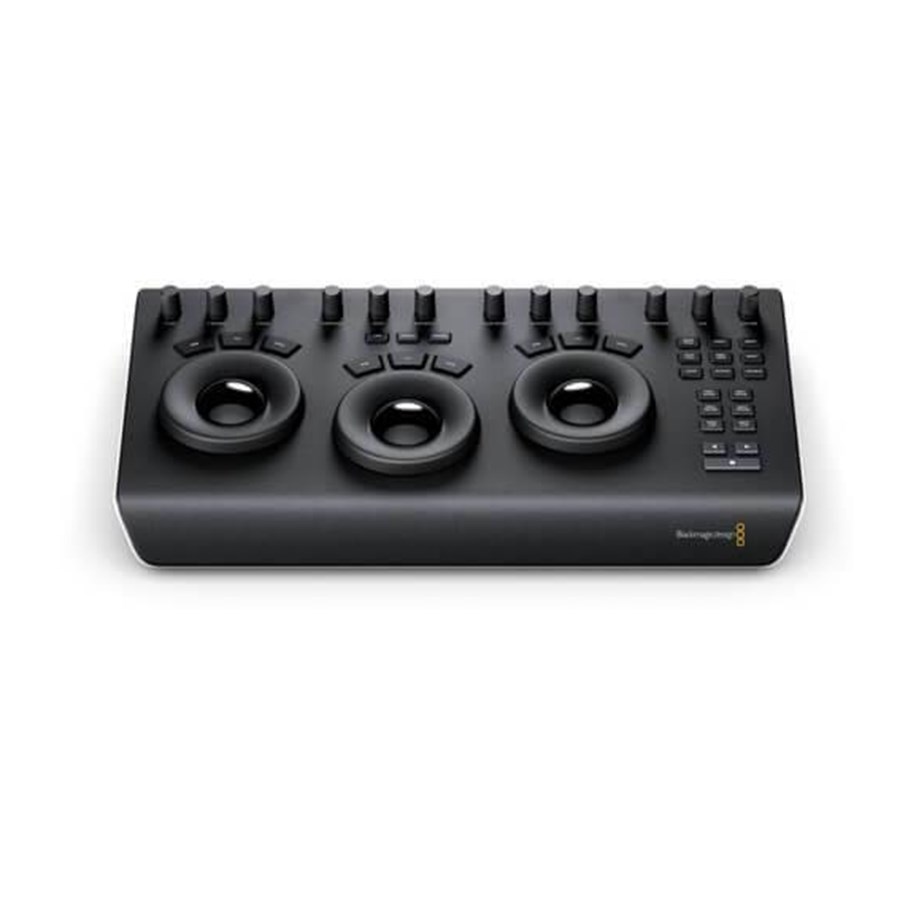

The DaVinci Resolve Micro Panel from Blackmagic Design is a portable control surface that provides more control and a faster workflow to DaVinci Resolve software than working with a keyboard and mouse alone. Suitable for editors and colorists that need a portable control surface. It features three high-resolution, weighted trackballs and 12 control knobs for accessing essential primary color-correction tools in the Resolve software. Eighteen dedicated keys on the right side also give you access to the most commonly used grading features and playback controls.
The Micro Panel uses a USB 3.0 Type-C interface that allows you to connect to a computer or laptop and power the panel, alleviating the need for a separate power supply. It also interfaces with Mac, Windows, or select Linux systems. For the panel to work with Resolve, your computer must be running DaVinci Resolve 14.3 or DaVinci Resolve Studio 14.3 or later. An included USB 3.0 Type-A to USB Type-C cable provides backward compatibility for systems that have USB 3.0 Type-A ports.
Control knobs are grouped into four sets of three knobs
Luminance
Y lift Control: Adjust the contrast of the image in the darker areas, specifically in the Y (luminance) channel only. This adjustment allows changing the black point without changing saturation.
Y Gamma Control: Adjust the contrast of the image in the mid-tone areas, specifically in the Y (luminance) channel only. This control helps add depth and extra vibrancy to shots.
Contrast
Contrast Control: Increase contrast to make the blacks darker and the whites brighter, or decrease contrast to do the opposite.
Pivot: Change the center of tonality about which dark and bright parts of the image are stretched or narrowed during a contrast adjustment.
Mid-Tone Detail: Affect the contrast of regions of the image with high edge detail to increase or decrease the perception of image sharpness and definition. Often used for softening facial features making it popular for beauty shots.
Detail
Color Boost Control: Raise the saturation in regions of the image with low saturation while leaving properly saturated areas alone. Also known as a vibrance operation, this is useful for adding color without over saturating the image.
Shadow Control: Selectively lighten or darken shadow detail without affecting your images mid-tones.
Highlight Control: Enable retrieving blown out highlight detail in high dynamic range media by lowering this parameter. This allows you to achieve a smooth blend between the retrieved highlights and unadjusted mid tones for a natural-looking image.
Saturation
Increases or decreases overall image saturation, you can turn your color image into a grayscale image with this control.
Hue Control: Rotate all hues of the image around 360° of the color wheel. The default setting is 50, which retains the original distribution of hues.
Luminance Mix Control: Control the balance between the YRGB adjustments and Y only adjustments made using the Y channel lift, gamma, and gain controls.
Technical data:
Minimum Requirements Software
DaVinci Resolve 14.3 or DaVinci Resolve Studio 14.3 or later
Blackmagic Design Desktop 10.4.1
OS
macOS/OS X: 10.10.5 Yosemite or later
Windows: 8.1 Pro 64-bit or later
Linux: CentOS 6.4, Red Hat Enterprise 6.8 and 7.3
RAM: 8 GB min, 16 GB recommended (16/32 GB Linux)
Material of Construction Die-cast and machined aluminum
Interface USB 3.0 Type-C
Dimensions 2.95 x 10.16 x 16.83" / 7.50 x 25.80 x 42.75 cm
Weight 7.71 lb / 3.50 kg
