StarTech.com Universal Dock for 2.5/35in SATA & IDE HDD
USB 3.0 Dock for 2.5"/3.5" HDDs/SSDs with UASP (UNIDOCKU33), Diskkontroller, 2.5", 3.5", ATA / SATA 6Gb/s, 6 Gbit, USB 3.0, svart, for P/N: SVA12M5NA
1 117,00 kr
893,60 kr eksl. mva
Gratis frakt (privatkunde)
Fjernlager, 4-6 dager til forsendelse
UTVIDET JULERETURRETT
FRAM TIL 31. JANUAR 2025
Proshop tilbyr utvidet Juleretur til privatkunder på ordre kjøpt i perioden 1. november til 23. desember 2024. Les betingelsene her.
For å få levert varene dine før jul, må du bestille innen 17. desember kl. 14. Dette gjelder for postnummer 0 til 3999, varene må være på lager og leveres av PostNord. Bor du på et postnummer høyere enn 3999, må du bestille innen 16. desember kl. 14.

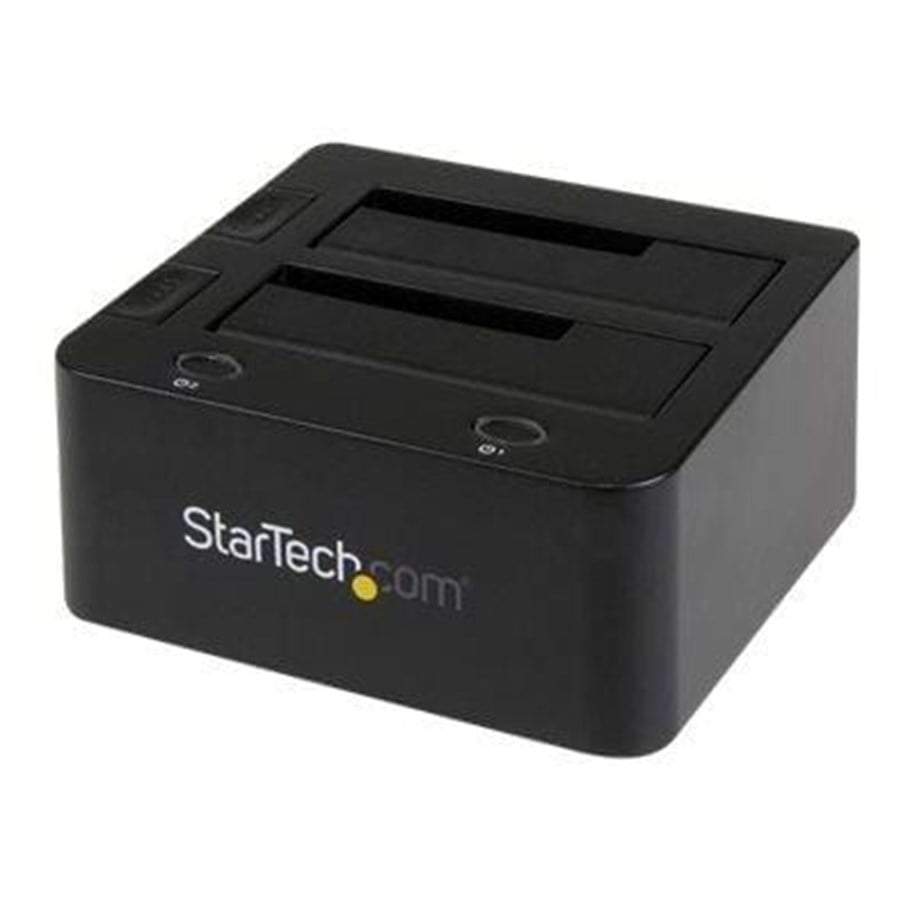

Connect both an IDE and a SATA 2.5/3.5in hard drive or solid state drive to your computer system using an available USB 3.0 port, with support for UASP for optimal performance. The UNIDOCKU33 USB 3.0 Universal HDD / SSD Dock enables you to instantly access your 2.5 or 3.5in IDE and SATA hard drives through two top loading drive slots, saving you the hassle of mounting the drives into a computer or external enclosure or tray.
Enhanced with UASP (USB Attached SCSI Protocol), this hard drive docking station lets you get the most out of the fastest drive technologies such as SATA III (6 Gbps), solid state drives (SSD) and hybrid, drives with performance up to 70% faster than conventional USB 3.0 when paired with a UASP-enabled host controller.
The slot-loading design holds the SATA and IDE drives upright inside the docks, neatly keeping them off the desk, for convenience and a clutter-free setup. For SATA drives, the HDD can be inserted and connected directly through the designated dock slot, while the IDE drive slot is conveniently positioned near the rear panel 40-pin data and LP4 power connections, making it easy to connect to the dock using the included IDE data and power cables.
A single USB 3.0 connection to your host computer, enables access to both the IDE & SATA hard drives simultaneously - a convenient solution for migrating data from an IDE drive to a SATA drive or vice versa. The dock can also be used to greatly increase the storage and backup capabilities of your computer system with support for high capacity drives (tested with up to 6TB 3.5" and 2TB 2.5" drives).
UASP is supported in Windows 8, Mac OSX (10.8 or above), and Linux. In testing, UASP performs with a 70% faster read speed and 40% faster write speed over traditional USB 3.0 at peak performance.
At the same peak in testing UASP also shows an 80% reduction in required processor resources.
Testing results were obtained using an Intel Ivy Bridge system, a UASP-enabled StarTech.com Enclosure, and a SATA III solid state drive.
Enhanced with UASP (USB Attached SCSI Protocol), this hard drive docking station lets you get the most out of the fastest drive technologies such as SATA III (6 Gbps), solid state drives (SSD) and hybrid, drives with performance up to 70% faster than conventional USB 3.0 when paired with a UASP-enabled host controller.
The slot-loading design holds the SATA and IDE drives upright inside the docks, neatly keeping them off the desk, for convenience and a clutter-free setup. For SATA drives, the HDD can be inserted and connected directly through the designated dock slot, while the IDE drive slot is conveniently positioned near the rear panel 40-pin data and LP4 power connections, making it easy to connect to the dock using the included IDE data and power cables.
A single USB 3.0 connection to your host computer, enables access to both the IDE & SATA hard drives simultaneously - a convenient solution for migrating data from an IDE drive to a SATA drive or vice versa. The dock can also be used to greatly increase the storage and backup capabilities of your computer system with support for high capacity drives (tested with up to 6TB 3.5" and 2TB 2.5" drives).
UASP is supported in Windows 8, Mac OSX (10.8 or above), and Linux. In testing, UASP performs with a 70% faster read speed and 40% faster write speed over traditional USB 3.0 at peak performance.
At the same peak in testing UASP also shows an 80% reduction in required processor resources.
Testing results were obtained using an Intel Ivy Bridge system, a UASP-enabled StarTech.com Enclosure, and a SATA III solid state drive.
Produsent
Varenummer
2476386
Model
UNIDOCKU33
Ean
0065030859813
Til produsentens hjemmeside
Produktbeskrivelse
StarTech.com Dual-Bay USB 3.0 to SATA and IDE Hard Drive Docking Station, USB Hard Drive Dock, External 2.53.5 SATA III and IDE (40 pin) SSDHDD Docking Station, Hot-Swap Hard Drive Bays - Top-Loading - Diskkontroller - ATA / SATA 6Gb/s - USB 3.0
Enhetstype
Diskkontroller - ekstern
Busstype
USB 3.0
Farge
Svart
Ekspansjonsbrønner
1 x hot-swap - 2,5" / 3,5" delt
1 x topptilgang - 2,5" / 3,5" delt
1 x topptilgang - 2,5" / 3,5" delt
Harddiskformfaktorkompatibilitet
2.5", 3.5"
Grensesnitt
ATA / SATA 6Gb/s
Dataoverføringshastighet
6 Gbit
Støttede enheter
Harddisk, faststoffstasjon
Maks. antall lagringsenheter
2
Produktmateriale
Plastikk
Strømforsyning
AC 120/230 V
Systemkrav
Linux, Apple MacOS X 10.6, Microsoft Windows Vista (32/64 bits), Microsoft Windows 7 (32/64 bits), Microsoft Windows XP (32/64 bits), Microsoft Windows Server 2008 (32/64-bits), Microsoft Windows Server 2003 (32/64-bits), Google Chrome OS, Apple MacOS X Lion 10.7, Apple OS X 10.8 Mountain Lion, Windows 8 (32/64 bits), Windows 8.1 (32/64 bits), Apple OS X 10.9 Mavericks
Dimensjoner (BxDxH)
14 cm x 13 cm x 7 cm
Vekt
610 g
Fabrikantgaranti
2 års garanti
Designet for
P/N: SVA12M5NA
Generelt
Enhetstype
Diskkontroller - ekstern
Harddiskformfaktorkompatibilitet
2.5", 3.5"
Vertsbuss
USB 3.0
Produktmateriale
Plastikk
Farge
Svart
Diskkontroller
Grensesnitt
ATA / SATA 6Gb/s
Dataoverføringshastighet
6 Gbit
Støttede enheter
Harddisk, faststoffstasjon
Maks. antall lagringsenheter
2
Prosessor
JMicron JMS561U / JMD330
Ekspansjon / Tilkoplinger
Brønner
1 x hot-swap - 2,5" / 3,5" delt
1 x topptilgang - 2,5" / 3,5" delt
1 x topptilgang - 2,5" / 3,5" delt
Grensesnitt
1 x SATA 6Gb/s - SATA-kombo (intern (brønn1))
1 x ATA-133 - 40 pin IDC (bak)
1 x ATA-133 - 40 pin IDC (bak)
Koblinger
1 x USB 3.0 - 9 pin USB Type B
Diverse
Medfølgende kabler
1 x USB 3.0-kabel - ekstern
2 x IDE-kabel - ekstern
2 x IDE-kabel - ekstern
Egenskaper
LED-indikator, testet på 2,5"-harddisker på inntil 1TB med 5400 RPM, tested med inntil 6 TB 7200 RPM-harddiskstasjoner, UASP-overføringsprotokoll
MTBF
30,000 timer
Tilpassede standarder
Plug and Play, FCC, RoHS
Strømforsyning
Type
Strømadapter
Påkrevd nettspenning
AC 120/230 V
Programvare / Systemkrav
OS påkrevd
Linux, Apple MacOS X 10.6, Microsoft Windows Vista (32/64 bits), Microsoft Windows 7 (32/64 bits), Microsoft Windows XP (32/64 bits), Microsoft Windows Server 2008 (32/64-bits), Microsoft Windows Server 2003 (32/64-bits), Google Chrome OS, Apple MacOS X Lion 10.7, Apple OS X 10.8 Mountain Lion, Windows 8 (32/64 bits), Windows 8.1 (32/64 bits), Apple OS X 10.9 Mavericks
Størrelser og vekt
Bredde
14 cm
Dybde
13 cm
Høyde
7 cm
Vekt
610 g
Miljøparametere
Min. driftstemperatur
5 °C
Maks. Driftstemperatur
80 °C
Driftsfuktighet
8 - 90%
