Hovedkort - ASUS PRIME B760M-A D4-CSM Hovedkort - Intel B760 - Intel LGA1700 socket - DDR4 RAM - Micro-ATX - 90MB1D00-M0EAYC
Varenummer: 3217916
90MB1D00-M0EAYC
90MB1D00-M0EAYC
90MB1D00-M0EAYC
90MB1D00-M0EAYC
90MB1D00-M0EAYC
90MB1D00-M0EAYC

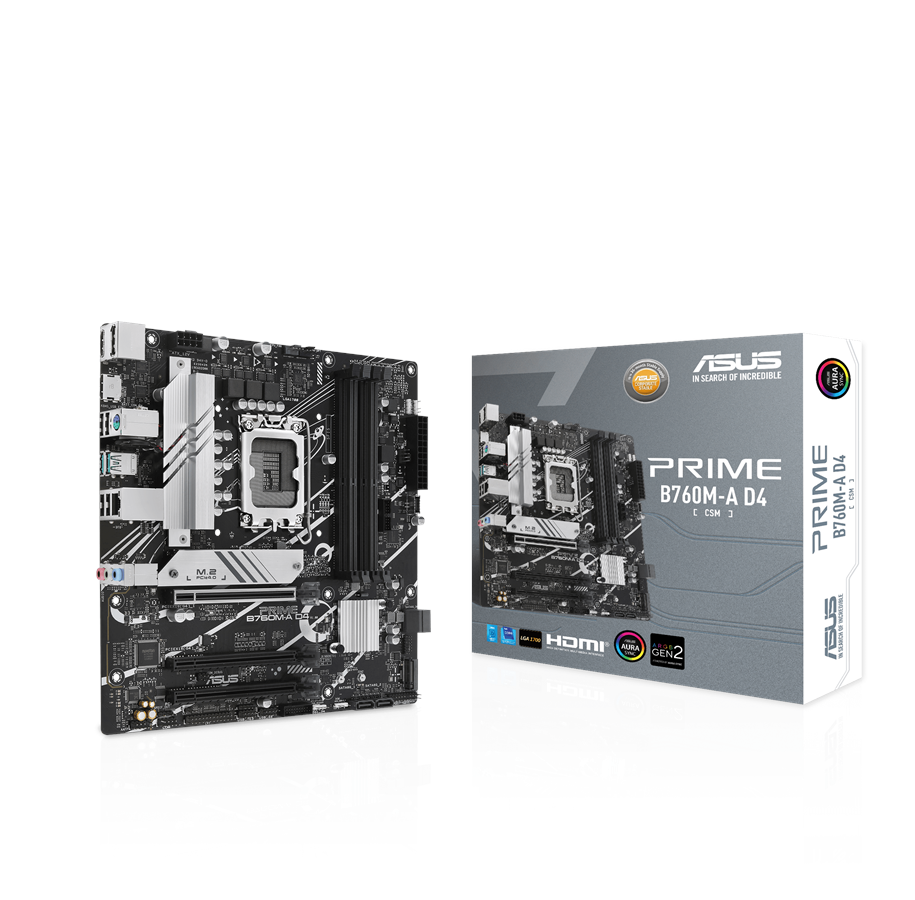

ASUS PRIME B760M-A D4-CSM Hovedkort - Intel B760 - Intel LGA1700 socket - DDR4 RAM - Micro-ATX

Hovedkort, størrelse: Micro-ATX, Intel LGA1700 socket, Intel B760 chipset, 1 x PCI-Express 4.0 x16, Dual DDR4-3200 4 x DIMM slots (Intel XMP support), lagerporter: 4 x SATA-600 / 2 x M.2 NVMe PCI-Express 4.0 (M.2 size: 2242 / 2260 / 2280), USB 3.2 Gen 2x2 type A, skjermtilkobling: 1 x Displayport 1.4 / 2 x HDMI 2.1, Realtek 8125BG 2.5 Gigabit nettverk (LAN), Intel Xe Graphics støttes (Krever CPU med VGA), Realtek HD Audio (8-kanaler) lydkort, ASUS AURA Sync software

1 563,00 kr 1 250,40 kr eksl. mva
Gratis frakt (privatkunde)
Bestillingsvare, 7-9 dager til forsendelse

The ASUS PRIME B760M-A D4-CSM motherboard is designed to cater to the needs of both gaming enthusiasts and professional users. It supports 12th and 13th Generation Intel Core, Pentium Gold, and Celeron processors on the LGA1700 socket, offering a powerful foundation for your next PC build. With support for DDR4 SDRAM at speeds up to 5333 MHz (O.C.) across 4 DIMM slots, it provides ample capacity for memory-intensive applications and multitasking.This motherboard is equipped with a comprehensive cooling setup, including ASUS Fan Xpert 2+ and a VRM heatsink design, ensuring that your system remains cool and stable under load. The dual M.2 sockets and 4 x SATA-600 (RAID) storage interfaces allow for fast data transfer and flexible storage options, including RAID configurations for enhanced data integrity and speed. Networking is handled by a 2.5 Gigabit Ethernet port, offering a significant upgrade over standard Gigabit connections for faster, more reliable network performance.For those looking to personalize their setup, ASUS Aura Sync provides a vast ecosystem of compatible devices for synchronized RGB lighting effects across your entire gaming environment. The motherboard's durability is bolstered by ASUS 5X Protection III, including overvoltage protection and a stainless steel back I/O, ensuring long-term reliability and stability. Whether you're building a high-performance gaming rig or a powerful workstation, the ASUS PRIME B760M-A D4-CSM offers a solid foundation with a balance of features and performance.

Produsent
Varenummer
3217916
Model
90MB1D00-M0EAYC
Ean
4711081984061
Til produsentens hjemmeside
Produktbeskrivelse
ASUS PRIME B760M-A D4-CSM - hovedkort - micro ATX - LGA1700-sokkel - B760
Produkttype
Hovedkort - micro ATX
Brikkesett type
Intel B760
Prosessorsokkel
1 x LGA1700-sokkel
Kompatible prosessorer
(støtter 12.- og 13.-generasjons Intel Core / Pentium Gold / Celeron)
Maks. RAM-størrelse
128 GB
Støttet RAM
4 DIMM-spor - DDR4, ikke-ECC, ikke-bufret
Lagerporter
4 x SATA-600 (RAID), 2 x M.2
USB/FireWire-porter
2 x USB 3.2 Gen 2 + 4 x USB 2.0 + (1 x USB-C Gen 1 + 4 x USB 3.2 Gen 1 + 5 x USB 2.0 via headere)
Lyd
HD-lyd (8-kanalers)
LAN
2.5 Gigabit Ethernet

Generelt

Produkttype
Hovedkort - micro ATX
Brikkesett type
Intel B760
Prosessorsokkel
LGA1700-sokkel
Maks antall prosessorer
1
Kompatible prosessorer
(støtter 12.- og 13.-generasjons Intel Core / Pentium Gold / Celeron)

Støttet RAM

Maks størrelse
128 GB
Teknologi
DDR4
Bussklokke
2400 MHz, 2133 MHz, 2800 MHz, 3000 MHz, 2666 MHz, 2933 MHz, 3400 MHz (O.C.), 3333 MHz (O.C.), 3466 MHz (O.C.), 3733 MHz (O.C.), 3600 MHz (O.C.), 4000 MHz (O.C.), 4400 MHz (O.C.), 4266 MHz (O.C.), 4600 MHz (O.C.), 4800 MHz (O.C.), 3200 MHz, 5000 MHz (O.C.), 5066 MHz (O.C.), 5333 MHz (O.C.)
Støttet RAM-integritetskontroll
Ikke-ECC
Registrert eller bufret
Ikke-bufret
Egenskaper
Dobbeltkanalsminnearkitektur, Intel Extreme Memory Profiles (XMP)

Lyd

Type
HD-lyd (8-kanalers)
Tilpassede standarder
High Definition Audio

LAN

Nettverksgrensesnitt
2.5 Gigabit Ethernet

Ekspansjon / Tilkoplinger

Utvidelsesspor
1 x CPU
4 x 288-pins DIMM
1 x PCIe 4.0 x16
1 x PCIe 4.0 x16 (x4-modus)
1 x PCIe 4.0 x16 (x1-modus)
2 x M.2 socket (2242/2260/2280 M.2 Key M-spor)
Lagergrensesnitt
SATA-600 -kontakter: 4 x 7-pin seriell ATA - RAID 0 / RAID 1 / RAID 10 / RAID 5
PCIe 4.0 -kontakter: 2 x M.2
Grensesnitt
2 x HDMI
1 x DisplayPort
2 x USB 3.2 Gen 2
4 x USB 2.0
1 x LAN (2.5Gigabit Ethernet)
1 x PS/2-tastatur / -mus
1 x mikrofon - minijakk
1 x lydinnlinje - minijakk
1 x lydutlinje - minijakk
Interne overflater
5 x USB 2.0 - header
1 x USB-C 3.2 Gen 1 - header
4 x USB 3.2 Gen 1 - header
1 x seriell - header
1 x SPI - header
1 x SPDIF-utgang - header
1 x lyd - header
Strømkontakter
24-pin hovedstrømforsyningskontakt, 8-pin ATX12V-kontakt

Egenskaper

BIOS Type
AMI
BIOS-egenskaper
UEFI BIOS, ASUS EZ Flash 3, ASUS UEFI BIOS EZ Mode
Sov/Våkne
Wake on LAN (WOL), våkne ved PME
Maskinvarefunksjoner
ASUS Q-Design, Q-DIMM, ASUS EZ DIY, Q-Slot, CrashFree BIOS 3, Intel Turbo Boost Technology 2.0, ASUS DIGI+ VRM, Preboot eXecution Environment (PXE), ASUS Stainless Steel Back I/O, ASUS Fan Xpert 2+, LANGuard, ASUS Overvoltage Protection, ASUS 5X Protection III, ASUS ProCool, Intel Turbo Boost Max Technology 3.0, ASUS Aura Sync, ASUS OptiMem II, ASUS SafeSlot Core+, Q-LED Core, VRM-kjøledesign
