Hovedkort - ASUS PRO H610T-CSM Hovedkort - Intel H610 - Intel LGA1700 socket - DDR5 RAM - Thin Mini-ITX - 90MB1G60-M0EAYC
Varenummer: 3238095
90MB1G60-M0EAYC
90MB1G60-M0EAYC
90MB1G60-M0EAYC
90MB1G60-M0EAYC
90MB1G60-M0EAYC
90MB1G60-M0EAYC

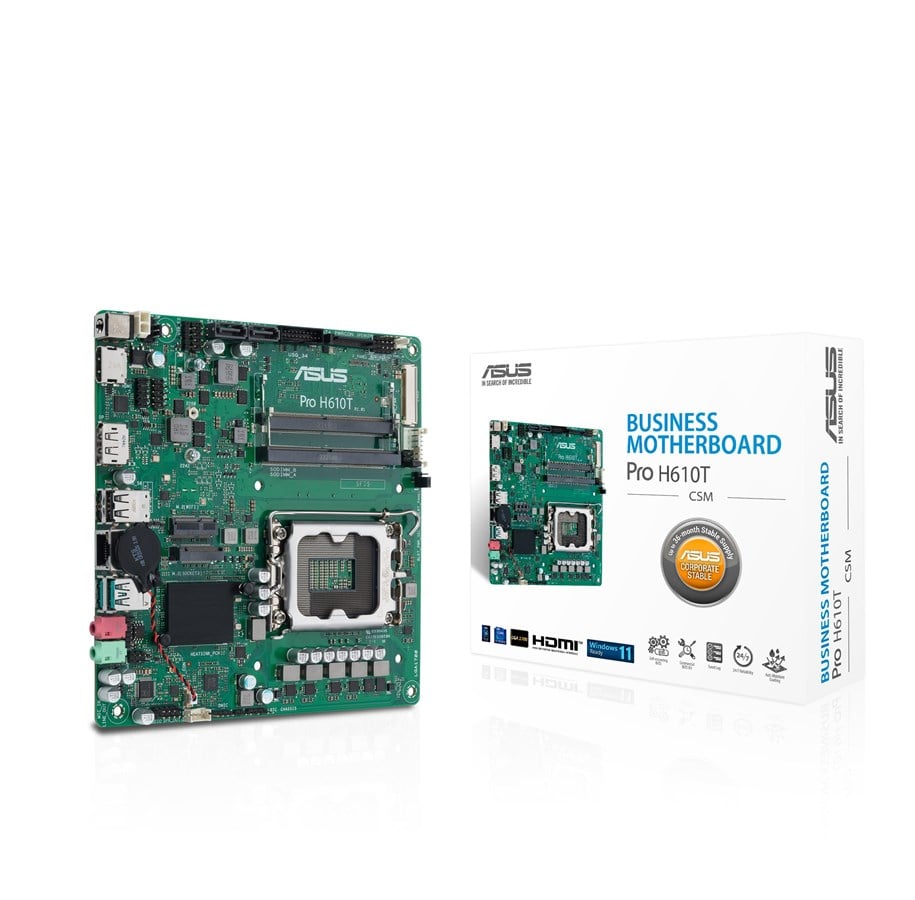

ASUS PRO H610T-CSM Hovedkort - Intel H610 - Intel LGA1700 socket - DDR5 RAM - Thin Mini-ITX

Hovedkort, størrelse: Thin Mini-ITX, Intel LGA1700 socket, Intel H610 chipset, Dual SODIMM DDR5-5600 2 x DIMM slots (Intel XMP support), lagerporter: 2 x SATA-600 / 1 x M.2 NVMe PCI-Express 3.0 (M.2 size: 2242 / 2260 / 2280), USB 3.2 Gen 2 type A, skjermtilkobling: 1 x Displayport 1.4 / 1 x HDMI 2.1, Realtek RTL8111H 1 Gigabit nettverk (LAN), Intel Xe Graphics støttes (Krever CPU med VGA), Realtek HD Audio (8-kanaler)

1 833,00 kr 1 466,40 kr eksl. mva
Gratis frakt (privatkunde)
Fjernlager, 4-6 dager til forsendelse

The ASUS Pro H610T-CSM motherboard combines performance, connectivity, and audio quality into a compact mini ITX form factor, making it an ideal choice for both gaming enthusiasts and professional users. With support for 12th and 13th Generation Intel Core processors, users can expect advanced performance for any task. The inclusion of DDR5 SDRAM compatibility means faster memory speeds and improved efficiency, essential for demanding applications and multitasking.For connectivity, the motherboard boasts a range of options including HDMI, DisplayPort, and USB 3.2 Gen 2 ports, ensuring that users can connect a wide variety of devices without hassle. The high definition audio and built-in sound card offer an enhanced audio experience, perfect for immersive gaming or enjoying media. Additionally, with advanced storage options like M.2 sockets and Serial ATA-600 interfaces, users have the flexibility to expand their storage to meet their needs. Whether building a powerful gaming rig or a compact workstation, the ASUS Pro H610T-CSM motherboard delivers on performance, flexibility, and quality.

Produsent
Varenummer
3238095
Model
90MB1G60-M0EAYC
Ean
4711387304020
Til produsentens hjemmeside
Produktbeskrivelse
ASUS Pro H610T-CSM - hovedkort - mini-ITX - LGA1700-sokkel - H610
Produkttype
Hovedkort - mini-ITX
Brikkesett type
Intel H610
Prosessorsokkel
1 x LGA1700-sokkel
Kompatible prosessorer
(støtter 12.- og 13.-generasjons Intel Core / Pentium Gold / Celeron)
Maks. RAM-størrelse
64 GB
Støttet RAM
2 SO DIMM-spor - DDR5, ikke-ECC, ikke-bufret
Lagerporter
2 x SATA-600, 1 x M.2
USB/FireWire-porter
2 x USB 3.2 Gen 2 + 2 x USB 2.0 + (2 x USB 3.2 Gen 1 + 5 x USB 2.0 via headere)
Lyd
HD-lyd (8-kanalers)
LAN
Gigabit Ethernet

Generelt

Produkttype
Hovedkort - mini-ITX
Brikkesett type
Intel H610
Prosessorsokkel
LGA1700-sokkel
Maks antall prosessorer
1
Kompatible prosessorer
(støtter 12.- og 13.-generasjons Intel Core / Pentium Gold / Celeron)

Støttet RAM

Maks størrelse
64 GB
Teknologi
DDR5
Bussklokke
5600 MHz
Støttet RAM-integritetskontroll
Ikke-ECC
Registrert eller bufret
Ikke-bufret
Egenskaper
Dobbeltkanalsminnearkitektur

Lyd

Type
HD-lyd (8-kanalers)
Tilpassede standarder
High Definition Audio

LAN

Nettverksgrensesnitt
Gigabit Ethernet

Ekspansjon / Tilkoplinger

Utvidelsesspor
1 x CPU
2 x 260-pins SO-DIMM
1 x M.2 socket (2230 M.2 Key E-spor)
1 x M.2 socket (for trådløs modul)
Lagergrensesnitt
SATA-600 -kontakter: 2 x 7-pin seriell ATA
SATA-600 / PCIe 4.0 -kontakter: 1 x M.2
Grensesnitt
1 x HDMI
1 x DisplayPort
2 x USB 3.2 Gen 2
2 x USB 2.0
1 x lydutlinje - minijakk
1 x mikrofon - minijakk
1 x LAN (Gigabit Ethernet)
Interne overflater
5 x USB 2.0 - header
2 x USB 3.2 Gen 1 - header
1 x lyd - header
1 x seriell - header
1 x høyttaler - header
1 x LVDS - header
1 x SPI - header
Strømkontakter
2-pin strømkontakt, strømkontakt for DC-inngang

Egenskaper

BIOS Type
AMI
BIOS-egenskaper
UEFI BIOS
Sov/Våkne
Wake on LAN (WOL), våkne ved PME
Maskinvarefunksjoner
Q-LED, Intel Turbo Boost Technology 2.0, Preboot eXecution Environment (PXE), LANGuard, Intel Turbo Boost Max Technology 3.0

Diverse

Tilleggsutstyr inkludert
ACC Express Activation Key Card, 2 x IO-skjold
Medfølgende kabler
2 x Seriell ATA-kabel
1 x Serial ATA-strømkabel
Inkludert programvare
Drivers & Utilities
Bredde
17 cm
Dybde
17 cm
Høyde
3.2 cm
Vekt
311.5 g

Ovenstående informasjon/spesifikasjoner er veiledende og kan uten varsel bli endret av produsenten. Det tas forbehold om trykkfeil og illustrerende bilder. Enkelte tekster kan være autogenerert eller maskinoversatt, så derfor kan det forekomme tekster som virker misvisende.
