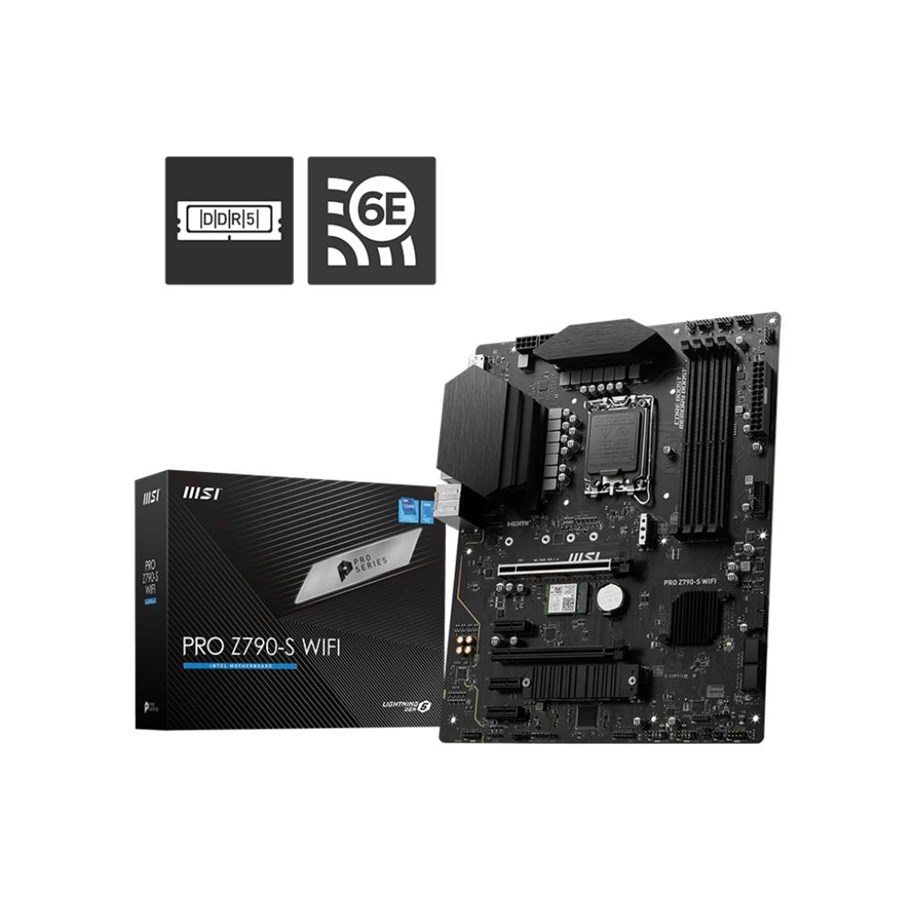

MSI PRO Z790-S WIFI Hovedkort - Intel Z790 - Intel LGA1700 socket - DDR5 RAM - ATX
Hovedkort, størrelse: ATX, Intel LGA1700 socket, Intel Z790 chipset, 1 x PCI-Express 5.0 x16, Dual DDR5-5600 4 x DIMM slots (Intel XMP support), lagerporter: 4 x SATA-600 / 2 x M.2 NVMe PCI-Express 4.0 (M.2 size: 2242 / 2260 / 2280), USB 3.2 Gen 2x2 type A & C, skjermtilkobling: 1 x Displayport 1.4 / 1 x HDMI 1.4, Realtek 8125BG 2.5 Gigabit nettverk (LAN), Intel WiFi 6E & Bluetooth 5.3, Intel Xe Graphics støttes (Krever CPU med VGA), Realtek ALC897 HD Audio (8-kanaler)
På lager
2 246,00 kr
1 796,80 kr eksl. mva
Gratis frakt (privatkunde)
2 stk.
På lager - 1-3 dager til levering
PRO Z790-S WIFI is designed with tons of flexible tools and convenient Wi-Fi solution with DDR5 memory version.
BUSINESS ELEGANCE
The PRO Series is tailored to professionals from all walks of life. The lineup features impressive performance and high quality, while aiming to provide users incredible experience. Users who care about productivity and efficiency can definitely count on the MSI PRO Series to assist you with multitasking and increasing efficiency.
Extended Heatsink
Extended Heatsink enlarges the surface of heat dissipation and maintain the performance at heavy loads.
M.2 Shield Frozr
Strengthened M.2 thermal solution helps keep M.2 SSD safe and ensures incredible performance.
Heavy Plated VRM Heatsink
The VRM heatsink covers the upper MOS and helps dissipate the heat.
7W/mK Thermal Pad & Additional Choke Pad
High-quality 7W/mK MOSFET thermal pads and additional choke thermal pads ensure stable performance when all cores are runnging at high speed.
Chipset Heatsink
The chipset heatsink is designed to reduce dust and noise and capable of maintaining high efficiency of heat dissipation.
LIGHTNING GEN 5 PCI-E
Doubling over the previous generation, the bandwidth of a x16 interface can reach 128GB/s.
SMT PCIE 5.0 SLOT
The advanced SMT(Surface Mount Technology) PCIE slot diminish interference and electrical noise, fully support the PCI-E 5.0 signal.
REINFORCED,
HEAVY SOLDERED CONNECTIONS
Secure to the motherboard with extra solder points and support the weight of heavy graphics cards.
BUSINESS ELEGANCE
The PRO Series is tailored to professionals from all walks of life. The lineup features impressive performance and high quality, while aiming to provide users incredible experience. Users who care about productivity and efficiency can definitely count on the MSI PRO Series to assist you with multitasking and increasing efficiency.
Extended Heatsink
Extended Heatsink enlarges the surface of heat dissipation and maintain the performance at heavy loads.
M.2 Shield Frozr
Strengthened M.2 thermal solution helps keep M.2 SSD safe and ensures incredible performance.
Heavy Plated VRM Heatsink
The VRM heatsink covers the upper MOS and helps dissipate the heat.
7W/mK Thermal Pad & Additional Choke Pad
High-quality 7W/mK MOSFET thermal pads and additional choke thermal pads ensure stable performance when all cores are runnging at high speed.
Chipset Heatsink
The chipset heatsink is designed to reduce dust and noise and capable of maintaining high efficiency of heat dissipation.
LIGHTNING GEN 5 PCI-E
Doubling over the previous generation, the bandwidth of a x16 interface can reach 128GB/s.
SMT PCIE 5.0 SLOT
The advanced SMT(Surface Mount Technology) PCIE slot diminish interference and electrical noise, fully support the PCI-E 5.0 signal.
REINFORCED,
HEAVY SOLDERED CONNECTIONS
Secure to the motherboard with extra solder points and support the weight of heavy graphics cards.
Produsent
Varenummer
3201903
Model
PRO Z790-S WIFI
Ean
4711377119603
Til produsentens hjemmeside
Produktbeskrivelse
MSI PRO Z790-S Wifi - hovedkort - ATX - LGA1700-sokkel - Z790
Produkttype
Hovedkort - ATX
Brikkesett type
Intel Z790
Prosessorsokkel
1 x LGA1700-sokkel
Kompatible prosessorer
(støtter 12./13. og 14. generasjon Intel Core / Pentium Gold / Celeron)
Maks. RAM-størrelse
192 GB
Støttet RAM
4 DIMM-spor - DDR5, ikke-ECC, ikke-bufret
Lagerporter
4 x SATA-600 (RAID), 2 x M.2
USB/FireWire-porter
1 x USB-C 3.2 Gen 2x2 + 2 x USB 3.2 Gen 1 + 2 x USB 2.0 + (4 x USB 3.2 Gen 1 + 4 x USB 2.0 via headere)
Lyd
HD-lyd (8-kanalers)
LAN
2.5 Gigabit Ethernet, Bluetooth 5.3, 802.11a/b/g/n/ac/ax (Wi-Fi 6E)
Generelt
Produkttype
Hovedkort - ATX
Brikkesett type
Intel Z790
Prosessorsokkel
LGA1700-sokkel
Maks antall prosessorer
1
Kompatible prosessorer
(støtter 12./13. og 14. generasjon Intel Core / Pentium Gold / Celeron)
Støttet RAM
Maks størrelse
192 GB
Teknologi
DDR5
Bussklokke
5800 MHz (O.C.), 6000 MHz (O.C.), 4800 MHz, 6200 MHz (O.C.), 6400 MHz (O.C.), 6600 MHz (O.C.), 5200 MHz, 5000 MHz, 5600 MHz, 5400 MHz
Støttet RAM-integritetskontroll
Ikke-ECC
Registrert eller bufret
Ikke-bufret
Egenskaper
Dobbeltkanalsminnearkitektur, Intel Extreme Memory Profiles (XMP) 3.0
Lyd
Type
HD-lyd (8-kanalers)
Audio Codec
Realtek ALC897
Tilpassede standarder
High Definition Audio
LAN
Nettverkskontroller
Realtek RTL8125BG
Nettverksgrensesnitt
2.5 Gigabit Ethernet, Bluetooth 5.3, 802.11a/b/g/n/ac/ax (Wi-Fi 6E)
Ekspansjon / Tilkoplinger
Utvidelsesspor
1 x CPU
4 x 288-pins DIMM
1 x PCIe 5.0 x16
1 x PCIe 3.0 x16
3 x PCIe 3.0 x1
1 x M.2 socket (2242/2260/2280/22110 M.2 Key M spor)
1 x M.2 socket (2242/2260/2280 M.2 Key M-spor)
1 x M.2 socket (Key E)
4 x 288-pins DIMM
1 x PCIe 5.0 x16
1 x PCIe 3.0 x16
3 x PCIe 3.0 x1
1 x M.2 socket (2242/2260/2280/22110 M.2 Key M spor)
1 x M.2 socket (2242/2260/2280 M.2 Key M-spor)
1 x M.2 socket (Key E)
Lagergrensesnitt
SATA-600 -kontakter: 4 x 7-pin seriell ATA - RAID 0 / RAID 1 / RAID 10 / RAID 5
PCIe 4.0 -kontakter: 1 x M.2
SATA-600 / PCIe 4.0 -kontakter: 1 x M.2
PCIe 4.0 -kontakter: 1 x M.2
SATA-600 / PCIe 4.0 -kontakter: 1 x M.2
Grensesnitt
1 x DisplayPort
1 x HDMI
1 x USB-C 3.2 Gen2x2
2 x USB 2.0
4 x USB 3.2 Gen 1
1 x LAN (2.5Gigabit Ethernet)
1 x lydutlinje - minijakk
1 x mikrofon - minijakk
1 x lydutlinje (senter/subbasshøyttaler) - minijakk
1 x lydutlinje (bakre) - minijakk
1 x lydinnlinje - minijakk
1 x SPDIF-utgang
1 x HDMI
1 x USB-C 3.2 Gen2x2
2 x USB 2.0
4 x USB 3.2 Gen 1
1 x LAN (2.5Gigabit Ethernet)
1 x lydutlinje - minijakk
1 x mikrofon - minijakk
1 x lydutlinje (senter/subbasshøyttaler) - minijakk
1 x lydutlinje (bakre) - minijakk
1 x lydinnlinje - minijakk
1 x SPDIF-utgang
Interne overflater
4 x USB 2.0 - header
4 x USB 3.2 Gen 1 - header
1 x lyd - header
4 x USB 3.2 Gen 1 - header
1 x lyd - header
Strømkontakter
24-pin hovedstrømforsyningskontakt, 2 x 8-pins ATX12 V-kontakter
Egenskaper
BIOS Type
AMI
BIOS-egenskaper
UEFI BIOS, ACPI 6,4 støtte, SMBIOS 3,5 støtte
Maskinvarefunksjoner
Digital PWM, 6 Layer PCB, MSI Mystic Light, M.2 Shield FROZR, Water Pump Header, 12+1+1 Phase Power Design, MSI Core Boost, MSI PCIe Steel Slot, Extended Heatsink Design, Surface Mount Technology (SMT), MSI Memory Boost, Frozr AI Cooling
