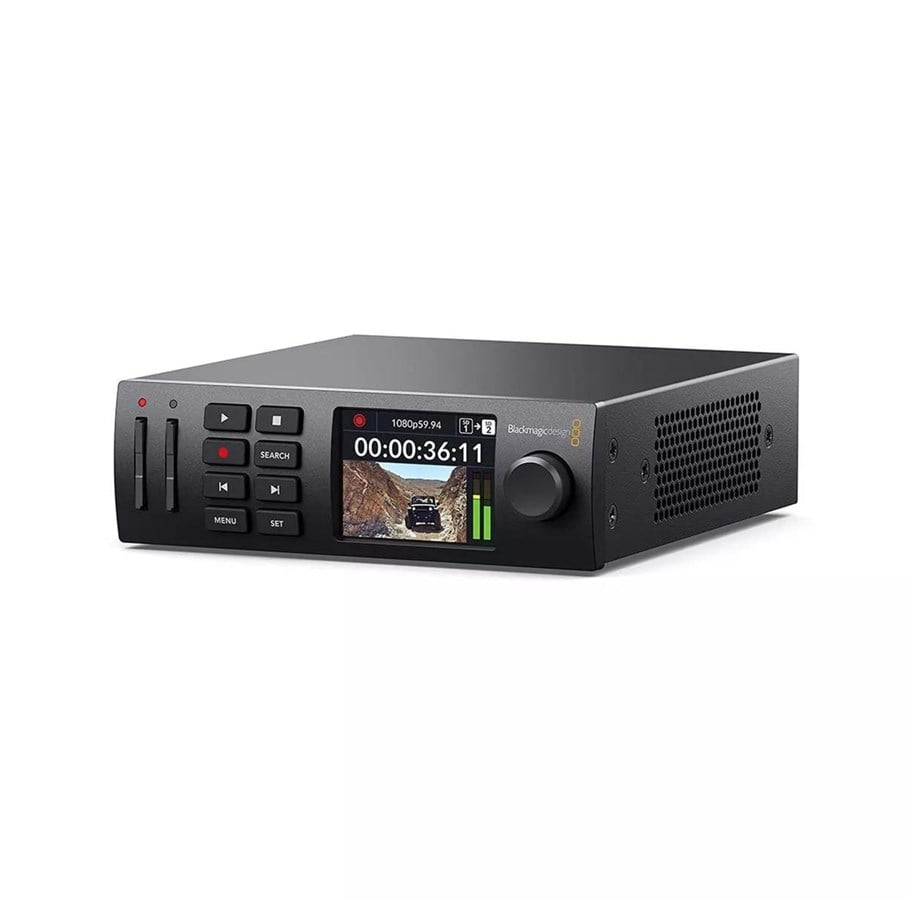

Blackmagic HyperDeck Studio HD Mini
Take a compact broadcast-quality record/playback deck with you on location, in the studio, or built into a rack with the Blackmagic Design HyperDeck Studio HD Mini. The 1 RU tall recorder is 1/3 of a rack wide and powers from 100 to 240 VAC, or via an optional 12 VDC power supply for portability. Featuring one 3G-SDI input, one each HDMI and 3G-SDI output, and a USB Type-C webcam output, the recorder is flexible, enabling you to input, record, and output/stream simultaneously. Supporting both reference and timecode in/out, this unit fits perfectly into a broadcast environment, and you can use one recorder to create an ISO recording of each camera with perfect sync for live and post-production work.
Two SD card slots allow you to capture with virtually unlimited recording time, and the unit also supports recording to USB disks via the USB Type-C output port. The HyperDeck Studio HD Mini features a front-panel button control and a jog/shuttle wheel for an analog scrubbing feel. RS-422 control is supported for external control, and you can also control the unit using either the USB port or over Ethernet at 1G speeds for faster deck control and file transfers via the RJ45 connector. An integrated LCD on the front panel allows you to monitor the video.
Video Input 1 x BNC, 3G-SDI
Video Output 1 x BNC, 3G-SDI
1 x HDMI Type A
1 x USB Type-C (Webcam or External Recording of SD, HD, 2K)
Timecode In: 1 x BNC
out: 1 x BNC
Reference Tri-Sync or Black Burst
Input Connector: 1 x BNC
Output Connector: 1 x BNC
Audio Input None (Embedded Audio Only, 16 Channels)
Audio Output None (Embedded Audio Only, 16 Channels SDI, 8 Channels HDMI)
Device Control 1 x RS-422 Deck Control Port on DB9 Female
Ethernet 1 x RJ45 for Remote Operation
Media Interface 2 x SD Slots
Media Type: UHS I and UHS II
Format: ExFAT or HFS+
Supported Resolutions 2K
2048 x 1080p: 30/29.97/25/24/23.98
HD
1920 x 1080p: 60/59.94/50/30/29.97/25/24/23.98
1920 x 1080i: 60/59.94/50
1280 x 720p: 60/59.94/50
SD
NTSC
PAL
SDI Compliance SMPTE 259M//292M/296M/372M/424M/425M Level A and B
SMPTE 2084
SMPTE 2108‑1
SDI Metadata Support HD RP188 and Closed Captioning CEA‑708
HDR Metadata Supported on SDI
Video Sampling 4:2:2 YUV
Color Depth 10-Bit
Color Space REC 601
REC 709
REC 2020
HDR Support Hybrid Log‑Gamma, ST2084 300, ST2084 500, ST2084 800, ST2084 1000, ST2084 2000, ST2084 4000, ST2084
Multi Rate Support Autodetection of SD and HD
Audio Sampling Television Standard 48 kHz, 24-Bit
Supported Codecs ProRes
HQ QuickTime
422 QuickTime
LT QuickTime
Proxy QuickTime for Formats up to 1080p60
DNxHD
220x
220x MXF
145
145 MXF
45
45 MXF for 720p and 1080p HD Formats up to 60 fps
H.264
SDI 4:2:2 10-Bit
High 4:2:0 8-Bit
Medium 4:2:0 8-Bit
Low 4:2:0 8-Bit for Progressive Formats up to 1080p60
Operating System macOS: 10.15(Catalina), 11.5 (Big Sur) or Later
Windows: 10 64-Bit
Rack Height 1 RU
Power Supply AC
100 to 240 VAC, 50/60 Hz
DC
12 VDC; 1 x Locking 5.5 mm Barrel
Operating Temperature 41 to 122°F / 5 to 50°C
Storage Temperature -4 to 113°F / -20 to 45°C
Relative Humidity 0 to 90% Non-Condensing
Dimensions 6.96 x 5.51 x 1.74" / 17.68 x 14 x 4.42 cm
Weight 1.8 lb / 0.82 kg
