Instrumenter - Elma Instruments Elma bm 821 multi meter with pc communication cat iv - 5706445410316
Varenummer: 2759890

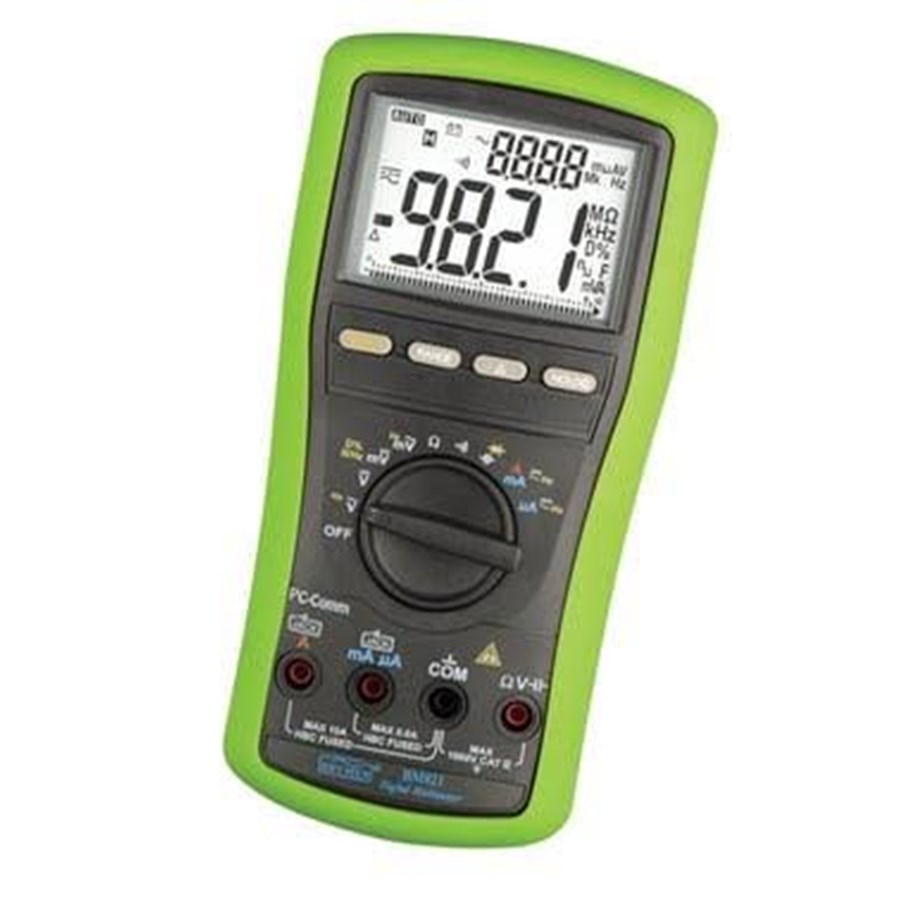

Elma Instruments Elma bm 821 multi meter with pc communication cat iv

Elma BM 821 is a new accurate and robust category IV 1000V multi meter, which, due the high safety is suitable for measurement in all of the installation. Elma BM 821 is equipped with a large bright 4 digits double display and fast analogue bar graph. The instrument is measuring voltage, current, frequency, resistance, capacity, diodes and continuity. Elma BM 821 has a lot of extra functions e.g. data hold, auto shut-off, automatically/manually range selection and RS232 port for PC-communication. With the PC-communication and the Windows software (orders separately), is it possible to make online data logging, where all the measured data can be viewed as: Digital display, analogue display, curve/graph and table. The instrument is UL listet, comply with IEC 61010-1 CAT IV 1000V and is equipped with high efficiency fuses with control function. Elma BM 821 is delivered incl. manual, battery, test leads and a robust rubber protection cover. Technical data:Voltage: 0-100m-1000m-10-100-1000V AC/DC Accuracy: DC: ± 0,08%+2D, AC: ± 0,5%+3D Current: 0-600-6000-60m-600m-6-10A AC/DC Accuracy: DC: ± 0,2% + 4D, AC: ± 0,6% + 3D Resistance: 0-600-6k-60k-600k-6M-60M (600V) Capacity: 0-60n-600n-6-60-600-6000-27mF Frequency: 10 - 100 kHz Diode test: 0-2000mV, 0,4mA < 3,5V DC Continuity test: < 10 acoustical signal Display: 4 og 3 5/6 digits Max. display: 9999 or 5999 Battery: 1x9V 6F22 (incl.) Size: 208 x 103 x 64,5 mm Weight: 635 g

Les mer
2 243,00 kr 1 794,40 kr eksl. mva
Gratis frakt (privatkunde)
Fjernlager, 2-4 dager til forsendelse
proshop-xmas-gran proshop-xmas-gran

UTVIDET JULERETURRETT FRAM TIL 31. JANUAR 2025

Proshop tilbyr utvidet Juleretur til privatkunder på ordre kjøpt i perioden 1. november til 23. desember 2024. Les betingelsene her.

Elma BM 821 Multimeter with PC Communication CAT IV Product Description: Elma BM 821 is a new accurate and robust category IV 1000V multimeter, which due to its high safety is suitable for measurement throughout the installation. Elma BM 821 features a large clear 4-digit dual display and fast analog bargraph. The instrument measures voltage, current, frequency, resistance, capacitance, diodes and continuity. Elma BM 821 has several additional functions including data hold, auto power off, automatic/manual range selection and RS232 port for PC communication. With PC communication and Windows software (ordered separately), it is possible to perform ON-Line data logging where the measured data can be displayed as: digital display, analog display curve/graph or table. The instrument is UL listed; complies with IEC61010-1 CAT IV1000V; equipped with high-efficiency fuses with control function. Elma BM 821 comes complete with Danish operating instructions manual; battery; test leads and robust rubber protective cover.TECHNICAL DATA Voltage:0-100m-1000m-10-100-1000V AC/DC Accuracy: DC ±0.08%+2D AC ±0.5%+3D Current:  AC/DC  (600A) Accuracy : DC ±(±2A)±1%, AC ±(±2A)±1% Resistance : (60MΩ)(600V) Capacitance :(27mF)(600V) Frequency:(10 - 100 kHz)Diode Test:(200mA)(3v)Continuity Test:<10ΩDisplay :4 digits &amp;amp;amp;amp;amp;&amp;amp;amp;nbsp;(9999 counts)&    &nbspmulti-line LCDMax Display Value: 9999Battery:1x9V 6F22 (included)Dimensions:208 x 103 x 64.5 mmWeight:635 gTechnical Specifications:Weight (kg):0.635Safety Classification :IEC61010-1 CAT IV1000VVoltage AC/DC :0-100m-1000m-10-100-1000V Frequency(kHz) :10 - 100 kHz

Produsent
Varenummer
2759890
Model
5706445410316
Ean
5706445410316
