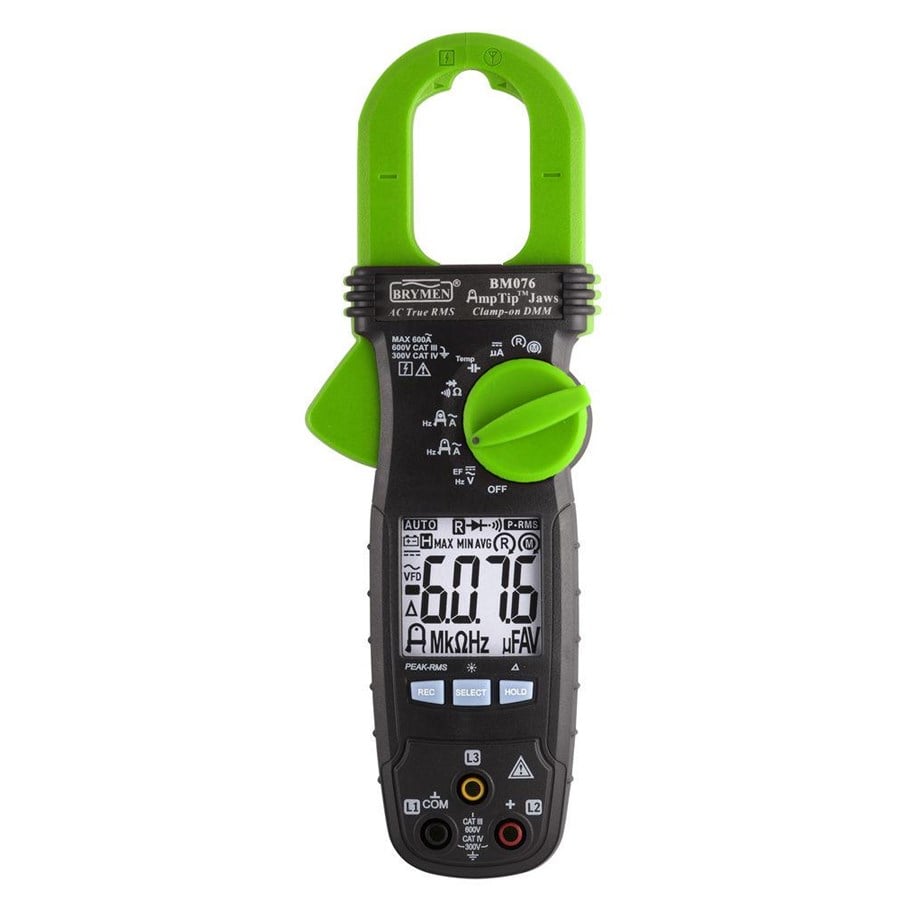

Elma Instruments Elma bm076 true rms clamp meter

Elma BM076 is a robust true RMS clamp meter, which is specially suitable for everybody who works with water, heat and ventilation. With this handy clamp meter is it possible to measure currents up to 600A and the multi meter function makes it possible to measure voltage, frequency, capacity, resistance and continuity. Furthermore the instrument is equipped with temperature measurement, together with a standard type-k probe, makes it possible to measure temperatures on many applications. As something quite new Elma BM076 has build-in 3-lead fase sequence and a smart motor rotation indicator, which is able to help with mounting motors properly. Another new function is VFD, which make the instrument able to measure true values of frequency and voltage after frequency converters. The AmpTip function makes it possible to measure currents from 0-60A with a great accuracy. Elma BM076 has a big backlighted display and is equipped with datahold, peak-hold, max/min/avg, relative function and voltage detector. Elma BM076 is UL listet and complies with IEC 61010-1 CAT IV 300V and III 600V and is delivered in a bag incl. temperature probe (-20 to 250°C), test leads, battery and manual. Technical data:Current with clamp: 0-60-600A ACResolution: 0,01-0,1AAccuracy: ±1,8% + 5DCurrent AmpTip: 0-60,00ACurrent through connections: 0-200-2000microA DCVoltage: 0-600.0V AC/DCFrequency: 5Hz–1000HzTemperature: -40...400°CCapacity: 0-200-2500FResistance: 0-600-6k-60kContinuity test: <100 acustical signalDisplay: 3 5/6 digitMax display: 5999Clamp size: 30mmBattery: 2x1,5V LR03 (incl.)Size: 222x76x37 mm
