Instrumenter - Fluke 374 fc - 4696001
Varenummer: 2769246

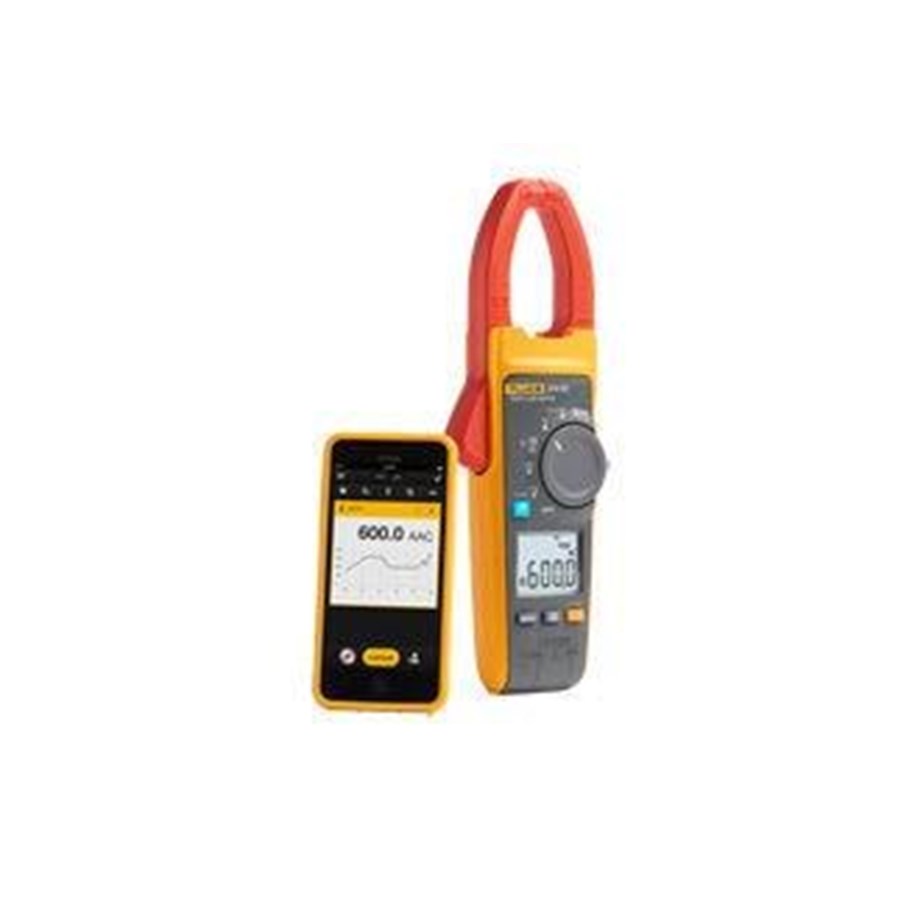

Fluke 374 fc

The Fluke 374 FC is part of the Fluke Connect family of wireless test tools. Now you can:Trend measurements and pinpoint intermittent faults by connecting your meter to your phone via Fluke Connect® Measurements appTransmit results wirelessly via Fluke Connect® Measurements appCreate and send reports right from the fieldStay safely away from the arc flash zone through Bluetooth connectivity to Apple and Android devicesThe Fluke 374 FC is the direct replacement for the Fluke 374 Clamp Meter.Connect your meter to your smartphone with Fluke Connect MeasurementsRead measurements on your phone at a safe distance, wearing less PPE while your meter takes all the risksRecord results directly to your phone and the CloudCreate and share reports from the field via email, or converse in real-time with ShareLiveTM video callsCompatible with iFlex flexible current probe, use to expand the measurement range to 2500 A ac, provides access to large conductors in tight spacesCompatible with TPAK magnetic hanging strapProprietary inrush measurement technology to filter out noise and capture motor starting current exactly as the circuit protection sees itCAT IV 600 V, CAT III 1000 V safety ratingMeasurement Capability600 A ac and dc current measurement2500 A ac current measurement with (optional) iFlex flexible current probe1000 V ac and dc voltage measurementTrue-rms voltage and current for accurate measurements on non-linear signalsResistance measurement to 6000 with continuity detectionMin, max, average, and inrush recording to capture variations automatically1000 F capacitance measurementFluke 374 FC True-rms AC/DC Clamp MeterIncludes:Soft carrying caseTL75 test leadsTwo AA Alkaline batteriesCoated instruction cardSafety information sheet

8 043,00 kr 6 434,40 kr eksl. mva
Gratis frakt (privatkunde)
Fjernlager, 2-4 dager til forsendelse

Fluke 374 FC Product Description: The Fluke 374 FC has advanced troubleshooting features and is part of the Fluke Connect series of wireless test tools. Connect your meter to your smartphone with Fluke Connect Measurements. Read measurements on your phone from a safe distance wearing less protective gear while your meter stays in the hazardous zone. Save results directly to the phone and cloud. Create and share reports from the field via email or real-time ShareLiveTM video calls. Compatible with flexible iFlex current probe, use it to extend measurement range up to 2,500 A AC, accessing large conductors in tight spaces. Compatible with TPAK magnetic hanging strap specially designed technology for measuring inrush current for noise filtering and motor starting current detection just as protection circuits are exposed.CAT IV 600 V, CAT III 1000 V safety classification.Fluker's sand RMS AC/DC clamp meter includes:Soft carrying caseTL75 test leadsTwo AA alkaline batteriesSurface-treated instruction cardSafety data sheet

Produsent
Varenummer
2769246
Model
4696001
Ean
0095969798532
Målekaterogi
CAT III 1000V, CAT IV 600V
Maksimal oppløsning for AC-strøm (sonde)
0,1 A
AC-spenning
1000 V
AC-spenningsoppløsning (min.)
0,1 V
DC-spenning
1000 V
DC-spenningsoppløsning (min.)
0,1 V
Motstand (min)
0,1 Ω
Motstand (maks)
6000 Ω
Batteriteknologi
Alkalinsk
Batteritype
AA
Antall støttede batterier
2
Produktfarge
Sort, Rød, Gult
Driftstemperatur (T-T)
-10 - 50 °C
Oppbevaringstemperaturomåde (Celsius)
-40 - 60 °C
Relativ luftfuktighet under drift (H-H)
0 - 90%
Driftshøyde
0 - 3000 m
Høyde når uvirksom
0 - 12000 m
Bredde
85 mm
Dybde
45 mm
Høyde
249 mm
Vekt
395 g
Bæretaske
Ja
Batterier medfølger
Ja
Test ledning lengde
Ja
Instruksjons ark
Ja

Ytelse

Målekaterogi
CAT III 1000V, CAT IV 600V
Maksimal oppløsning for AC-strøm (sonde)
0,1 A
AC-spenning
1000 V
AC-spenningsoppløsning (min.)
0,1 V
DC-spenning
1000 V
DC-spenningsoppløsning (min.)
0,1 V
Motstand (min)
0,1 Ω
Motstand (maks)
6000 Ω

Energihåndtering

Batteriteknologi
Alkalinsk
Batteritype
AA
Antall støttede batterier
2

Design

Produktfarge
Sort, Rød, Gult

Miljømessige forhold

Driftstemperatur (T-T)
-10 - 50 °C
Oppbevaringstemperaturomåde (Celsius)
-40 - 60 °C
Relativ luftfuktighet under drift (H-H)
0 - 90%
Driftshøyde
0 - 3000 m
Høyde når uvirksom
0 - 12000 m

Vekt og dimensjoner

Bredde
85 mm
Dybde
45 mm
Høyde
249 mm
Vekt
395 g

Emballasjeinnhold

Bæretaske
Ja
Batterier medfølger
Ja
Test ledning lengde
Ja
Instruksjons ark
Ja
