Instrumenter - Fluke t150 voltage tester - 4016977
Varenummer: 2749729

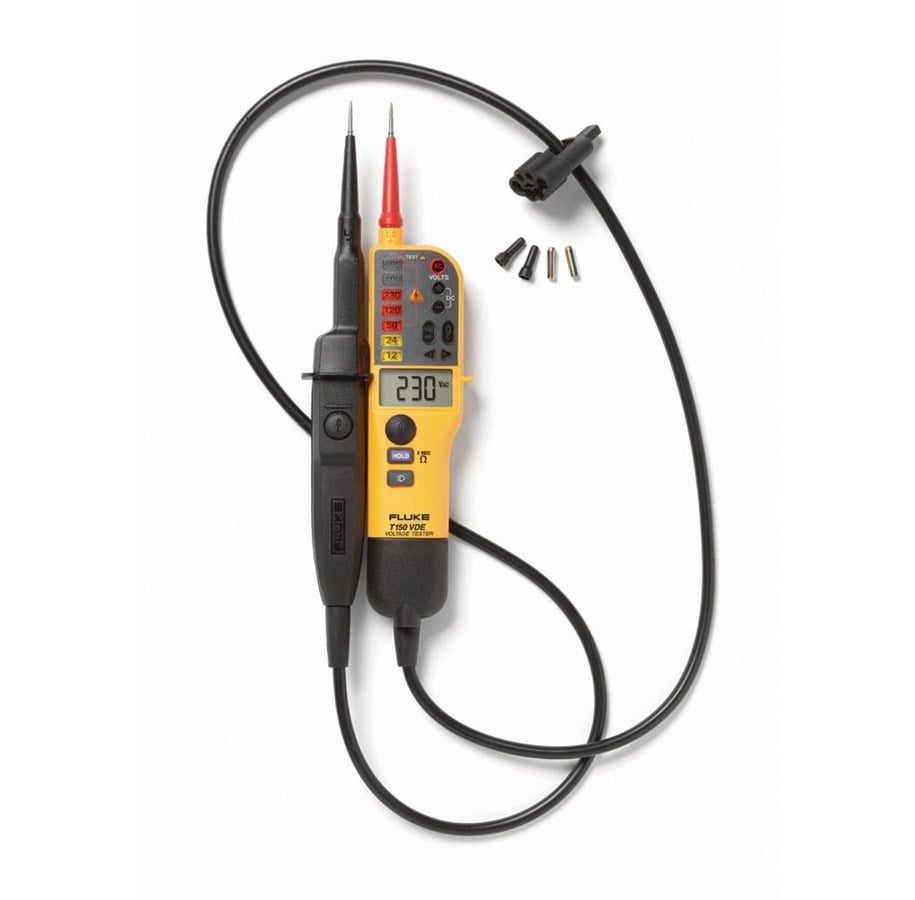

Fluke t150 voltage tester

The Fluke two-pole testers are now more rugged and easier to use than ever before.Fast test results the way you need them, with large, easy-to-use buttons, bright backlights, and clear audible and physical indicators designed for any work situation.Rugged, high-quality construction is built to last. This includes a heavy duty molded case, a thicker cord with wear indicator, sturdy battery case, and well-fitting and durable probe protector.Enhanced ergonomic design feels good in your hand, is easy to use (even with gloves on) and quick, secure probe docking.A complete family of testers with the features, functions, and price/performance to fit your applications and preferences.SpecificationsVoltage AC/DC 6V - 690VContinuity 0 - 400 kFrequency 0 / 40 - 400 HzPhase rotation 100 V - 690 VResistance measurement Up to 1999 Response Time (LED indicator) < 0.5 s200 k input impedance Current draw 3,5 mA @ 690 V Current draw 1,15 mA @ 230 V7k input impedance (with load buttons pressed) Current draw 30 mA @ 230 VSafety rating CAT III 690V/CAT IV 600VIP rating P64SpecificationsPower requirement 2-AA batteriesNet weight 280 gSize (length, width, height 26 x 7 x 3.8 cm

Les mer
2 980,00 kr 2 384,00 kr eksl. mva
Gratis frakt (privatkunde)
Fjernlager, 2-4 dager til forsendelse

Fluke T150 voltage tester product description: Fluke's new two-pole voltage and continuity testers are designed to work with you, providing the best combination of safety, ease of use, and quick responses wherever you need it. Safety classification in Cat. IV 600V and Cat. III 690V (T110, T130, T150). Fluke's new series of two-pole voltage testers meets the latest safety regulations in Europe, EN 61243-3:2010 which is the latest applicable standard for this type of test equipment (Cat. III 600V and Cat. II 690V for T90). Four ways to detect AC/DC current: a clear LED indicator that is instantly visible; a clear digital display of measurement values; an audible continuity test; and vibrations as tactile feedback (vibration indicator on T110,T130,and T150). Backlit graduated scale and backlit indicators.Vibrations provide tactile feedback (T110,T130,and T150). Sound can be turned on/off during testing in quiet areas.Low battery indicator.Also detects voltage with discharged batteries.Improved probe docking = secure storage.Phase sequence indicator for three-phase systems.Residual current circuit breaker.Practical controls with two buttons mean more power can be drawn from the network during testing.Remote trigger residual current circuit breakers.Display Hold (T130,T150)Built-in flashlight.Single-phase voltage quickly identifies live conductors.Probe tips for pushing firmly into place, probe tip protection caps included.Protective cap acts as an extra hand when opening UK fused plugs.Resistance measurement up to 1999 ohms(T150)WearGuardTM insulation shows damage to test leads

Produsent
Varenummer
2749729
Model
4016977
Ean
0095969599702
Dekselfarge
Sort, Grå, Rød, Gult
Antall støttede batterier
2
Batteritype
AAA
Bredde
65 mm
Dybde
38 mm
Høyde
230 mm
Vekt
180 g

Egenskaper

Dekselfarge
Sort, Grå, Rød, Gult

Battery

Antall støttede batterier
2
Batteritype
AAA

Vekt og dimensjoner

Bredde
65 mm
Dybde
38 mm
Høyde
230 mm
Vekt
180 g

Ovenstående informasjon/spesifikasjoner er veiledende og kan uten varsel bli endret av produsenten. Det tas forbehold om trykkfeil og illustrerende bilder. Enkelte tekster kan være autogenerert eller maskinoversatt, så derfor kan det forekomme tekster som virker misvisende.
