Intelligente bygnings installasjoner - ABB Knx presence detector 6131/31-24-500 - 2CKA006132A0348
Varenummer: 2951146

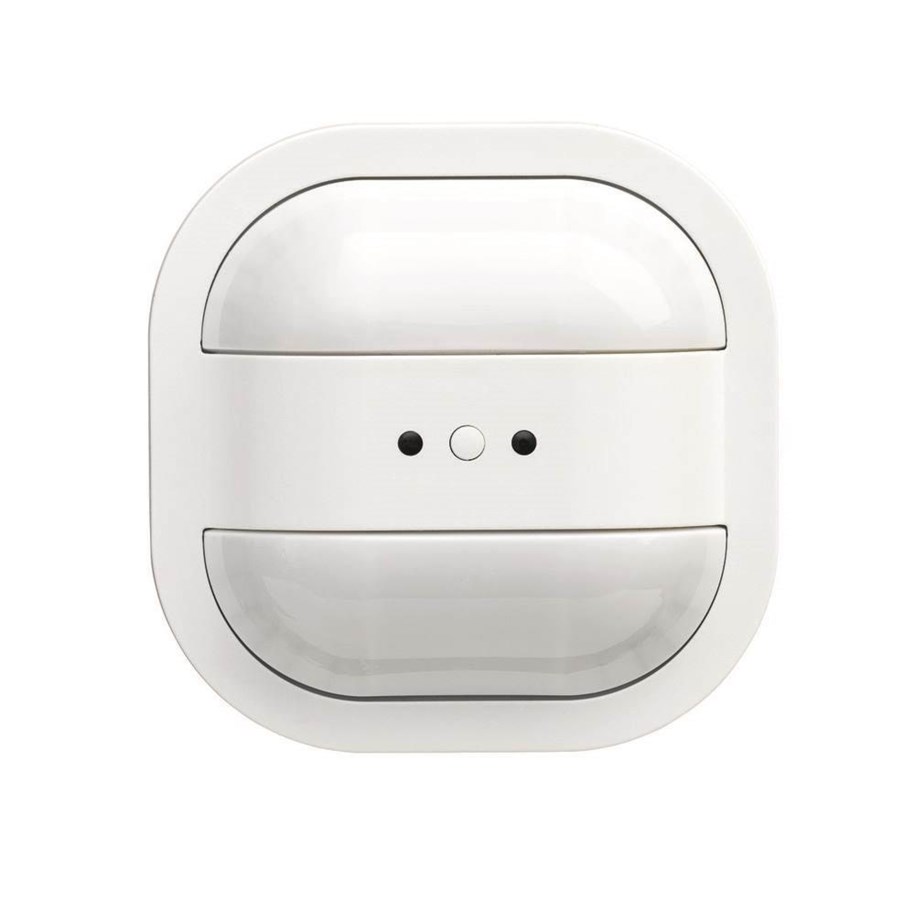

ABB Knx presence detector 6131/31-24-500

Busch-Presence detector premium KNX 6131/31-24-500 Detection range (for mounting height 2.5 m, 3 m and 4 m): circular. Seated persons Ø: max. 8 m, max. 10 m and max. 14 m. Walking persons Ø: max. 10 m, max. 12 m and max. 16 m. Visible height 23 mm. With 4 channels. For dimming/brightness of the rules to a defined value in a designated collection area. HVAC function for controlling heating and/or cooling systems and ventilation systems in the designated collection area. Detectors application with 2 power off stages. Detectors application with integrated monitoring function. Constant light controller with up to two independent channels. Constant light controller with max. 2 outputs for dimming daylight control/rules of two rooflights in the room. Integrated object room temperature controller. 10 freely programmable IR channels (blue and/or white) Incl. 5 logic channels (logic gates, gates, delay and staircase lighting) Evaluation via internal brightness sensor. Weighting of up to 2 exter

Les mer
3 548,00 kr 2 838,40 kr eksl. mva
Gratis frakt (privatkunde)
Fjernlager, 2-4 dager til forsendelse

KNX presence sensor premium white Product description: ABB KNX presence detector premium 12 meters Detection range (for mounting heights: 2.5 m, 3 m and 4 m) Seated persons Ø: 8 m, 10 m and 14 m. Walking persons Ø: 10m,12m and16m Visible height:23mm With four channels. For dimming to a defined value in a specified detection area.With four channels.HVAC function for controlling heating and/or cooling systems.Constant light control with max. two independent channels.Constant light control with max. two outputs for daylight control of two lighting rows in the room.Detector application with switch-off in two levels.Detector application with integrated monitoring function.Built-in room temperature control.Ten freely programmable IR channels (white).Incl.five logic channels(logical gates,gate function,delay,and stair lighting).With integrated KNX bus coupler.Connections:KNX line:bust connection terminal.Luminance limit value :1 lux-1,000 lux.Mounting height :2m-4m.Enclosure class(unit):IP20.Temperature range(unit):-5°C to45°C.Measures:(LxWxD):91mm x91mm x45mm.Mounting depth :22 mm.Color:white

Produsent
Varenummer
2951146
Model
2CKA006132A0348
Ean
4011395185940
