KVM-switch - ATEN 8-Port USB True 4K DisplayPort KVM Switch wit - CS19208-AT-G
Varenummer: 2977986
CS19208-AT-G
CS19208-AT-G
CS19208-AT-G
CS19208-AT-G
CS19208-AT-G

ATEN 8-Port USB True 4K DisplayPort KVM Switch wit

KVM / lyd / USB-svitsj, 8 x KVM/lyd/USB, 1 lokalbruker, stasjonær, rackmonterbar

14 999,00 kr 11 999,20 kr eksl. mva
Gratis frakt (privatkunde)
Bestillingsvare, leveringstiden kan ikke opplyses.

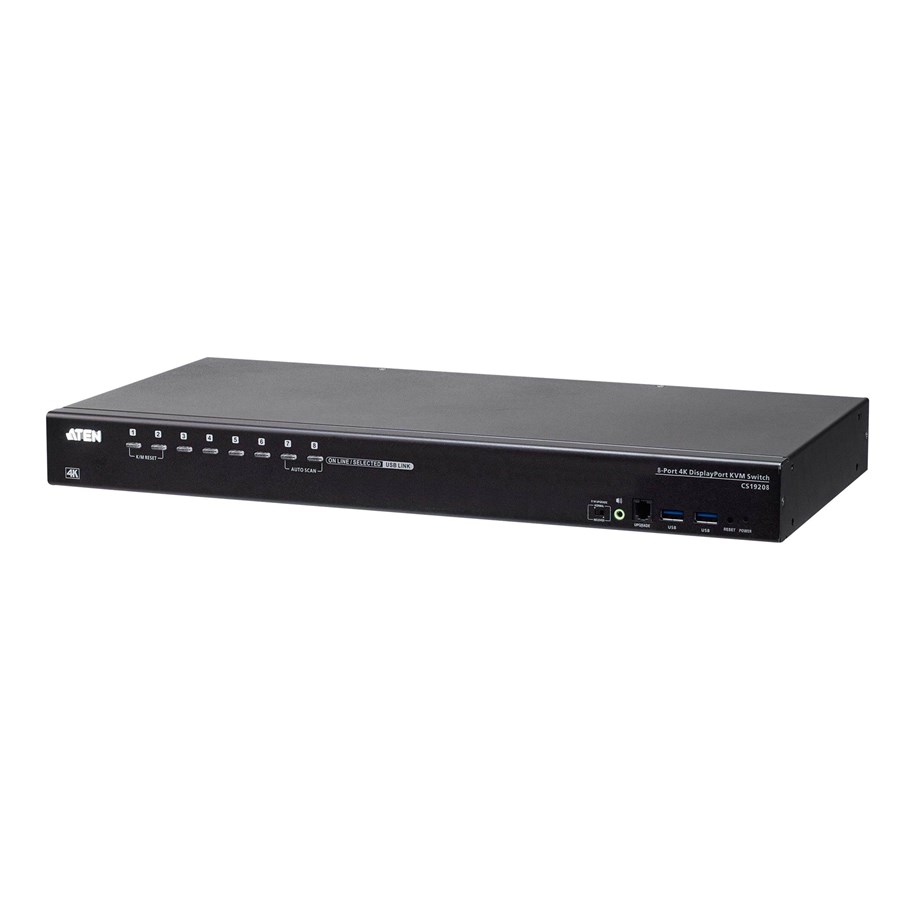

The ATEN CS19208 KVM switch can effectively access and control up to 8 DisplayPort computers from a single USB keyboard, USB mouse, and monitor console. With its dual interface console, users can choose between DisplayPort/HDMI video output supporting high video quality. To meet the needs of easy expansion and flexibility, the CS19208 can be cascaded to two levels to control up to 128 computers from a single console. Furthermore, the CS19208 supports multi-display function by stacking up to eight CS19208 units to compare and analyze information on 8 monitors at most, which substantially streamlines the working environment. Besides, the CS19208 comes with a built-in USB 3.1 hub delivering fast data transfer rates, allowing users to speedup operations and share USB peripherals instantly. For user-friendly port selection methods, the CS19208 offers push buttons, hotkeys, and OSD, bringing effortless and intuitive operations. To eliminate security concern, a two-level password authorization is available to enhance security protection for accessing and controlling computers.

Produsent
Varenummer
2977986
Model
CS19208-AT-G
Ean
4719264649257
Til produsentens hjemmeside
Produktbeskrivelse
ATEN CS19208 - KVM / lyd / USB-svitsj - 8 porter - rackmonterbar
Enhetstype
KVM / lyd / USB-svitsj - 8 porter - kaskademulighet
Utførelse
Rackmonterbar
Undertype
DisplayPort
Porter
8 x KVM/lyd/USB
Antall KVM-brukere
1 lokalbruker
Egenskaper
Oppgraderbar fastvare, metallhus, EDID Expert, passordvern
Tilpassede standarder
USB 3.1 Gen 1
Strømforsyning
DC 12 V
Dimensjoner (BxDxH)
43.24 cm x 21.43 cm x 4.4 cm
Vekt
3.11 kg

Generelt

Enhetstype
KVM / lyd / USB-svitsj - 8 porter - kaskademulighet
Utførelse
Stasjonær, rackmonterbar
Undertype
DisplayPort
Porter
8 x KVM/lyd/USB
Antall lokale KVM-brukere
1 lokalbruker
Tastatur/mus-grensesnitt
USB
Maks antall enheter pr. stakk
8
Maks. oppløsning
4096 x 2160 @ 60 Hz
Egenskaper
Oppgraderbar fastvare, metallhus, EDID Expert, passordvern, kringkastingsmodus, ATEN Video DynaSync, Auto Scan-modus
Tilpassede standarder
USB 3.1 Gen 1
Innebygde enheter
USB 3.1 Gen 1 hub
Statusindikatorer
Strøm, velg, USB, online

Ekspansjon / Tilkoplinger

Grensesnitt
1 x tastatur (USB) Type A
1 x mus (USB) Type A
1 x DisplayPort konsoll
1 x HDMI konsoll
2 x lyd minijakk konsoll
8 x DisplayPort
8 x USB 3.1 Gen 1 Type B
8 x lyd minijakk
1 x styring RJ-11
2 x USB 3.1 Gen 1 Type A

Strømforsyning

Strømenhet
Ekstern strømadapter
Påkrevd nettspenning
DC 12 V
Strømforbruk ved drift
18.44 watt

Diverse

Tilleggsutstyr inkludert
4 fotputer
Medfølgende kabler
2 x DisplayPort-kabel
2 x SuperSpeed USB-kabel
2 x lydkabel
1 x fastvareoppgraderingskabel
Rack-monteringssett
Inkludert
Tilpassede standarder
RoHS, DisplayPort 1.4, HDCP 2.2

Mål og vekt

Bredde
43.24 cm
Dybde
21.43 cm
Høyde
4.4 cm
Vekt
3.11 kg
