KVM-switch - ATEN CS1844 4-Port USB 3.0 4K HDMI Dual Display KVMP Switch - CS1844-AT-G
Varenummer: 2974009
CS1844-AT-G
CS1844-AT-G
CS1844-AT-G
CS1844-AT-G
CS1844-AT-G
CS1844-AT-G

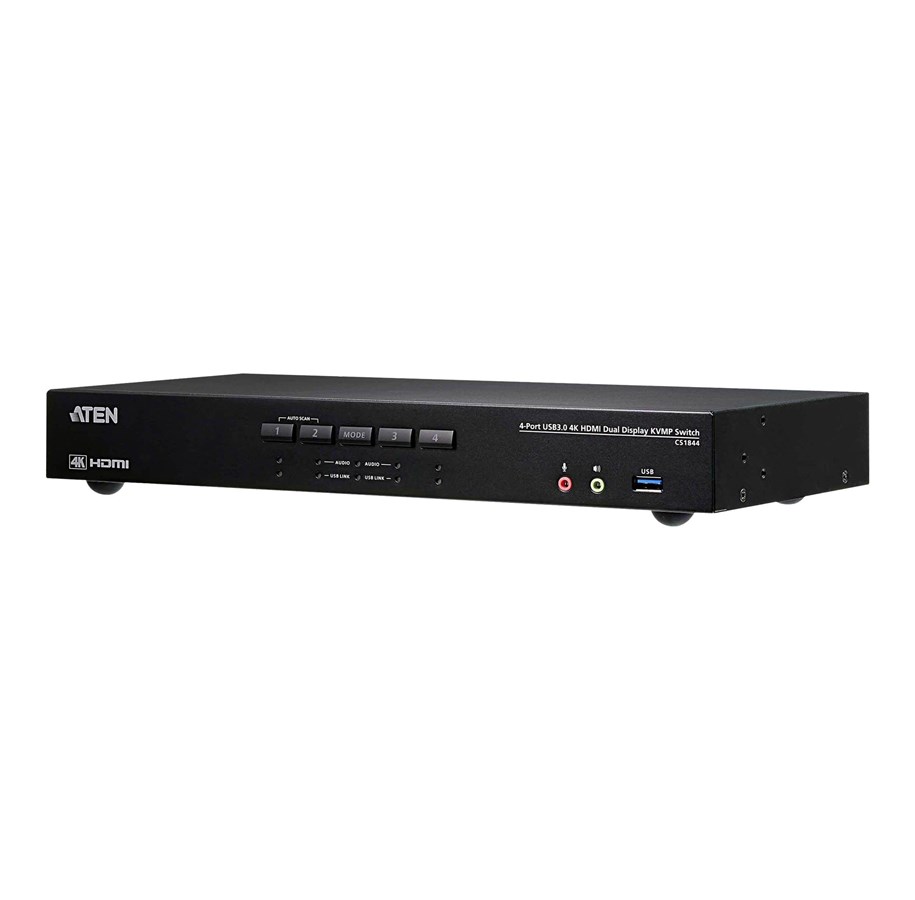

ATEN CS1844 4-Port USB 3.0 4K HDMI Dual Display KVMP Switch

KVM / lyd / USB-svitsj, 4 x KVM/lyd/USB, 1 lokalbruker, stasjonær

9 843,00 kr 7 874,40 kr eksl. mva
Gratis frakt (privatkunde)
Fjernlager, 3-5 dager til forsendelse

The ATEN CS1844 Dual Display KVMP Switch presents a valuable solution for desktop workstation with instant and effortless access to four HDMI interface computers from a single USB keyboard, mouse and two HDMI monitors; to meet users' needs. The CS1844 is compliant with HDMI 2.0 standard and supports superior video quality up to 4K DCI (4096 x 2160 @ 60Hz), offering stunning and vivid visuals.In addition, with patented ATEN technology - Video DynaSync, the CS1844 provides optimized display resolution and accelerates switching between systems. Considering immediate data sharing, a built-in USB 3.1 Gen 1 hub delivers data transfer rates up to 5 Gbps, allowing you to speed up operations and share USB peripherals efficiently.For requirements of more displays to monitor, users can daisy-chain two CS1844 for up to four displays to multitask easily and process tremendous information. Besides, a remote port selector is available for quick and streamlined port selection apart from push buttons, hotkeys and mouse port switching.As a feature-rich KVM switch, the CS1844 is especially suitable for users who need to perform multiple tasks smoothly at CGI work, graphic design, video post-production, and CAD engineering.

Produsent
Varenummer
2974009
Model
CS1844-AT-G
Ean
4710469340048
Til produsentens hjemmeside
Produktbeskrivelse
ATEN CS1844 4-Port USB 3.0 4K HDMI Dual Display KVMP Switch - KVM / lyd / USB-svitsj - 4 porter
Enhetstype
KVM / lyd / USB-svitsj - 4 porter
Undertype
HDMI
Porter
4 x KVM/lyd/USB
Antall KVM-brukere
1 lokalbruker
Egenskaper
Oppgraderbar fastvare, 4 K-oppløsningstøtte, metallhus, svitsjknapper
Tilpassede standarder
HDCP 2.2, USB 3.1 Gen 1
Dimensjoner (BxDxH)
33.5 cm x 16.05 cm x 4.4 cm
Vekt
1.57 kg

Generelt

Enhetstype
KVM / lyd / USB-svitsj - 4 porter
Utførelse
Stasjonær
Undertype
HDMI
Porter
4 x KVM/lyd/USB
Antall lokale KVM-brukere
1 lokalbruker
Tastatur/mus-grensesnitt
USB
Maks. oppløsning
4096 x 2160 @ 60 Hz
Egenskaper
Oppgraderbar fastvare, 4 K-oppløsningstøtte, metallhus, svitsjknapper, ATEN Video DynaSync
Tilpassede standarder
HDCP 2.2, USB 3.1 Gen 1
Innebygde enheter
USB 3.1 Gen 1 hub
Statusindikatorer
Velg, USB, lyd, online

Ekspansjon / Tilkoplinger

Grensesnitt
1 x tastatur (USB) Type A konsoll
1 x mus (USB) Type A konsoll
8 x HDMI Type A
4 x mikrofon minijakk
4 x lydutgang minijakk
4 x USB 3.1 Gen 1 Type B
2 x mikrofon minijakk konsoll
2 x HDMI Type A konsoll
2 x lydutgang minijakk konsoll
2 x USB 3.1 Gen 1 Type A
1 x fjernvalgssvitsjer 2,5 mm-minijakk
1 x kaskade RJ-45

Strømforsyning

Strømenhet
Ekstern strømadapter
Strømforbruk ved drift
4.42 watt

Diverse

Tilleggsutstyr inkludert
Svitsj for fjernportsvalg
Medfølgende kabler
8 x HDMI-kabel
4 x høyttalerkabel
4 x SuperSpeed USB-kabel
4 x mikrofonkabel
Tilpassede standarder
RoHS

Mål og vekt

Bredde
33.5 cm
Dybde
16.05 cm
Høyde
4.4 cm
Vekt
1.57 kg

Ovenstående informasjon/spesifikasjoner er veiledende og kan uten varsel bli endret av produsenten. Det tas forbehold om trykkfeil og illustrerende bilder. Enkelte tekster kan være autogenerert eller maskinoversatt, så derfor kan det forekomme tekster som virker misvisende.
