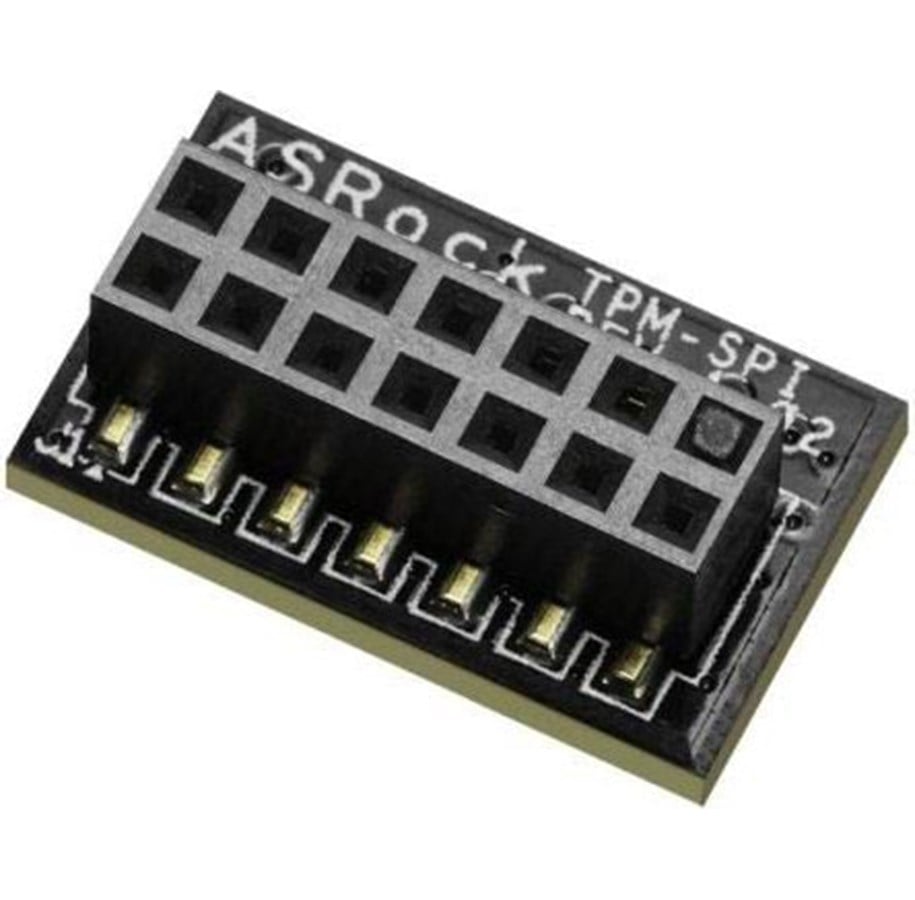

ASRock TPM-SPI

Compliant to TPM Main Specification Family "2.0" Level 00 Revision 01.16 SPI interface Meeting Intel TXT Microsoft Windows and Google Chromebook certification criteria for successful platform qualification Random Number Generator (RNG) according to NIST SP800-90A Full personalization with Endorsement Key (EK) and EK certificate Standard (-20.+85°C) and Enhanced temperature range (-40.+85°C) PG-VQFN-32-13 or PG-UQFN-32-1 package Pin compatible to OPTIGA™ TPM SLB 9670 TPM1.2 version Optimized for battery operated devices: low standby power consumption (typ. 110µA) 24 PCRs (SHA-1 or SHA-256) 7206 Byte free NV memory Up to 3 loaded sessions (TPM_PT_HR_LOADED_MIN) Up to 64 active sessions (TPM_PT_ACTIVE_SESSIONS_MAX) Up to 3 loaded transient Objects (TPM_PT_HR_TRANSIENT_MIN) Up to 7 loaded persistent Objects (TPM_PT_HR_PERSISTENT_MIN) Up to 8 NV counters Up to 1 kByte for command parameters and response parameters 1280 Byte I/O buffer *Supported on X570 and newer platform motherboards.
