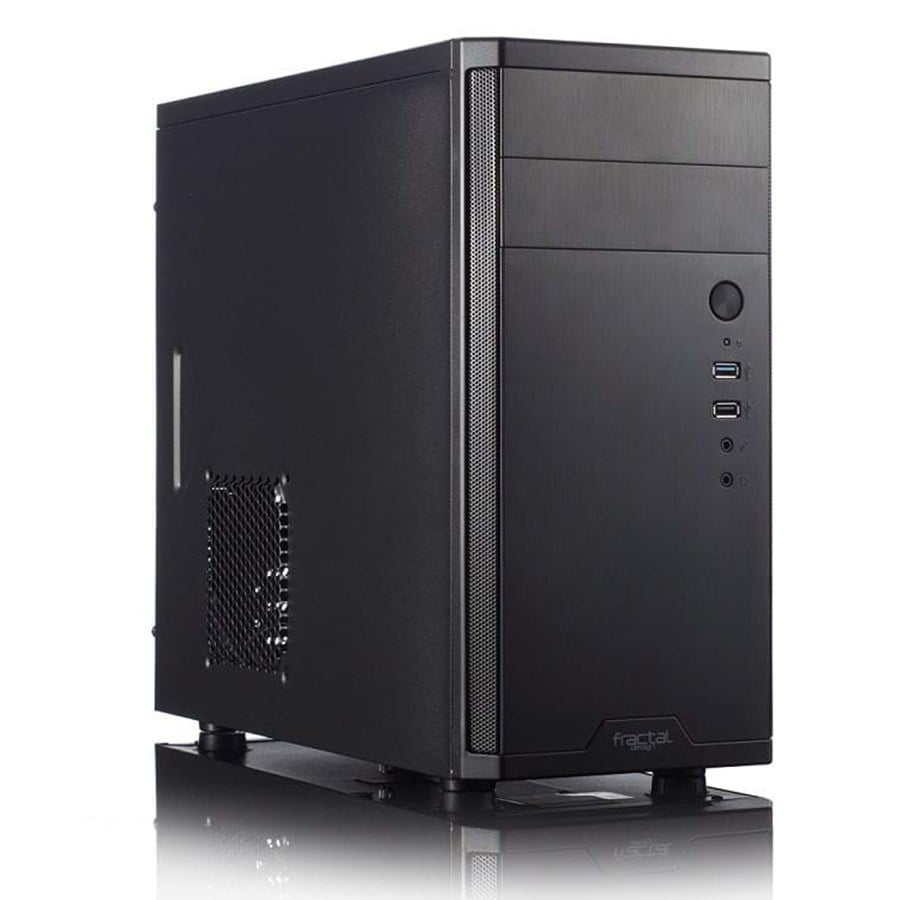

Fractal Design Core 1100 - Kabinett - Minitower - Svart

CORE 1100 Overview

The Core 1100 offers some great features and incredible value. Josh walks you through what to expect with the new Core 1100.

Despite its extremely small outer dimensions, the Core 1100 mATX case provides everything you need. The stylish, Scandinavian exterior design is matched by the fully painted interior, complete with the signature white details of Fractal Design. The case is optimized for airflow with a straight cooling path, and comes equipped with a pre-installed 120mm fan. The front panel is equipped with dust filters. An innovative vertical hard drive bracket can fit either two 3.5" drives, three 2.5" drives, or one drive of each size. Both the 3.5" drive slots come with silicone vibration dampening grommets

Key features

• An extremely compact micro ATX case, designed for exceptional airflow and cooling
• Brushed aluminum-look front panel with a sleek, three-dimensional textured finish
• One Fractal Design 120mm fan included
• Easy access I/O on front panel, with audio and both USB 3.0 and USB 2.0 ports
• Front panel dust filters and closed top and bottom panels help maintaining a dust free interior
• Innovative vertical HDD bracket, which can hold two 3.5" drives or three 2.5" drives, or one drive of each size
• Vibration-dampened mounting for both 3.5" drive slots
• Fully painted interior, with Fractal Design signature white details

Specifications

• Mini ITX, Micro ATX motherboard compatibility
• 2 - 5.25" bays
• 2 - 3.5" HDD positions OR 3 - 2.5" drive positions, OR 1 - 2.5" drive position, OR 1 - 3.5" drive position
• 4 expansion slots
• Supports Graphics cards up to 350mm in length may be installed. One or more 3.5" hard drives may interfere with side-mounted power connectors on graphics cards longer than 170 mm
• Support cooling system: 3 Fan positions (1 fan included)
• Filtered fan slots in front
• CPU coolers up to 148 mm in height
• ATX PSUs, up to 185mm if a typical-length optical drive is mounted
• Available in Black
• Case dimensions (WxHxD):175 x 358 x 410 mm
• Net weight: 3.8 kg
• Package dimensions (WxHxD): 235 x 485 x 420 mm
• Package weight: 4.6 kg

Cooling system

• Front: 1 - 120mm fans (included is 1 Fractal Design silent 120mm fan, 1200 RPM speed)
• Rear: 1 - 92mm fan (not included)
• Side: 1 -120mm fan (not included)

Front interface

• 1 USB 3.0 and 1 USB 2.0
• Audio in/out
• Power button with LED (white)
• HDD activity LED (white)

Package contents

• Core 1100 computer case
• Accessory box
• User manual
