Kabinett - Fractal Design Node 304 - Black - Kabinett - Cube - Svart - FD-CA-NODE-304-BL
Varenummer: 2376846
FD-CA-NODE-304-BL
FD-CA-NODE-304-BL
FD-CA-NODE-304-BL
FD-CA-NODE-304-BL
FD-CA-NODE-304-BL
FD-CA-NODE-304-BL
FD-CA-NODE-304-BL
FD-CA-NODE-304-BL
FD-CA-NODE-304-BL

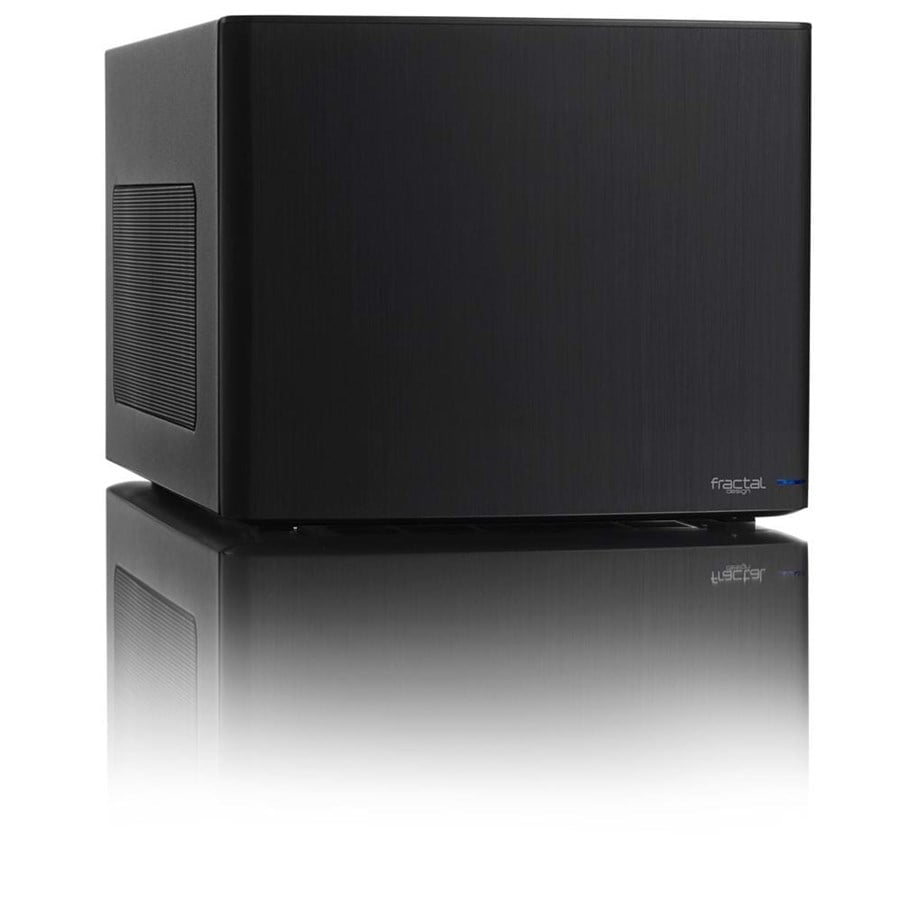

Fractal Design Node 304 - Black - Kabinett - Cube - Svart

Minitower, Mini-ITX, uten strømforsyning - støtter ATX strømforsyning, front med2 x USB 3.0 & lydforbindelser, 6 x 2.5"/3.5" harddisk brønner, CPU-kjølerklaring: 165 mm, GPU clearance 31 cm, inkluderte vifter: 1 x 80mm front med / 1 x 120mm bak, front panel solid / lukket, side vindue: metal, farge: svart

På lager
1 330,00 kr 1 064,00 kr eksl. mva
Gratis frakt (privatkunde)
4 stk. På lager - 1-3 dager til levering

NODE Series

The Node Series of cases offers a stylish way to integrate the computer into your home. With the flexibility to serve as an HTPC, fileserver or media and gaming station, the Node series delivers endless possibilities to combine design and entertainment.



The Node 304 features a unique modular interior for outstanding configurability.

The Node 304 accommodates up to six hard drives. Unused mounting brackets can be removed to allow for long graphic cards, additional airflow or more space for organizing cables. Additionally, it is equipped with three hydraulic bearing fans, easy-to-clean air filters in all intakes and two front USB 3.0 ports.

Featuring hybrid functionality, the Node 304 case is ideally used as a cool-running file server, a stylish and quiet home theatre PC or a powerful gaming system highlighting minimalistic and stunning Scandinavian design and maximum functionality.

Key features

  • Compact, modular interior
  • Minimalistic design with an elegant aluminum front panel
  • Unique new modular mounting system that accommodates up to 6 hard drives
  • Accommodates tower CPU coolers and single-fan water cooling systems
  • Filtered air intakes ensure a dust-free environment for internal components
  • Three Silent Series R2 hydraulic bearing fans included
  • Excellent cooling for all components
  • Accommodates ATX power supplies
  • Fan controller for all fans included
  • USB 3.0 for fast file transfers

Specifications

  • Mini ITX, Mini DTX motherboard compatibility; NOTE: motherboards with SATA ports that are angled 90 degrees may conflict with installation in the case.
  • 2 expansion slots
  • 6 – supports either 3.5" or 2.5" HDD / SSD
  • ATX PSUs, up to 160mm in length (To fit in combination with a long graphics card, PSUs with modular connectors on the back typically need to be shorter than 160 mm)
  • Graphics cards, up to 310mm in length, when 2 HDD slots (1 HDD hanging bracket total) are removed (Graphics cards longer than 170 mm will conflict with PSUs longer than 160mm)
  • Tower CPU coolers, up to 165 mm tall
  • Case dimensions (W x H x D): 250 x 210 x 374 mm
  • Case volume: 19.5 Liters
  • Net weight: 4.9 kg
  • Colors available: Black and White

Cooling system

  • 2 - Front mounted 92mm Silent Series R2 hydraulic bearing fans, 1300 RPM speed (compatible with 80mm fans) – included
  • 1 - Rear mounted 140mm Silent Series R2 hydraulic bearing fan, 1000 RPM speed (compatible with 120mm fans) – included
  • Removable air filters for front fans and PSU
  • Fan filter for graphics card
  • 1 - fan controller for all 3 fans included

Front interface

  • 2 - USB 3.0
  • 1 - 3.5mm audio in (microphone)
  • 1 - 3.5mm audio out (headphone)
  • Power button with LED
  • HDD LED

Package contents

  • Node 304 computer case
  • User manual
  • Accessory box

Strømforsyning (PSU)

Kabinett-tilbehør

Produsent
Varenummer
2376846
Model
FD-CA-NODE-304-BL
Ean
7350041080978
Til produsentens hjemmeside
Produktbeskrivelse
Fractal Design Node 304 - tower - mini-ITX
Produkttype
Systemskap
Produktformfaktor
Tower
I/O-kontakter
2 x USB 3.0
1 x hodetelefoner
1 x mikrofon
Støttede hovedbrett
Mini-ITX, DTX
Systemkabinettfunksjoner
Viftehastighetskontroller
Strømenhet
Ingen strømforsyning (ATX)
Dimensjoner (BxDxH)
25 cm x 37.4 cm x 21 cm
Vekt
4.9 kg

Generelt

Produktformfaktor
Tower
Maks hovedkortsstørrelse
Mini-ITX
Støttede hovedbrett
Mini-ITX, DTX
Antall interne brønner
6
Kjølesystem
Foran: 92 mm vifte x 2 / 1300 rpm / avtakbart og vaskbart filter
Bak: 140 mm vifte x 1 / 1000 rpm / avtakbart og vaskbart filter
Foran: 80/92 mm viftemontering x 2
Bak: 120/140 mm viftemontering x 1
Systemkabinettfunksjoner
Viftehastighetskontroller

Ekspansjon / Tilkoplinger

Ekspansjonsbrønner
6 (total) / 6 (ledig) x intern - 2,5" / 3,5" delt
Utvidelsesspor
2 x Utvidelsesspor
Grensesnitt
2 x USB 3.0
1 x hodetelefoner - minijakk
1 x mikrofon - minijakk

Strømforsyning

Strømenhet
Ingen strømforsyning
Spesifikasjonssamsvar
ATX

Ovenstående informasjon/spesifikasjoner er veiledende og kan uten varsel bli endret av produsenten. Det tas forbehold om trykkfeil og illustrerende bilder. Enkelte tekster kan være autogenerert eller maskinoversatt, så derfor kan det forekomme tekster som virker misvisende.
