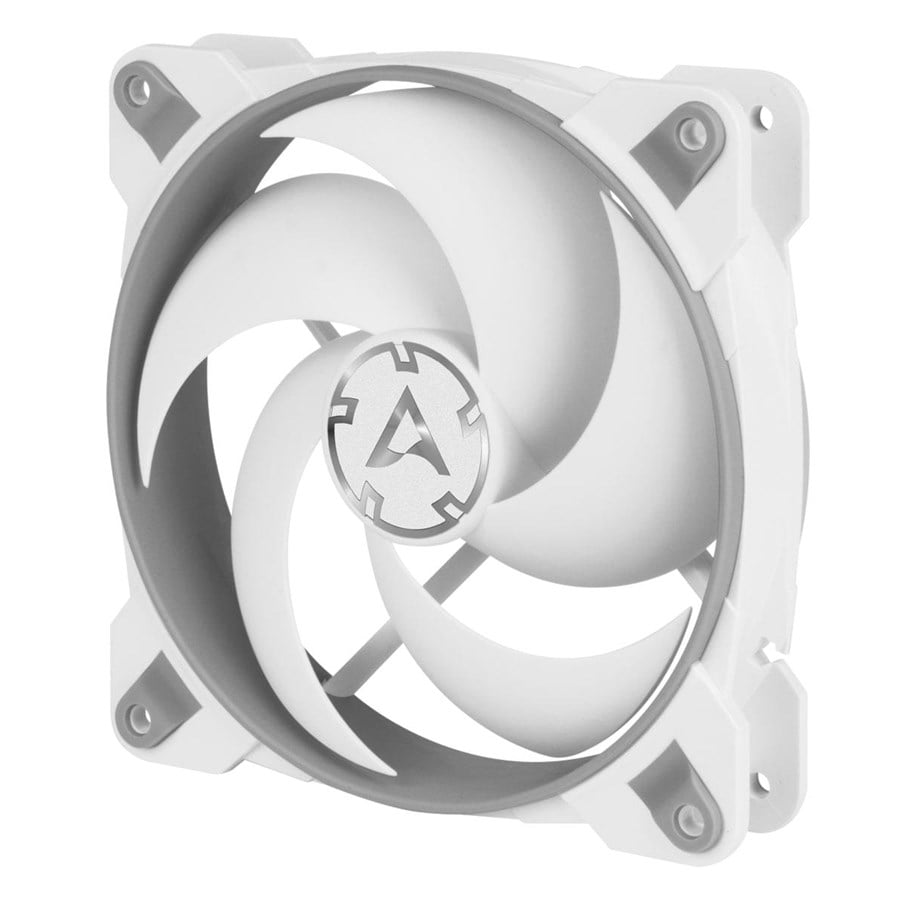

Arctic BioniX P140 - Grey/White - Kabinettvifte - 140mm - Hvit - 24 dBA
Kabinettvifte, 140mm x 140mm x 28mm (Høyde x Bredde x Dybde), Støynivå maks 0.45 sone (∼ 24 dBa), luftstrøm maks 77.6 CFM, maksimalt statisk trykk 2.85 mmH2O, viftehastighet: 200 - 1950 ±10% RPM, PWM kontrollert, lagertype: Fluid Dynamic Bearing (FDB), hovedkortkontakt: 4-pins, farge: grå / hvit.
230,00 kr
184,00 kr eksl. mva
Rimeligste private frakt: 99,00 kr
Fjernlager, 4-6 dager til forsendelse
UTVIDET JULERETURRETT FRAM TIL 31. JANUAR 2025
Proshop tilbyr utvidet Juleretur til privatkunder på ordre kjøpt i perioden 1. november til 23. desember 2024. Les betingelsene her.
Optimised for Static Pressure
During the development of the new BioniX P140, special emphasis was placed on a focused airstream and thus a high static pressure. The fan guarantees extremely efficient cooling, even with increased air resistance. Therefore, the BioniX P140 is particularly suitable for use on heatsinks and radiators.
More Efficient Technology
The motor is powered by a Neodym-Iron-Boron-Magnet ring of the newest generation, which allows the new BioniX P140 to run much more efficiently than its predecessors. This saves energy and lowers the coil temperature without comprimising the performance.
Maximum Quietness, Minimum Vibration
Even at low speeds the operating sound of the new ARCTIC motor is barely noticeable. Due to a sinus-magnetizing the new motor only creates about 5 % of the vibration from commutation of a regular DC-motor without filter. Consequently, there is no need for rubber spacers due to the steady and smooth torque of the new motor.
Extended Life Span
A 10° C lower motor temperature roughly doubles the life span of a fan. The new ARCTIC motor has a four times longer service life through its low coil temperature.
High Quality Bearing
Thanks to an alloy/lubricant combination developed in Germany, friction within the bearing is reduced and greater efficiency is achieved. As a result, there is less heat development as well as less bearing noise, which means you can enjoy a longer service life from your fan.
During the development of the new BioniX P140, special emphasis was placed on a focused airstream and thus a high static pressure. The fan guarantees extremely efficient cooling, even with increased air resistance. Therefore, the BioniX P140 is particularly suitable for use on heatsinks and radiators.
More Efficient Technology
The motor is powered by a Neodym-Iron-Boron-Magnet ring of the newest generation, which allows the new BioniX P140 to run much more efficiently than its predecessors. This saves energy and lowers the coil temperature without comprimising the performance.
Maximum Quietness, Minimum Vibration
Even at low speeds the operating sound of the new ARCTIC motor is barely noticeable. Due to a sinus-magnetizing the new motor only creates about 5 % of the vibration from commutation of a regular DC-motor without filter. Consequently, there is no need for rubber spacers due to the steady and smooth torque of the new motor.
Extended Life Span
A 10° C lower motor temperature roughly doubles the life span of a fan. The new ARCTIC motor has a four times longer service life through its low coil temperature.
High Quality Bearing
Thanks to an alloy/lubricant combination developed in Germany, friction within the bearing is reduced and greater efficiency is achieved. As a result, there is less heat development as well as less bearing noise, which means you can enjoy a longer service life from your fan.
Produsent
Varenummer
2829104
Model
ACFAN00160A
Ean
4895213702331
Til produsentens hjemmeside
Egnet plassering
PC-kjølevifte
Modell/Type
Vifte
Viftediameter
14 cm
Støttede prosessorkontakter
Støttes ikke
Kompatible prosessorserier
Støttes ikke
Rotasjonshastighet (min)
200 RPM
Rotasjonshasrighet (max)
1950 RPM
Støynivå
0,45 sone
Maksimal luftstrøm
77,6 cfm
Luftstrøm
131,92 m³/t
Maksimalt lufttrykk
2,85 mmH2O
Pulsbreddemodulerings- støtte (PWM)
Ja
Lagertype
Fluid Dynamic Bearing (FDB)
Produktfarge
Grå, Hvit
Antall vifter
1 vifter
Antall vifteblader
5
Viftetilkobling
4-pin + 4-pin
Strømforbruk (vanlig bruk)
1,8 W
Spenning
12 V
Nominell linjestrøm
0,15 A
Bredde
140 mm
Dybde
28 mm
Høyde
140 mm
Vekt
181 g
Kabellengde
0,4 m
Pakkebredde
148 mm
Pakkedybde
35 mm
Pakkehøyde
148 mm
Pakkevekt
230 g
Pakketype
Boks
Skruer inkludert
Ja
Antall skruer
4
Monteringshullmønster (BxD)
125 x 125 mm
Opprinnelsesland
China
Harmonisert system (HS)-kode
84733080
Ytelse
Egnet plassering
PC-kjølevifte
Modell/Type
Vifte
Viftediameter
14 cm
Støttede prosessorkontakter
Støttes ikke
Kompatible prosessorserier
Støttes ikke
Rotasjonshastighet (min)
200 RPM
Rotasjonshasrighet (max)
1950 RPM
Støynivå
0,45 sone
Maksimal luftstrøm
77,6 cfm
Luftstrøm
131,92 m³/t
Maksimalt lufttrykk
2,85 mmH2O
Pulsbreddemodulerings- støtte (PWM)
Ja
Lagertype
Fluid Dynamic Bearing (FDB)
Design
Produktfarge
Grå, Hvit
Antall vifter
1 vifter
Antall vifteblader
5
Viftetilkobling
4-pin + 4-pin
Energihåndtering
Strømforbruk (vanlig bruk)
1,8 W
Spenning
12 V
Nominell linjestrøm
0,15 A
Vekt og dimensjoner
Bredde
140 mm
Dybde
28 mm
Høyde
140 mm
Vekt
181 g
Kabellengde
0,4 m
Pakkebredde
148 mm
Pakkedybde
35 mm
Pakkehøyde
148 mm
Pakkevekt
230 g
Emballasjeinnhold
Pakketype
Boks
Skruer inkludert
Ja
Antall skruer
4
Andre funksjoner
Monteringshullmønster (BxD)
125 x 125 mm
Opprinnelsesland
China
Logistikk data
Harmonisert system (HS)-kode
84733080
