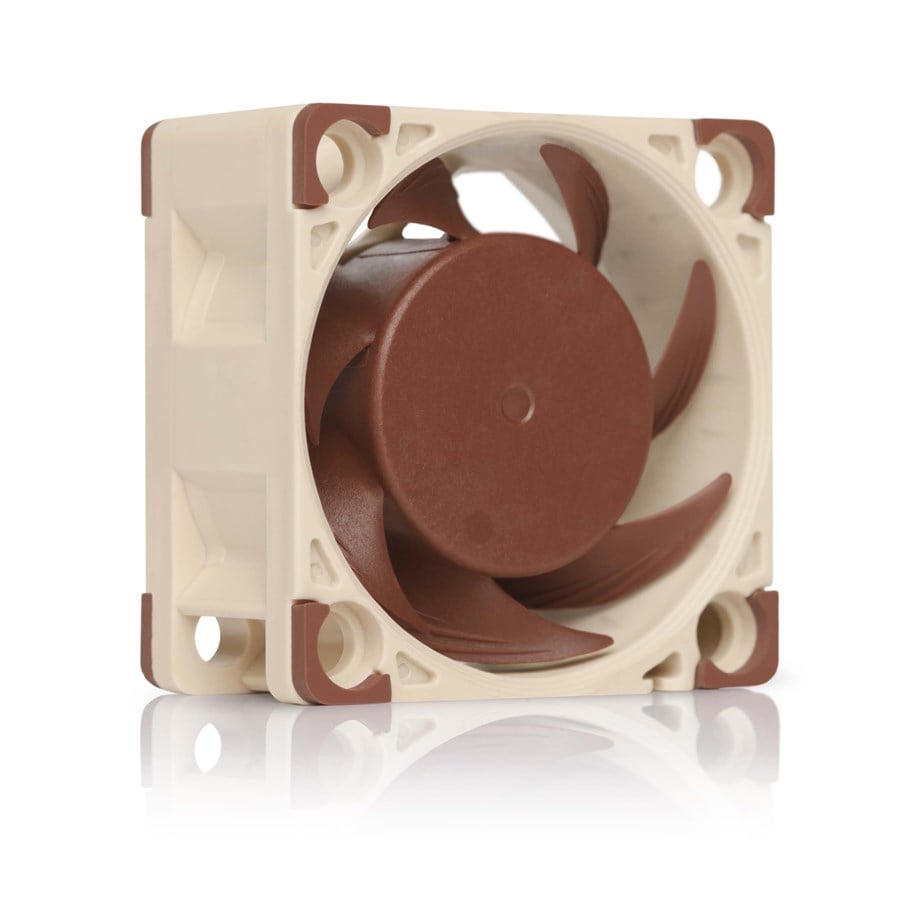

Noctua NF-A4x20 FLX - Kabinettvifte - 40mm - Brun - 15 dBA
Skapkjøler, størrelse: 40mm x 40mm x 20mm (HxBxD), støynivå: 12,2 - 14,9 dBA, luftstrøm: 6.9 - 9.4 CFM, vifte RPM:3700-5000 ±10%, med en tre-pinners hovedkorttilkobling og brun farge.
På lager
199,00 kr
159,20 kr eksl. mva
Rimeligste private frakt: 99,00 kr
+15 stk.
På lager - 1-3 dager til levering
Featuring advanced aerodynamic design measures such as Flow Acceleration Channels and Noctua’s AAO frame, the NF-A4x20 is a highly optimised, premium-quality quiet fan in size 40x20mm. The FLX version provides 5000/4400/3700rpm speed settings via the supplied Low-Noise Adaptors and includes the OmniJoin™ Adaptor Set for easy connection to proprietary fan headers. Its superb running smoothness, reference-class SSO2 bearing and Noctua’s trusted premium quality make it an elite choice for the highest demands.
40x20mm sizeCompared to Noctua’s award-winning NF-A4x10, the NF-A4x20 is twice as thick, which allows for increased static pressure performance and makes the NF-A4x20 ideal for demanding applications with high flow resistance. |
Flow Acceleration ChannelsThe NF-A4x20 impeller features suction side Flow Acceleration Channels. By speeding up the airflow at the crucial outer blade regions, this measure reduces suction side flow separation and thus leads to better efficiency and lower vortex noise. |
AAO frameNoctua's AAO (Advanced Acoustic Optimisation) frames feature integrated anti-vibration pads as well as Noctua's proprietary Stepped Inlet Design and Inner Surface Microstructures, both of which further refine the fan's performance/noise efficiency. |
Stepped Inlet DesignNoctua's Stepped Inlet Design adds turbulence to the influx in order to facilitate the transition from laminar flow to turbulent flow, which reduces tonal intake noise, improves flow attachment and increases suction capacity, especially in space-restricted environments. |
Inner Surface MicrostructuresWith the tips of the fan blades ploughing through the boundary layer created by the Inner Surface Microstructures, flow separation from the suction side of the blades is significantly suppressed, which results in reduced blade passing noise and improved airflow and pressure efficiency. |
Integrated Anti-Vibration PadsIntegrated Anti-Vibration Pads made from extra-soft silicone minimise the transmission of minute vibrations while maintaining full compatibility with all standard mounting systems and fan clips used on heatsinks. |
Smooth Commutation Drive 2The latest version of Noctua's advanced Smooth Commutation Drive system ensures superb running smoothness by eliminating torque variations and switching noises. This makes the fan remarkably quiet even at very close distances. |
SSO2 bearingThe NF-A4x20 features the further optimised second generation of Noctua's renowned, time-tested SSO bearing. With SSO2, the rear magnet is placed closer to the axis to provide even better stabilisation, precision and durability. |
3 speed settings for full flexibilityProviding 5000, 4400 and 3700 rpm speed settings via the supplied Low-Noise and Ultra-Low-Noise Adapters, the NF-A4x20 FLX (Flexibility) can be fine-tuned for superior airflow or maximum quietness. |
OmniJoin™ adaptor setMany devices featuring 40mm fans use proprietary fan headers, so the NF-A4x20 comes with Noctua's OmniJoin™ adaptor set. Just cut the original fan's cable, fix it to the adaptor using the supplied 3M Scotchlok™ connectors and you can plug the NF-A4x20 to proprietary fan headers! |
Extensive cabling optionsThe fan's short 20cm primary cable minimises cable clutter in typical applications while the supplied 30cm extension provides extended reach when necessary. Both cables are fully sleeved and the supplied 3:4 pin adaptor allows the connection of the fan directly to the power supply. |
6-year manufacturer’s warrantyNoctua fans are renowned for their impeccable quality and outstanding longevity. Like all Noctua fans, the NF-A4x20 features an MTTF of more than 150.000 hours rating and comes with a full 6-year manufacturer’s warranty. |
Kabinettvifte
-
Noctua NA-SAV2 Anti-Vibration Mounts - Black - Lydisolering Skruer - Svart
På lager - 1-3 dager til levering119,00 kr -
Noctua NA-SAV2 Anti-Vibration Mounts - Lydisolering Skruer - Brun
Bestillingsvare, 13-15 dager til forsendelse117,00 kr -
Noctua NA-SAV2 Anti-Vibration Mounts - Red - Lydisolering Skruer - Rød
Bestillingsvare, 13-15 dager til forsendelse118,00 kr
-
Noctua NA-SAV2 Anti-Vibration Mounts - White - Lydisolering Skruer - Hvit
Bestillingsvare, 13-15 dager til forsendelse119,00 kr -
Noctua NA-SAV2 Anti-Vibration Mounts - Yellow - Lydisolering Skruer - Gul
Bestillingsvare, 13-15 dager til forsendelse118,00 kr -
Noctua NA-SAV2 Anti-Vibration Mounts - Green - Lyddemper innsats - Grønn
Bestillingsvare, 13-15 dager til forsendelse118,00 kr -
Noctua NA-SAV2 Anti-Vibration Mounts - Blue - Lydisolering Skruer - Blå
Bestillingsvare, 13-15 dager til forsendelse119,00 kr
Produsent
Varenummer
2595710
Model
NF-A4x20 FLX
Ean
9010018100112
Til produsentens hjemmeside
Produktbeskrivelse
Noctua NF-A4x20 FLX - kabinettvifte
Produkttype
Kabinettvifte
Pakkeinnhold
Spindel, Ultra-Low-Noise Adaptor (U.L.N.A.), Low-Noise Adaptor (L.N.A.), OmniJoin Adaptor Set, forlengelseskabel (30 cm), NA-AV3 antivibrasjonsmonteringer
Viftediameter
40 mm
Viftehøyde
20 mm
Viftelager
SSO2-lager
Rotasjonshastighet
5000 rpm
Luftstrøm
9.4 cfm
Støynivå
14.9 dBA
Strømkobling
3-pinsplugg
Nominell spenning
12 V
Funksjoner
Advanced Acoustic Optimisation (AAO), flytakselerasjonskanaler, integrerte vibrasjonsdempeputer, Smooth Commutation Drive 2 (SCD2)-teknologi, Stepped Inlet Design, Inner Surface Microstructures
Dimensjoner (BxDxH)
4 cm x 4 cm x 2 cm
Egenskaper
Fleksibilitet
Fabrikantgaranti
6 års garanti
Generelt
Produkttype
Kabinettvifte
Pakkeinnhold
Spindel, Ultra-Low-Noise Adaptor (U.L.N.A.), Low-Noise Adaptor (L.N.A.), OmniJoin Adaptor Set, forlengelseskabel (30 cm), NA-AV3 antivibrasjonsmonteringer
Bredde
4 cm
Dybde
4 cm
Høyde
2 cm
Kjølelegeme og vifte
Viftediameter
40 mm
Viftehøyde
20 mm
Viftelager
SSO2-lager
Rotasjonshastighet
5000 rpm
Luftstrøm
9.4 cfm
Støynivå
14.9 dBA
Strømkobling
3-pinsplugg
Nominell spenning
12 V
Nominell strøm
0.05 A
Strømforbruk
0.6 W
Funksjoner
Advanced Acoustic Optimisation (AAO), flytakselerasjonskanaler, integrerte vibrasjonsdempeputer, Smooth Commutation Drive 2 (SCD2)-teknologi, Stepped Inlet Design, Inner Surface Microstructures
Diverse
Monteringssett
Inkludert
MTBF
150,000 time(r)
Egenskaper
Fleksibilitet
