Kabinettvifte - Noctua NF-A9 PWM - Kabinettvifte - 92mm - Brun - 22 dBA - NF-A9 PWM
Varenummer: 2469404
NF-A9 PWM
NF-A9 PWM
NF-A9 PWM
NF-A9 PWM
NF-A9 PWM

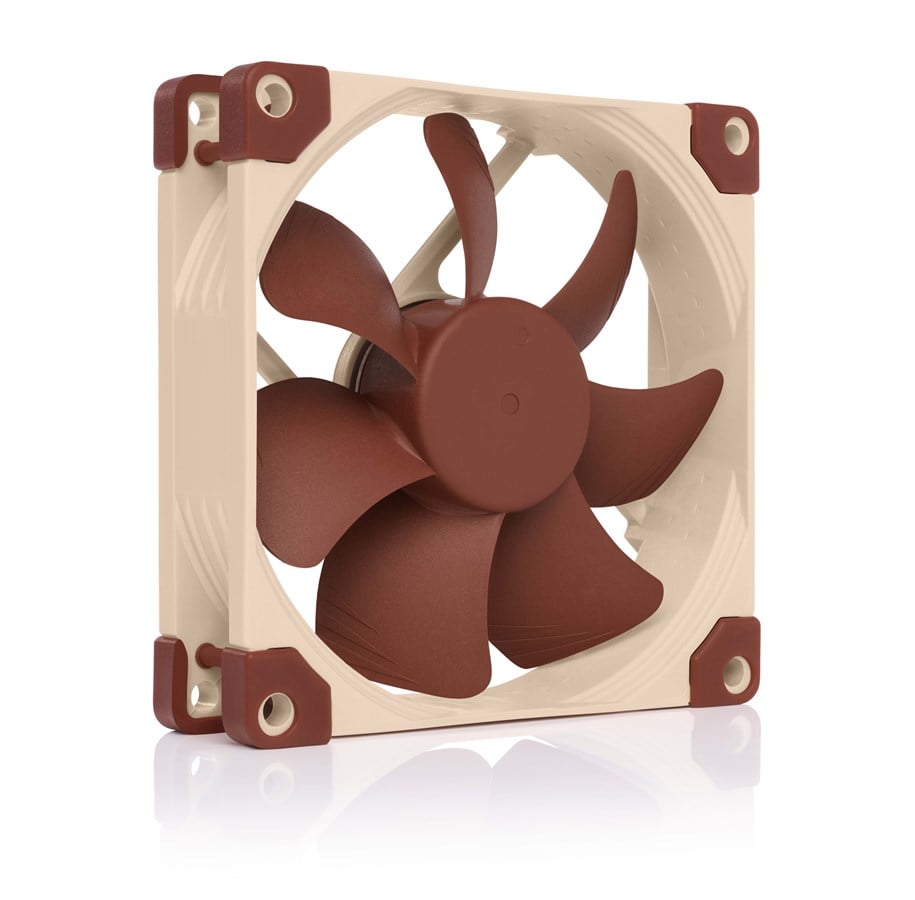

Noctua NF-A9 PWM - Kabinettvifte - 92mm - Brun - 22 dBA

Skapkjøler, størrelse: 92mm x 92mm x 25mm (HxBxD), støynivå: 16,3 - 22,8 dBA, luftstrøm: 36,8 -46.4 CFM, vifte RPM:400-2000 ±10%, PWM-kontrollert med en firepinnet hovedkorttilkobling og brun i farge.

Les mer
På lager
233,00 kr 186,40 kr eksl. mva
Rimeligste private frakt: 99,00 kr
14 stk. På lager - 1-4 dager til levering
proshop-xmas-gran proshop-xmas-gran

UTVIDET JULERETURRETT FRAM TIL 31. JANUAR 2025

Proshop tilbyr utvidet Juleretur til privatkunder på ordre kjøpt i perioden 1. november til 23. desember 2024. Les betingelsene her.

The NF-A9 is a highly optimised, premium quality quiet 92mm fan. Featuring Noctua’s AAO (Advanced Acoustic Optimisation) frame as well as sophisticated aerodynamic design measures such as Flow Acceleration Channels, the NF-A9 further improves the renowned quiet cooling performance of the award-winning NF-B9. The PWM version sports Noctua’s custom designed NE-FD1 IC for fully automatic speed control via 4-pin fan headers and comes with a Low-Noise-Adaptor to reduce the maximum speed during PWM control from 2000 to 1550rpm. Its superb running smoothness, reference-class SSO2 bearing and Noctua’s trusted premium quality make it an elite choice for the highest demands.

Succeeding the award-winning NF-B9

Succeeding the award-winning NF-B9

Noctua's NF-B9 fan has become a default-choice among PC enthusiasts looking for a premium quality quiet 92mm fan. Thanks to its thoroughgoing aerodynamic optimisations, the NF-A9 provides higher static pressure and an even better airflow/noise ratio than its much acclaimed predecessor.
Flow Acceleration Channels

Flow Acceleration Channels

The NF-A9 impeller features suction side Flow Acceleration Channels. By speeding up the airflow at the crucial outer blade regions, this measure reduces suction side flow separation and thus leads to better efficiency and lower vortex noise.
AAO frame

AAO frame

Noctua's AAO (Advanced Acoustic Optimisation) frames feature integrated anti-vibration pads as well as Noctua's proprietary Stepped Inlet Design and Inner Surface Microstructures, both of which further refine the fan's performance/noise efficiency.
Stepped Inlet Design

Stepped Inlet Design

Noctua's Stepped Inlet Design adds turbulence to the influx in order to facilitate the transition from laminar flow to turbulent flow, which reduces tonal intake noise, improves flow attachment and increases suction capacity, especially in space-restricted environments.
Inner Surface Microstructures

Inner Surface Microstructures

With the tips of the fan blades ploughing through the boundary layer created by the Inner Surface Microstructures, flow separation from the suction side of the blades is significantly suppressed, which results in reduced blade passing noise and improved airflow and pressure efficiency.
Integrated anti-vibration pads

Integrated anti-vibration pads

Integrated anti-vibration pads made from extra-soft silicone minimise the transmission of minute vibrations while maintaining full compatibility with all standard screws and other mounting systems.
SSO2 Bearing

SSO2 Bearing

The NF-A9 features the further optimised second generation of Noctua's renowned, time-tested SSO bearing. With SSO2, the rear magnet is placed closer to the axis to provide even better stabilisation, precision and durability.
Custom-designed PWM IC with SCD

Custom-designed PWM IC with SCD

Supporting fully automatic PWM speed control, the NF-A9 PWM uses Noctua's novel, custom-designed NE-FD1 PWM IC that integrates Smooth Commutation Drive (SCD) technology. By providing smoother torque impulses, SCD suppresses PWM switching noises and thus makes the fan quieter at low speeds.
Stops at 0% PWM

Stops at 0% PWM

When the fan is set to 0% PWM duty cycle by the motherboard or PWM fan controller, it will stop. This makes it ideal for creating setups with semi-passive cooling that automatically turn the fans off and thus run completely silent at idle if thermals allow.
Low-Noise Adaptor

Low-Noise Adaptor

The NF-A9 PWM is supplied with a (L.N.A.) that reduces the maximum fan speed from 2000 to 1550rpm. The L.N.A. can be used either to run the fan at a fixed speed of 1550rpm or to cap the maximum speed when using automatic PWM control.
Extensive cabling options

Extensive cabling options

The fan's short 20cm primary cable minimises cable clutter in typical applications while the supplied 30cm extension provides extended reach when necessary. Both cables are fully sleeved and a 4-pin y-cable allows the connection of a second NF-A9 PWM fan to the same PWM fan header for automatic control.
6-year manufacturer’s warranty

6-year manufacturer’s warranty

Noctua fans are renowned for their impeccable quality and outstanding longevity. Like all Noctua fans, the NF-A9 features an MTTF of more than 150.000 hours rating and comes with a full 6-year manufacturer’s warranty.

Produsent
Varenummer
2469404
Model
NF-A9 PWM
Ean
4716123315513
Til produsentens hjemmeside
Produktbeskrivelse
Noctua NF-A9 PWM - kabinettvifte
Produkttype
Kabinettvifte
Pakkeinnhold
Low-Noise Adaptor (L.N.A.), Y-Split-kabel, 4 vibrasjonsisolatorer, 4 x skruer, forlengelseskabel (30 cm)
Viftediameter
92 mm
Viftehøyde
25 mm
Viftelager
SSO2-lager
Rotasjonshastighet
400-2000 rpm
Luftstrøm
46.4 cfm
Støynivå
22.8 dBA
Strømkobling
4-pins viftekontakt
Nominell spenning
12 V
Funksjoner
Pulsbreddemodulerings-(PWM)-støtte, Advanced Acoustic Optimisation (AAO), flytakselerasjonskanaler, Smooth Commutation Drive (SCD)-teknologi, integrerte vibrasjonsdempeputer, Stepped Inlet Design, Inner Surface Microstructures
Dimensjoner (BxDxH)
9.2 cm x 9.2 cm x 2.5 cm
Fabrikantgaranti
6 års garanti

Generelt

Produkttype
Kabinettvifte
Pakkeinnhold
Low-Noise Adaptor (L.N.A.), Y-Split-kabel, 4 vibrasjonsisolatorer, 4 x skruer, forlengelseskabel (30 cm)
Bredde
9.2 cm
Dybde
9.2 cm
Høyde
2.5 cm

Kjølelegeme og vifte

Viftediameter
92 mm
Viftehøyde
25 mm
Viftelager
SSO2-lager
Rotasjonshastighet
400-2000 rpm
Luftstrøm
46.4 cfm
Lufttrykk
2.28 mm
Støynivå
22.8 dBA
Strømkobling
4-pins viftekontakt
Nominell spenning
12 V
Nominell strøm
0.1 A
Strømforbruk
1.2 W
Kabellengde
20 cm
Funksjoner
Pulsbreddemodulerings-(PWM)-støtte, Advanced Acoustic Optimisation (AAO), flytakselerasjonskanaler, Smooth Commutation Drive (SCD)-teknologi, integrerte vibrasjonsdempeputer, Stepped Inlet Design, Inner Surface Microstructures

Diverse

Monteringssett
Inkludert
MTBF
150,000 time(r)

Ovenstående informasjon/spesifikasjoner er veiledende og kan uten varsel bli endret av produsenten. Det tas forbehold om trykkfeil og illustrerende bilder. Enkelte tekster kan være autogenerert eller maskinoversatt, så derfor kan det forekomme tekster som virker misvisende.
