Kabinettvifte - Noctua NF-A9x14 PWM - Kabinettvifte - 92mm - Brun - 19 dBA - NF-A9x14 PWM
Varenummer: 2394153
NF-A9x14 PWM
NF-A9x14 PWM
NF-A9x14 PWM

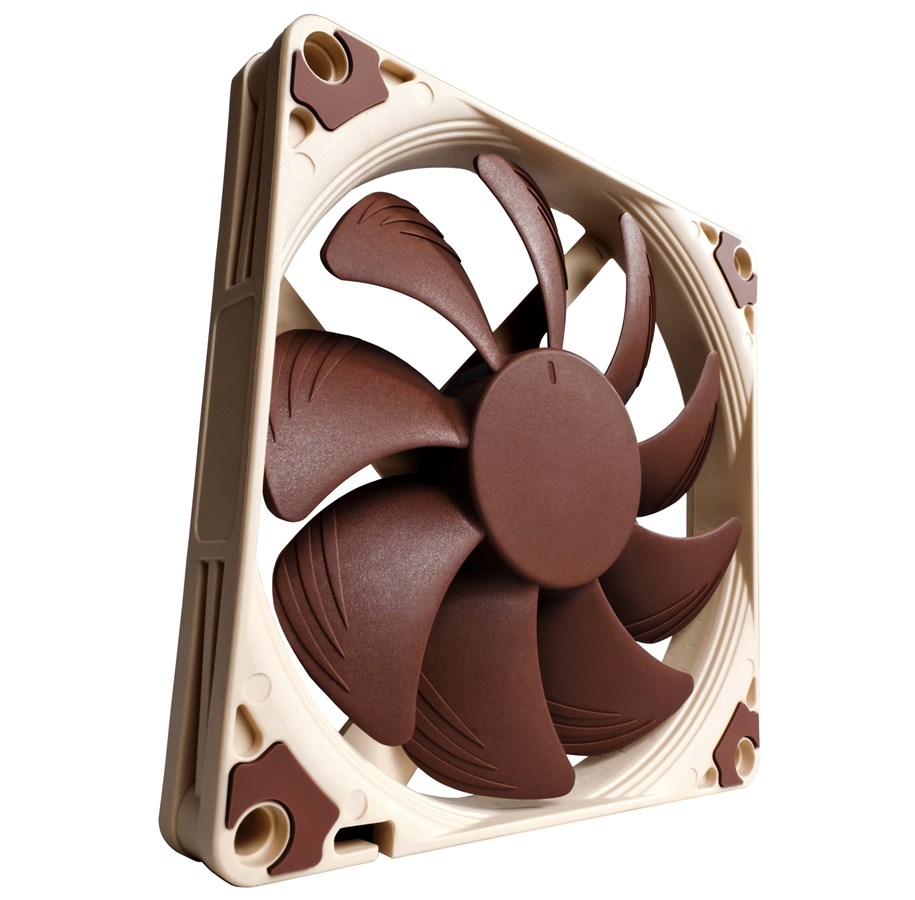

Noctua NF-A9x14 PWM - Kabinettvifte - 92mm - Brun - 19 dBA

Skapkjøler, størrelse: 92mm x 92mm x 14mm (HxBxD), støynivå: 13,5 - 19,9 dBA, luftstrøm: 22.4 -29.7 CFM, vifte RPM:500-2200 ±10%, PWM-kontrollert med en firepinnet hovedkorttilkobling og brun farge.

Les mer
På lager
233,00 kr 186,40 kr eksl. mva
Rimeligste private frakt: 99,00 kr
+15 stk. På lager - 1-4 dager til levering
proshop-xmas-gran proshop-xmas-gran

UTVIDET JULERETURRETT FRAM TIL 31. JANUAR 2025

Proshop tilbyr utvidet Juleretur til privatkunder på ordre kjøpt i perioden 1. november til 23. desember 2024. Les betingelsene her.

Featuring Noctua’s AAO frame and sophisticated aerodynamic design measures such as Flow Acceleration Channels, the NF-A9x14 is a highly optimised, premium quality quiet fan in 92x14mm size. Due to its thickness of only 14mm, the NF-A9x14 is a perfect match for low profile CPU coolers and all other applications that require slimmer fans. Noctua’s custom-designed PWM IC for fully automatic speed control and reference class SSO2 bearings guarantee superb running smoothness and excellent long-term stability. Topped off with modular cabling, a Low-Noise Adaptor and 6 years manufacturer’s warranty, the NF-A9x14 is a premium choice for the highest demands.

14mm low profile design

14mm low profile design

Measuring only 14mm in thickness, the NF-A9x14 is much slimmer than standard 92x25mm fans. This makes it ideal for all applications where standard fans would take up too much space, such as low profile CPU coolers in HTPC builds or server environments.
Flow Acceleration Channels

Flow Acceleration Channels

The NF-A9x14 impeller features suction side Flow Acceleration Channels. By speeding up the airflow at the crucial outer blade regions, this measure reduces suction side flow separation and thus leads to better efficiency and lower vortex noise.
AAO frame

AAO frame

Noctua's AAO (Advanced Acoustic Optimisation) frames feature integrated anti-vibration pads as well as Noctua's proprietary Stepped Inlet Design and Inner Surface Microstructures, both of which further refine the fan's performance/noise efficiency.
Stepped Inlet Design

Stepped Inlet Design

Noctua's Stepped Inlet Design adds turbulence to the influx in order to facilitate the transition from laminar flow to turbulent flow, which reduces tonal intake noise, improves flow attachment and increases suction capacity, especially in space-restricted environments.
Inner Surface Microstructures

Inner Surface Microstructures

With the tips of the fan blades ploughing through the boundary layer created by the Inner Surface Microstructures, flow separation from the suction side of the blades is significantly suppressed, which results in reduced blade passing noise and improved airflow and pressure efficiency.
Integrated Anti-Vibration Pads

Integrated Anti-Vibration Pads

Integrated Anti-Vibration Pads made from extra-soft silicone minimise the transmission of minute vibrations while maintaining full compatibility with all standard mounting systems and fan clips used on heatsinks.
SSO2 Bearing

SSO2 Bearing

The NF-A9x14 features the further optimised second generation of Noctua's renowned, time-tested SSO bearing. With SSO2, the rear magnet is placed closer to the axis to provide even better stabilisation, precision and durability.
Custom-designed PWM IC with SCD

Custom-designed PWM IC with SCD

Supporting fully automatic PWM speed control, the NF-A9x14 uses Noctua's novel, custom-designed NE-FD1 PWM IC that integrates Smooth Commutation Drive (SCD) technology. By providing smoother torque impulses, SCD suppresses PWM switching noises and thus makes the fan quieter at lower speeds.
Stops at 0% PWM

Stops at 0% PWM

When the fan is set to 0% PWM duty cycle by the motherboard or PWM fan controller, it will stop. This makes it ideal for creating setups with semi-passive cooling that automatically turn the fans off and thus run completely silent at idle if thermals allow.
Low-Noise Adaptor

Low-Noise Adaptor

The NF-A9x14 is supplied with a (L.N.A.) that reduces the maximum fan speed from 2200 to 1700rpm. The L.N.A. can be used either to run the fan at a fixed speed of 1200rpm or to cap the maximum speed when using automatic PWM control.
Extensive cabling options

Extensive cabling options

The fan's short 20cm primary cable minimises cable clutter in typical applications while the supplied 30cm extension provides extended reach when necessary. Both cables are fully sleeved and a 4-pin y-cable allows the connection of a second NF-A9x14 fan to the same PWM fan header for automatic control.
6-year manufacturer’s warranty

6-year manufacturer’s warranty

Noctua fans are renowned for their impeccable quality and outstanding longevity. Like all Noctua fans, the NF-A9x14 features an MTTF rating of more than 150.000 hours and comes with a full 6-year manufacturer's warranty.

Produsent
Varenummer
2394153
Model
NF-A9x14 PWM
Ean
4716123314776
Til produsentens hjemmeside
Produktbeskrivelse
Noctua NF-A9x14 PWM - kabinettvifte
Produkttype
Kabinettvifte
Pakkeinnhold
Low-Noise Adaptor (L.N.A.), Y-Split-kabel, 4 vibrasjonsisolatorer, 4 x skruer
Viftediameter
92 mm
Viftehøyde
14 mm
Viftelager
SSO2-lager
Rotasjonshastighet
300-2200 rpm
Luftstrøm
50.5 cfm
Støynivå
19.9 dBA
Strømkobling
4-pins viftekontakt
Nominell spenning
12 V
Fabrikantgaranti
6 års garanti

Generelt

Produkttype
Kabinettvifte
Pakkeinnhold
Low-Noise Adaptor (L.N.A.), Y-Split-kabel, 4 vibrasjonsisolatorer, 4 x skruer

Kjølelegeme og vifte

Viftediameter
92 mm
Viftehøyde
14 mm
Viftelager
SSO2-lager
Rotasjonshastighet
300-2200 rpm
Luftstrøm
50.5 cfm
Lufttrykk
1.64 mm
Støynivå
19.9 dBA
Strømkobling
4-pins viftekontakt
Nominell spenning
12 V
Nominell strøm
0.11 A

Diverse

MTBF
150,000 time(r)
