Kabinettvifte - Noctua NF-S12A FLX - Kabinettvifte - 120mm - Brun - 17 dBA - NF-S12A FLX
Varenummer: 2407421
NF-S12A FLX
NF-S12A FLX

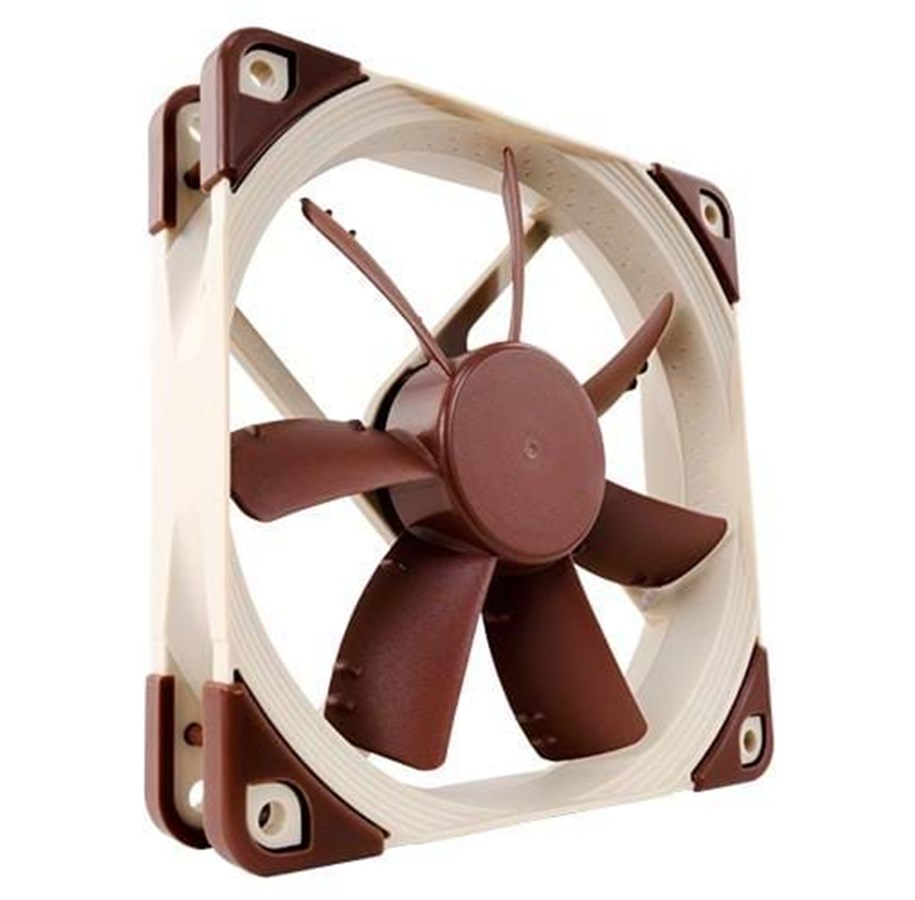

Noctua NF-S12A FLX - Kabinettvifte - 120mm - Brun - 17 dBA

Skapkjøler, størrelse: 120mm x 120mm x 25mm (HxBxD), støynivå: 17,8 dBA, luftstrøm: 63,3 CFM, vifte RPM: 700 - 1200 ±10%, med en tre-pin hovedkort og fire-pin Molex-tilkobling, brun.

Les mer
290,00 kr 232,00 kr eksl. mva
Rimeligste private frakt: 99,00 kr
Bestillingsvare, 13-15 dager til forsendelse

Award-winning S12 design

Award-winning S12 design

The NF-S12A features the third evolution of Noctua's classic Straight Blade Design that has earned its S12 series countless recommendations from hardware journalists and enthusiasts around the world. Further optimised for even better airflow/noise efficiency, it makes the NF-S12A an ideal quiet case fan.
Anti-Stall Knobs

Anti-Stall Knobs

The NF-S12A's Anti-Stall Knobs reduce flow separation phenomena in medium to high impedance situations and thereby increase the fan's stall margin. This means that the NF-S12A is even more versatile than its renowned predecessor and can achieve better performance on heatsinks and radiators.
AAO frame

AAO frame

Noctua's AAO (Advanced Acoustic Optimisation) frames feature integrated anti-vibration pads as well as Noctua's proprietary Stepped Inlet Design and Inner Surface Microstructures, both of which further refine the fan's performance/noise efficiency.
Stepped Inlet Design

Stepped Inlet Design

Noctua's Stepped Inlet Design adds turbulence to the influx in order to facilitate the transition from laminar flow to turbulent flow, which reduces tonal intake noise, improves flow attachment and increases suction capacity, especially in space-restricted environments.
Inner Surface Microstructures

Inner Surface Microstructures

With the tips of the fan blades ploughing through the boundary layer created by the Inner Surface Microstructures, flow separation from the suction side of the blades is significantly suppressed, which results in reduced blade passing noise and improved airflow and pressure efficiency.
Integrated anti-vibration pads

Integrated anti-vibration pads

Integrated anti-vibration pads made from extra-soft silicone minimise the transmission of minute vibrations while maintaining full compatibility with all standard screws and other mounting systems.
Smooth Commutation Drive 2

Smooth Commutation Drive 2

The latest version of Noctua's advanced Smooth Commutation Drive system ensures superb running smoothness by eliminating torque variations and switching noises. This makes the NF-S12A remarkably quiet even at very close distances.
3 speed settings for full flexibility

3 speed settings for full flexibility

Providing 1200, 900 and 700 rpm speed settings via the supplied Low-Noise and Ultra-Low-Noise Adapters, the NF-S12A FLX (Flexibility) can be fine-tuned for superior airflow or maximum quietness.
Extensive cabling options

Extensive cabling options

The fan's short 20cm primary cable minimises cable clutter in typical applications while the supplied 30cm extension provides extended reach when necessary. Both cables are fully sleeved.
SSO2 Bearing

SSO2 Bearing

The NF-S12A features the further optimised second generation of Noctua's renowned, time-tested SSO bearing. With SSO2, the rear magnet is placed closer to the axis to provide even better stabilisation, precision and durability.
Metal bearing shell

Metal bearing shell

In order to guarantee the highest possible degree of manufacturing precision, minimum tolerance and excellent long-term stability, the NF-S12A sports a CNC milled bearing shell made entirely from brass.
6-year manufacturer’s warranty

6-year manufacturer’s warranty

Noctua fans are renowned for their impeccable quality and outstanding longevity. Like all Noctua fans, the NF-S12A features an MTTF rating of more than 150.000 hours and comes with a full 6-year manufacturer's warranty.

Kabinettvifte

Vis flere

Produsent
Varenummer
2407421
Model
NF-S12A FLX
Ean
4716123314905
Til produsentens hjemmeside
Produktbeskrivelse
Noctua NF-S12A FLX - kabinettvifte
Produkttype
Kabinettvifte
Pakkeinnhold
Ultra-Low-Noise Adaptor (U.L.N.A.), Low-Noise Adaptor (L.N.A.), 4 vibrasjonsisolatorer, 3- til 4-pins strømadapter, forlengelseskabel (30 cm)
Viftediameter
120 mm
Viftehøyde
25 mm
Viftelager
SSO2-lager
Rotasjonshastighet
700-1200 rpm
Luftstrøm
63.3 cfm
Støynivå
17.8 dBA
Strømkobling
3-pinsplugg
Dimensjoner (BxDxH)
12 cm x 12 cm x 2.5 cm
Fabrikantgaranti
6 års garanti

Generelt

Produkttype
Kabinettvifte
Pakkeinnhold
Ultra-Low-Noise Adaptor (U.L.N.A.), Low-Noise Adaptor (L.N.A.), 4 vibrasjonsisolatorer, 3- til 4-pins strømadapter, forlengelseskabel (30 cm)
Bredde
12 cm
Dybde
12 cm
Høyde
2.5 cm

Kjølelegeme og vifte

Viftediameter
120 mm
Viftehøyde
25 mm
Viftelager
SSO2-lager
Rotasjonshastighet
700-1200 rpm
Luftstrøm
63.3 cfm
Lufttrykk
1.19 mm
Støynivå
17.8 dBA
Strømkobling
3-pinsplugg
Startspenning
12 V

Diverse

Monteringssett
Inkludert
MTBF
150,000 time(r)
