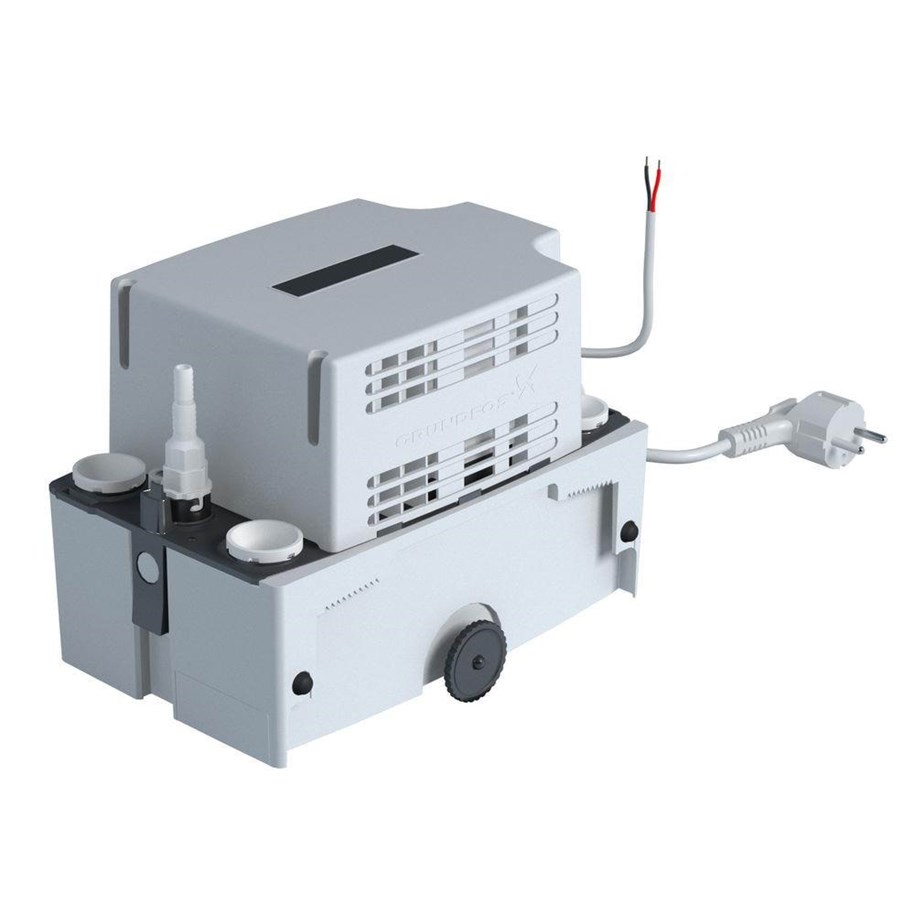

Grundfos conlift1
CONLIFT1Conlift1ApplicationsThe Conlift1 is suitable for the pumping of condensatewhich is collected below sewer level or which cannotflow to the sewage system or drain of the building bymeans of a natural downward slope.Typical applications:• Condensate boilers. A 200 kW boiler can be drainedup to 5 m duty point.• For condensate with a pH value above 2.5.• For condensate from air-conditioning systems,cooling and refrigeration systems, air dehumidifiersand evaporators.• For condensate with a pH value below 2.5, useConlift2 pH+.Features• Fully sealed against moisture and evaporation.• Quick and easy installation.• Very silent and smooth operation.• Can be mounted on the floor or on a wall.• Pre-assembled non-return valve.• Pump operation test button.• Incorporates high-water float switch.• Fully automatic operation.• Inlet and discharge hose connectors included.Liquid:Maximum liquid temperature:50° °CTechnical:Curve tolerance:ISO 9906:2012 Grade 3BInstallation:Pump inlet:18-30Pump outlet:8-10Electrical data:Power input - P1:75 WRated voltage:1 x 230 VRated current:0.65 AEnclosure class (IEC 34-5):IP24Insulation class (IEC 85):FLength of cable:1.7 mType of cable plug:SCHUKOTank:Total volume of tank(s):2.65 lOthers:Net weight:4.1 kg
