Komponenter for switchboxes og skap - ABB Af09-30-10-11 24-60vac-dc contactor - 1SBL137001R1110
Varenummer: 2755516

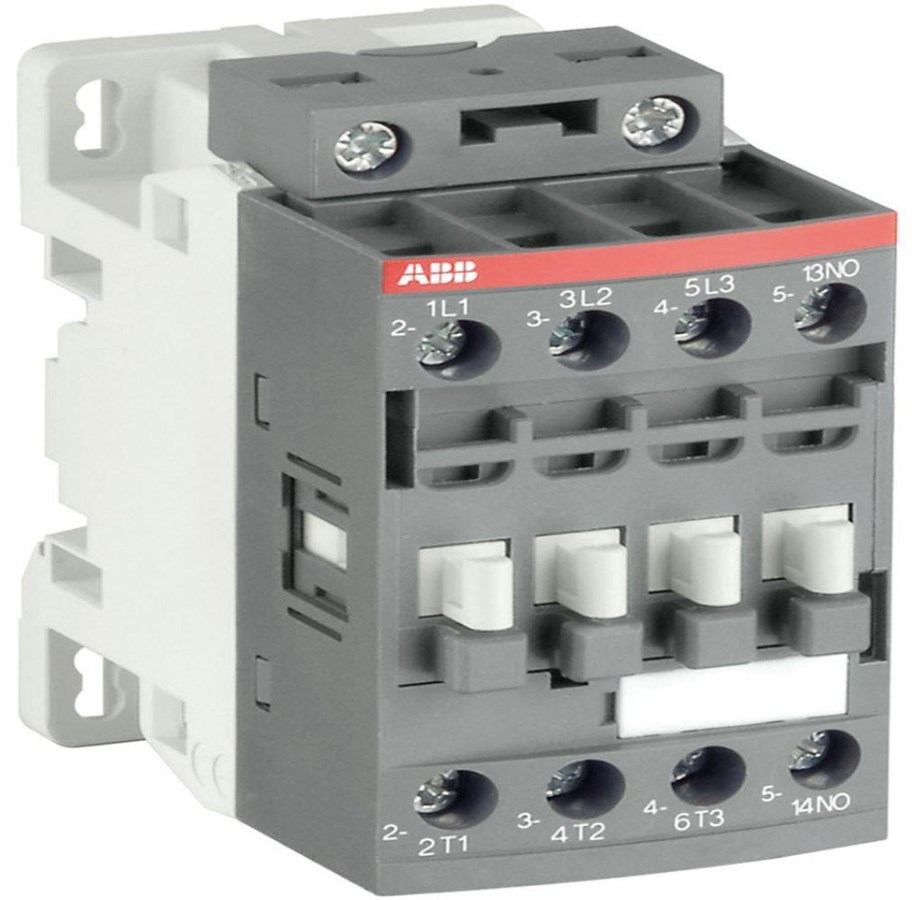

ABB Af09-30-10-11 24-60vac-dc contactor

AF09 contactors are used for controlling power circuits up to 690 V AC and 220 V DC. They are mainly used for controlling 3-phase motors, non-inductive or slightly inductive loads. AF... contactors include an electronic coil interface accepting a wide control voltage Uc min. ... Uc max. Only four coils cover control voltages between 24...500 V 50/60 Hz or 20...500 V DC. AF contactors can manage large control voltage variations. One coil can be used for different control voltages used worldwide without any coil change. AF contactors have built-in surge protection and do not require additional surge suppressors. The AF... series 1-stack 3-pole contactors are of the block type design. - Main poles and auxiliary contact blocks: 3 main poles, 1 built-in auxiliary contact, front and side-mounted add-on auxiliary contact blocks (mechanically-linked auxiliary contacts compliant with Annex L of IEC 60947-5-1. N.C. mirror contacts compliant with Annex F of IEC 60947-4-1) - Control circuit: AC or DC operated - Accessories: a wide range of accessories is available. Note: AF..-30-..-11 not suitable for a direct control by PLC-output. AF..-30-..-11 contactor type available in some countries: please consult your ABB representative.

Les mer
339,00 kr 271,20 kr eksl. mva
Rimeligste private frakt: 99,00 kr
Fjernlager, 3-5 dager til forsendelse
proshop-xmas-gran proshop-xmas-gran

UTVIDET JULERETURRETT
FRAM TIL 31. JANUAR 2025

Proshop tilbyr utvidet Juleretur til privatkunder på ordre kjøpt i perioden 1. november til 23. desember 2024. Les betingelsene her.

For å få levert varene dine før jul, må du bestille innen 17. desember kl. 14. Dette gjelder for postnummer 0 til 3999, varene må være på lager og leveres av PostNord. Bor du på et postnummer høyere enn 3999, må du bestille innen 16. desember kl. 14.

Contactor 3-pole 4kW, 400V AC, control voltage 24-60V AC/20-60V DC, auxiliary contact 1NO, screw connection AF09-30-10-11 24-60V50/60HZ 20-60VDC. Product description: Contactors AF09-AF38 for motor operation or purely resistive loads. The contactors can handle a wide range of coil voltages as well as AC/DC voltages on the same contactor. Coil voltages from 20VDC to 500VDC and from 24VAC to500 VAC. Flexible coil voltage connection can be mounted at the top, bottom or both locations. There is an integrated RC circuit in the contactor so this is not needed as an accessory. The contactors can be combined with motor protection or overload relays. All contactors are in a width of45 mm.There are a wide range of accessories that can be mounted such as auxiliary contacts,timers,reversing connections and Y/D connections.Thecontactorscanbe directlymountedon DIN rail or on base plate.Rated power for3-phase motorAC -3380 -400 Vfrom4 kW up to18 .5 kW.AC -1operationfrom25Aup to50A.Technical specifications:SuitableforDINrailmounting:FALSERatedoperatingpowerAC -3400 V :4Numberofclosingmaincontacts:3NumberofbreakingmaincontactsNC :0

Produsent
Varenummer
2755516
Model
1SBL137001R1110
Ean
3471523110014
Inngangsspenning (min.)
24 V
Inngangsspenning (maks.)
690 V
AC-inngangsfrekvens
50 - 60 Hz
Innput-strøm
25 A
Formfaktor
Vegg-montert
Produktfarge
Grå
Sertifisering
IEC 60947-1 / 60947-4-1 and EN 60947-1 / 60947-4-1, UL 508, CSA C22.2 N°14
Driftstemperatur (T-T)
-60 - 80 °C
Bredde
45 mm
Dybde
77 mm
Høyde
86 mm
Vekt
270 g
Pakkebredde
87 mm
Pakkedybde
79 mm
Pakkehøyde
47 mm
Pakkevekt
270 g

Energihåndtering

Inngangsspenning (min.)
24 V
Inngangsspenning (maks.)
690 V
AC-inngangsfrekvens
50 - 60 Hz
Innput-strøm
25 A

Design

Formfaktor
Vegg-montert
Produktfarge
Grå
Sertifisering
IEC 60947-1 / 60947-4-1 and EN 60947-1 / 60947-4-1, UL 508, CSA C22.2 N°14

Miljømessige forhold

Driftstemperatur (T-T)
-60 - 80 °C

Vekt og dimensjoner

Bredde
45 mm
Dybde
77 mm
Høyde
86 mm
Vekt
270 g

Datainnpakking

Pakkebredde
87 mm
Pakkedybde
79 mm
Pakkehøyde
47 mm
Pakkevekt
270 g

Ovenstående informasjon/spesifikasjoner er veiledende og kan uten varsel bli endret av produsenten. Det tas forbehold om trykkfeil og illustrerende bilder. Enkelte tekster kan være autogenerert eller maskinoversatt, så derfor kan det forekomme tekster som virker misvisende.
