Komponenter for switchboxes og skap - ABB Af26-30-00-13 100-250vac-dc contactor - 1SBL237001R1300
Varenummer: 2755533

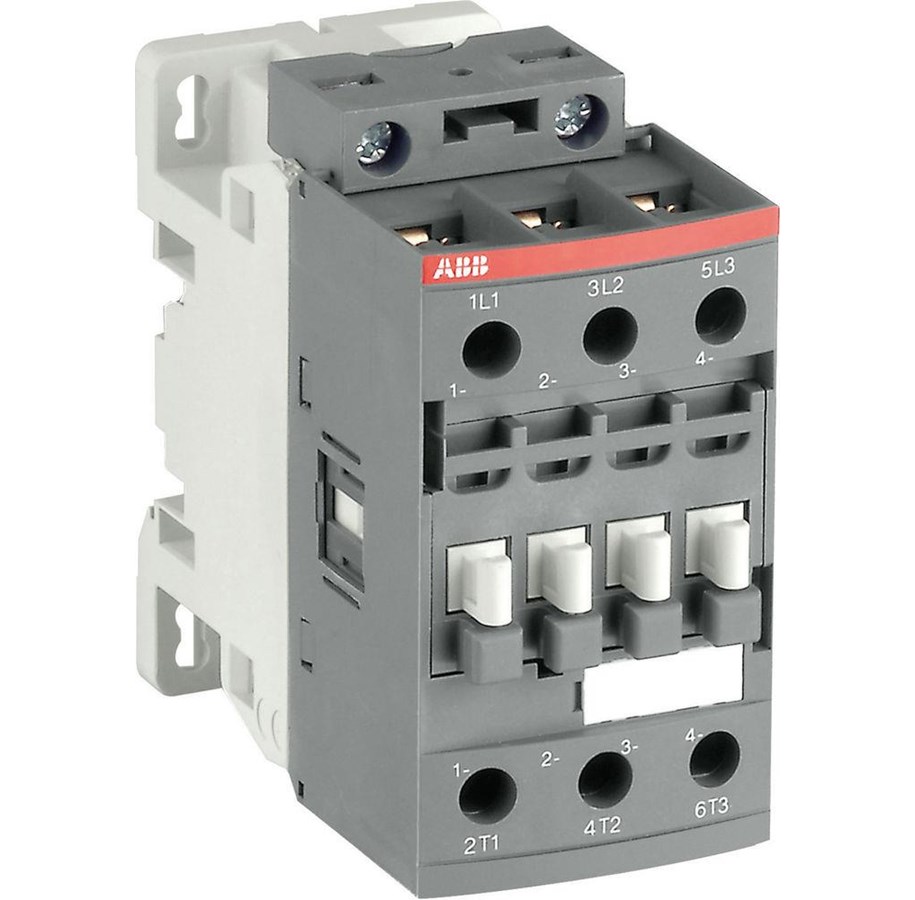

ABB Af26-30-00-13 100-250vac-dc contactor

AF26 contactors are used for controlling power circuits up to 690 V AC and 220 V DC. They are mainly used for controlling 3-phase motors, non-inductive or slightly inductive loads. AF... contactors include an electronic coil interface accepting a wide control voltage Uc min. ... Uc max. Only four coils cover control voltages between 24...500 V 50/60 Hz or 20...500 V DC. AF contactors can manage large control voltage variations. One coil can be used for different control voltages used worldwide without any coil change. AF contactors have built-in surge protection and do not require additional surge suppressors. The AF... series 1-stack 3-pole contactors are of the block type design. - Main poles and auxiliary contact blocks: 3 main poles, front and side-mounted add-on auxiliary contact blocks (mechanically-linked auxiliary contacts compliant with Annex L of IEC 60947-5-1. N.C. mirror contacts compliant with Annex F of IEC 60947-4-1) - Control circuit: AC or DC operated - Accessories: a wide range of accessories is available.

Les mer
742,00 kr 593,60 kr eksl. mva
Rimeligste private frakt: 99,00 kr
Fjernlager, 2-4 dager til forsendelse

Contactor 3-pole 11kW, 400V AC, control voltage 100-250V AC/DC, screw connection AF26-30-00-13 100-250V50/60HZ-DC. Product description: Contactors AF09-AF38 for motor operation or purely resistive loads. The contactors can handle a wide range of coil voltages as well as AC/DC voltages on the same contactor. Coil voltages from 20VDC to 500VDC and from 24VAC to 500VAC. Flexible coil voltage connection, can be mounted at the top, bottom or both locations. There is an integrated RC circuit in the contactor so this is not needed as an accessory. The contactors can be combined with motor protection or overload relays. All contactors are in a width of45 mm.There are many accessories that can be mounted such as auxiliary contacts,timers,reversing connections and Y/D connections.Thecontactorscanbe directly mounted on DIN rail or on base plate.Rated power for three-phase motor AC-3 at380 -400 Vfrom4 kW up to18 .5 kW.AC -1 operation from25Aup to50A.Technical specifications: Suitable for DIN rail mounting: FALSE Rated operating power AC -3 ,400 V :11 Number of closing main contacts :3 Number of breaking main contacts NC :0

Produsent
Varenummer
2755533
Model
1SBL237001R1300
Ean
3471523110939
Inngangsspenning (min.)
100 V
Inngangsspenning (maks.)
250 V
AC-inngangsfrekvens
50 - 60 Hz
Formfaktor
Vegg-montert
Bredde
45 mm
Dybde
77 mm
Høyde
86 mm
Vekt
310 g

Energihåndtering

Inngangsspenning (min.)
100 V
Inngangsspenning (maks.)
250 V
AC-inngangsfrekvens
50 - 60 Hz

Design

Formfaktor
Vegg-montert

Vekt og dimensjoner

Bredde
45 mm
Dybde
77 mm
Høyde
86 mm
Vekt
310 g
