Komponenter for switchboxes og skap - Danfoss Devireg 330 -10 / +10 c din rail thermostat - 140F1070
Varenummer: 2759795

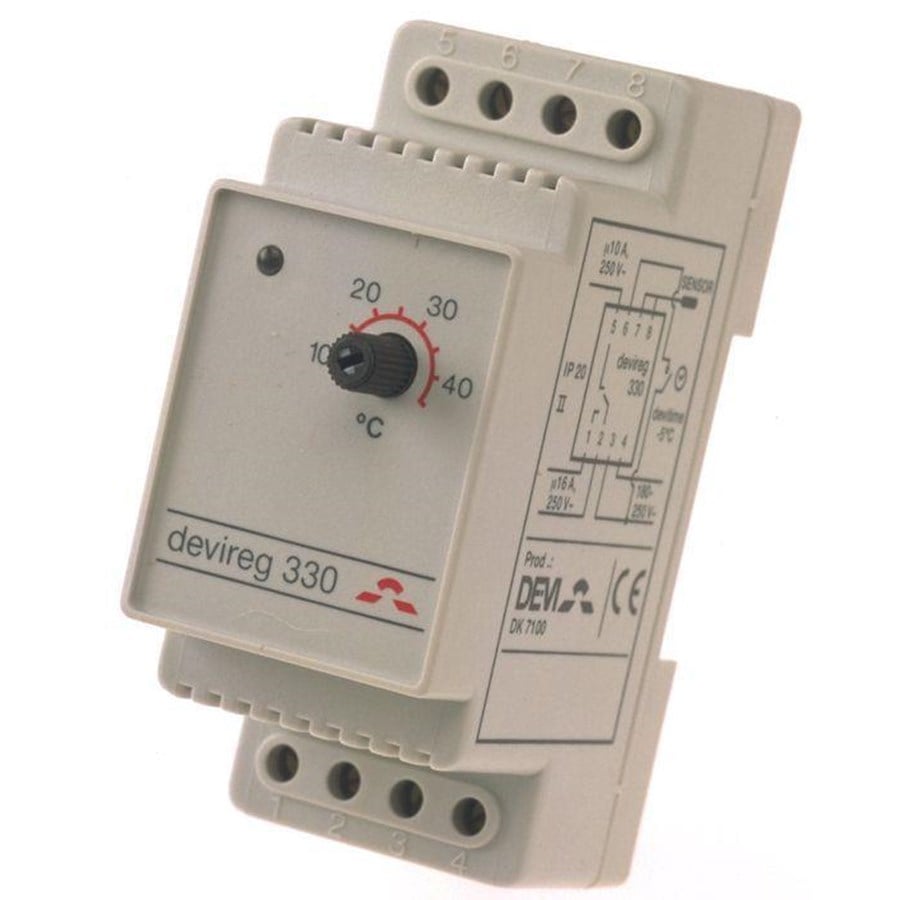

Danfoss Devireg 330 -10 / +10 c din rail thermostat

DEVIreg TM 330 is a series of simple electronic thermostats for installation in cabinets withDIN rail bracket. To measure and control the desired temperature, either one must be usedwiring sensor (in the kit) or an external or space sensor. The thermostat must be installedafter a multi-pole switch. It has an LED indicator that shows standby periods (green light) andheating periods (red light).DEVIreg TM 330 has a relay with two contact pairs - NO (normally open) and NC (normally closed) andis intended to be used for heating and cooling systems. In addition, the NO and NC contact pairsnot supplied by a voltage source inside the thermostats and can be used forcontrol systems with any voltage up to 250 V.The series is designed with thermostats in three temperature ranges.DEVIreg TM 330 (-10 - +10 ° C) is primarily used to control a lower temperature range such asantifreeze. This thermostat has a knob for adjusting the temperature setting with a scalefrom -10 to +10 ° C. Special outdoor wire with white wire, 2,5m, is included in a set.

Les mer
1 740,00 kr 1 392,00 kr eksl. mva
Gratis frakt (privatkunde)
Fjernlager, 3-5 dager til forsendelse
proshop-xmas-gran proshop-xmas-gran

UTVIDET JULERETURRETT FRAM TIL 31. JANUAR 2025

Proshop tilbyr utvidet Juleretur til privatkunder på ordre kjøpt i perioden 1. november til 23. desember 2024. Les betingelsene her.

Thermostat DEVIreg 330 -10°C/+10°C - 1C Product description: DEVIregTM 330 is a series of simple, electronic thermostats for installation in electrical cabinets with DIN rail mounting. To measure and control the desired temperature, either a single wire sensor (included in the set) or an external outdoor sensor or room sensor must be used. The thermostat must be installed after a multipole switch. It has an LED indicator that shows standby periods (green light) and heating periods (red light). DEVIregTM 330 has a relay with two contact pairs – NO (normally open) and NC (normally closed) and is designed to be used for heating and cooling systems. In addition, the NO- and NC-contact pairs are not voltage supplied via a voltage coil inside the thermostats and can be used for control systems with any voltage up to 250 V.The series is designed with thermostats in three temperature ranges.DEVIregTM 330 (-10 - +10 °C) is primarily used to control lower temperature ranges such as frost protection. This thermostat has a button for adjusting the temperature setting with a scale from -10 to +10 °C. A special outdoor sensor with white wire, 2.5m long, is included in the set.Technical specifications: Width (mm): 92Height (mm): 92Sensor type: NTCMax operating temperature(°C):50

Produsent
Varenummer
2759795
Model
140F1070
Ean
5703466209219
