Varenummer: 2748799

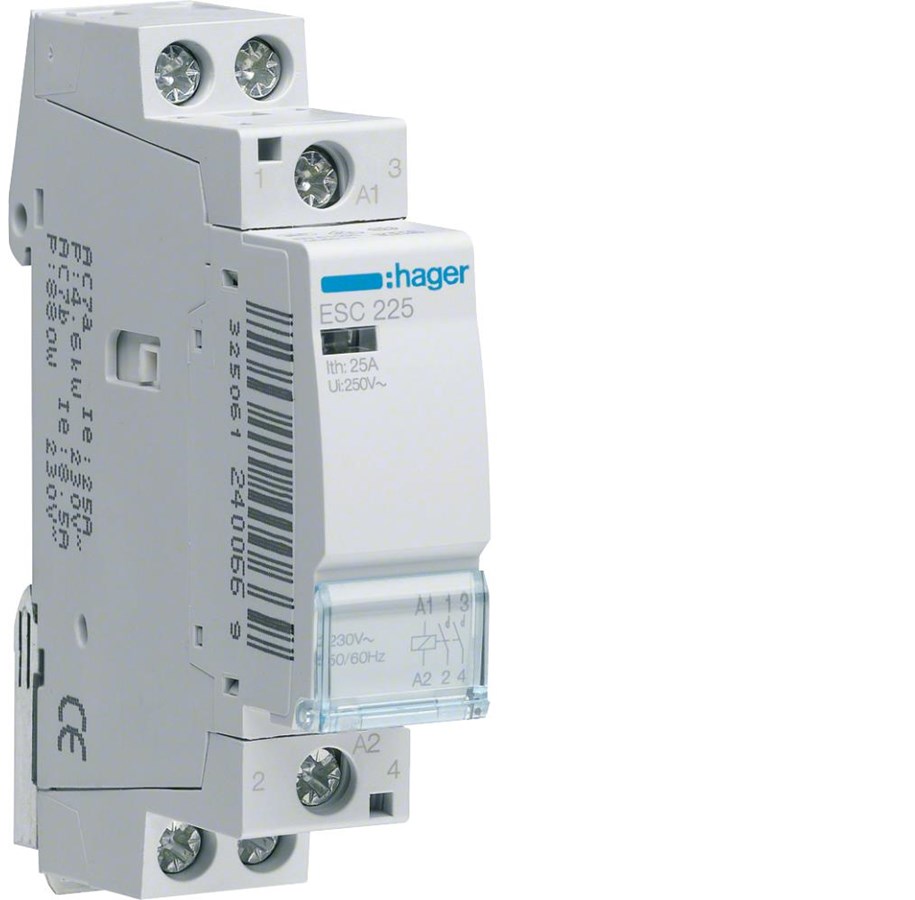

Hager Humfree contactor 25a 2no 230v 1m

Name: Hager Humfree contactor 25a 2no 230v 1m
Brand: Hager
SKU: 2748799
Price: 423.00 NOK
Availability: InStock

Humfree contactor 25A 2NO 230V Humfree for the control of circuitsGuarenteed silence during the entire life of the productCan be equipped with auxiliary contact and sealig capsRated operational voltage: 230 V Frequency: 50/60Hz Type of connection: With screw Operating temperature: -10 to 50 ° C Storage temperature: -40 to 80 ° C Connection cross-sect rigid cable: 1 / 10mm2 Connection cross-sect. flexible cable: 1 / 6mm2 To reduce the mutual heating when using several contactorsit is recommended to use the LZ060 spacerNumber of modules: 1According to standard: EN 61095

Les mer

423,00 kr 338,40 kr eksl. mva

Rimeligste private frakt: 99,00 kr

Fjernlager, 2-4 dager til forsendelse

Contactor 25A 2NO 230VAC 1M noiseless Product description: Contactor 25A with two normally open contacts, suitable for controlling and switching lighting systems and heating in residential and office environments where noiseless operation is desired. Rated voltage: 230V, frequency:50/60Hz. Operating category: AC1. Number of switches:1,000,000. Operating temperature range:-10 to +50°C Connection type:solid wire (1-10mm²) / flexible wire (1-6mm²). Width: one module at17.5mm.

Produsent

Hager

Varenummer

2748799

Model

ESC225S

Ean

3250612400034

Produktfarge

Grå

Antall moduler

Nåværende kontaktkapasitet

25 A

Antall kontakter

Kabel del

1/10, 1/6 mm²

AC-inngangsspenning

230 V

AC-inngangsfrekvens

50 - 60 Hz

Belastningskapasitet

2,2 VA

Dimensjoner (B x D x H)

17,85 x 60 x 83 mm

Driftstemperatur (T-T)

-10 - 50 °C

Egenskaper
