Komponenter for switchboxes og skap - Hager Humfree contactor 25a 4no 230v 2m - ESC425S
Varenummer: 2748800

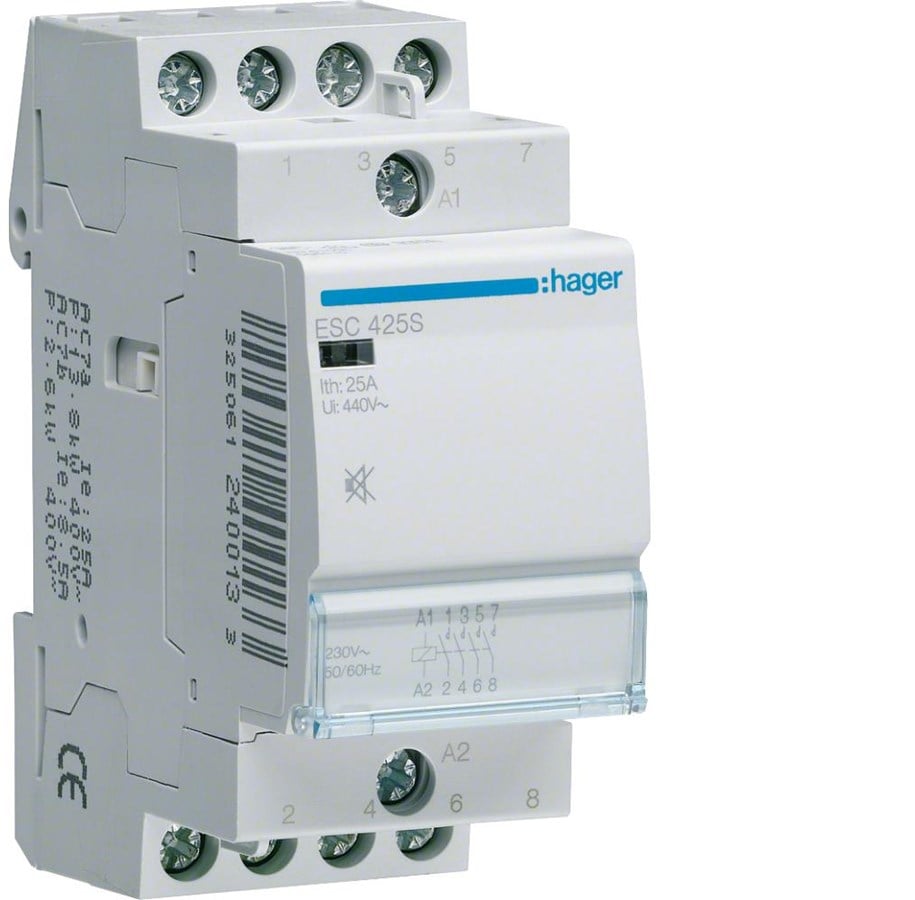

Hager Humfree contactor 25a 4no 230v 2m

Humfree contactor 25A 4NO 230V Humfree for the control of circuitsGuarenteed silence during the entire life of the productCan be equipped with auxiliary contact and sealig capsRated operational voltage: 400 V Frequency: 50/60Hz Type of connection: With screw Operating temperature: -10 to 50 ° C Storage temperature: -40 to 80 ° C Connection cross-sect rigid cable: 1 / 10mm2 Connection cross-sect. flexible cable: 1 / 6mm2 To reduce the mutual heating when using several contactorsit is recommended to use the LZ060 spacerNumber of modules: 2According to standard: EN 61095

Les mer
488,00 kr 390,40 kr eksl. mva
Rimeligste private frakt: 99,00 kr
Fjernlager, 2-4 dager til forsendelse

Contactor 25A 4 NO 230VAC 2M noiselessProduct description: Contactor 25A with four normally open contacts, suitable for controlling and switching lighting systems and heating in residential and office environments where noiseless operation is desired. Rated voltage: 400V, frequency:50/60Hz. Operating category: AC1. Number of switches:1,000,000. Operating temperature range:-10 to +50°C.Connection type:solid wire (1-10mm²) / flexible wire (1-6mm²). Width:2 modules at17.5mm each.

Produsent
Varenummer
2748800
Model
ESC425S
Ean
3250612400133
AC-inngangsspenning
400 V
Samsvarssertifikat
RoHS
Antall
1

Energihåndtering

AC-inngangsspenning
400 V

Tekniske detaljer

Samsvarssertifikat
RoHS

Emballasjeinnhold

Antall
1

Ovenstående informasjon/spesifikasjoner er veiledende og kan uten varsel bli endret av produsenten. Det tas forbehold om trykkfeil og illustrerende bilder. Enkelte tekster kan være autogenerert eller maskinoversatt, så derfor kan det forekomme tekster som virker misvisende.
