Komponenter for switchboxes og skap - Hager Rcbo 1p+n 6ka c-10a 30ma a - ADA960G
Varenummer: 2764819

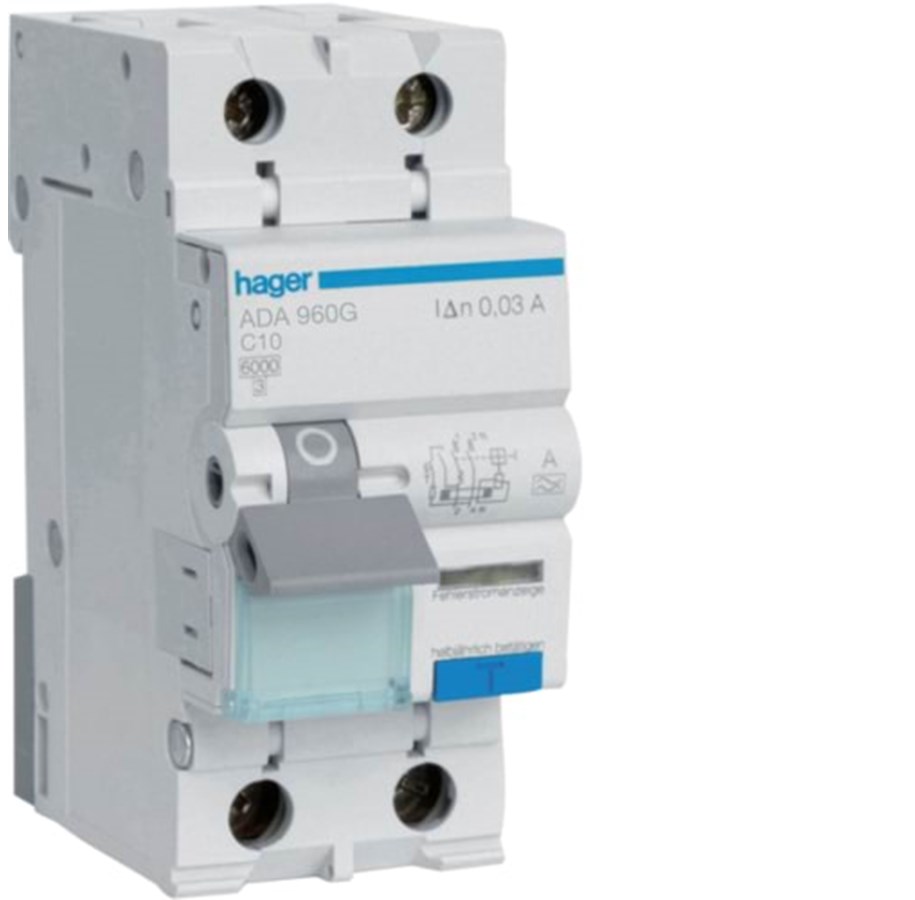

Hager Rcbo 1p+n 6ka c-10a 30ma a

RCBO 1P+N 6kA C-10A 30mA ATechnical data:Release curve: CPoles: 2 poles.Nominal load (in): 10 ARated Voltage (Un): 230V + 10% / -15%Rated output current (Idn): 30mASensitivity Class AFrequency: 50HzRated breakdown: 6kA in h.t. EN61009-1IP protection: IP2x mounted in enclosure.Temperature: 30 ° C in h.t. EN61009-1Pollution rate: 2 in h.t. EN61009-1

Les mer
718,00 kr 574,40 kr eksl. mva
Rimeligste private frakt: 99,00 kr
Fjernlager, 3-5 dager til forsendelse
proshop-xmas-gran proshop-xmas-gran

UTVIDET JULERETURRETT FRAM TIL 31. JANUAR 2025

Proshop tilbyr utvidet Juleretur til privatkunder på ordre kjøpt i perioden 1. november til 23. desember 2024. Les betingelsene her.

HPFI / Circuit breaker combo 1P+N 10A/C Product description: HPFI ADA960G / Circuit breaker combo. 1P+N 10A/CKombi-automaten is a compact unit that ensures protection against overload, short circuit and ground fault. It protects people and animals from electric shock in residential and commercial buildings. It protects property from fire in case of insulation failure.Technical data:Trip curve: C Poles: 2 poles.The neutral is located on the right side.Rated current (In): 10 ARated voltage (Un): 230V +10%/-15%Rated tripping current (Idn): 30mASensitivity Class AFrequency:50Hz Rated breaking capacity :6kA according to EN61009-1IP protection : IP2x mounted in enclosure.Temperature :30°C according to EN61009-1Pollution degree :2 according to EN61009-1The combination breakers are all with one pole and neutral - in a width of two modules (36mm) Technical specifications: Rated current(A) :10Trip curve:CNumber of poles :1P+NFault tripping current(mA) :30

Produsent
Varenummer
2764819
Model
ADA960G
Ean
3250611011071
