Komponenter for switchboxes og skap - Hager Rcbo 1p+n 6ka c-16a 30ma a - ADA966G
Varenummer: 2764820

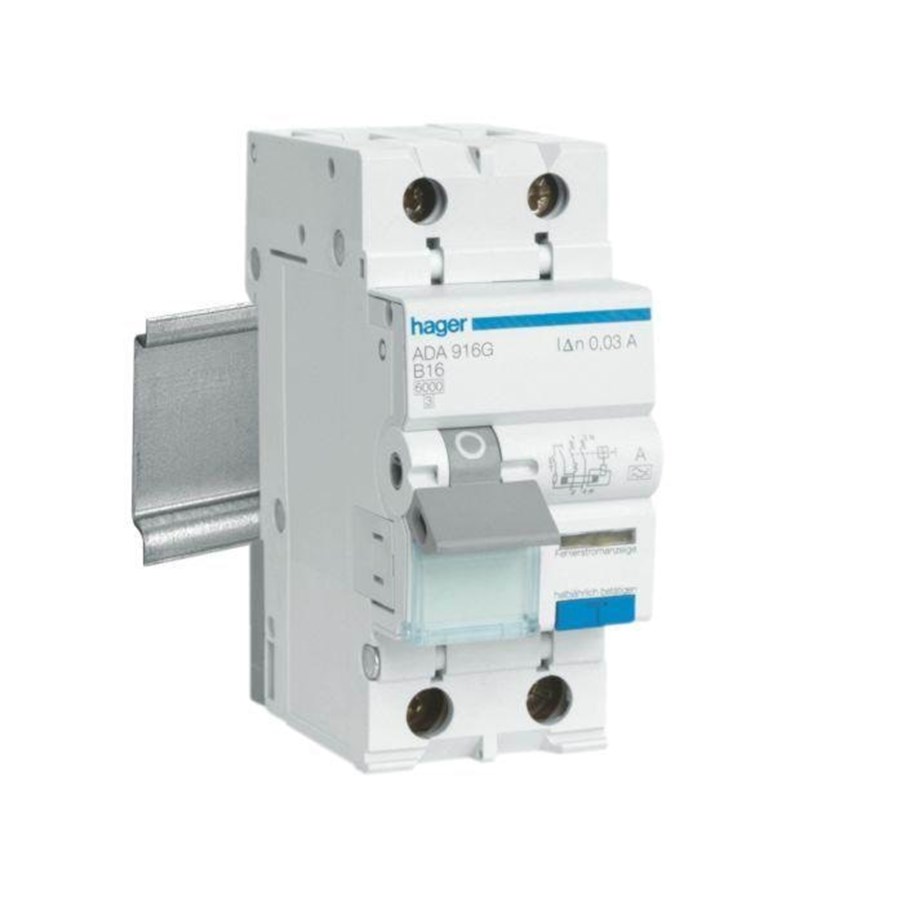

Hager Rcbo 1p+n 6ka c-16a 30ma a

RCBO 1P+N 6kA C-16A 30mA ATechnical data:Release curve: CPoles: 2 poles.Nominal load (in): 16 ARated Voltage (Un): 230V + 10% / -15%Rated output current (Idn): 30mASensitivity Class AFrequency: 50HzRated breakdown: 6kA in h.t. EN61009-1IP protection: IP2x mounted in enclosure.Temperature: 30 ° C in h.t. EN61009-1Pollution rate: 2 in h.t. EN61009-1

Les mer
747,00 kr 597,60 kr eksl. mva
Rimeligste private frakt: 99,00 kr
Fjernlager, 2-5 dager til forsendelse
proshop-xmas-gran proshop-xmas-gran

UTVIDET JULERETURRETT FRAM TIL 31. JANUAR 2025

Proshop tilbyr utvidet Juleretur til privatkunder på ordre kjøpt i perioden 1. november til 23. desember 2024. Les betingelsene her.

HPFI / circuit breaker combo 1P+N 16A/C Product description: HPFI ADA966G / circuit breaker combo. 1P+N 16A/CKombi-automaten is a compact unit that ensures protection against overload, short-circuit and ground fault. It protects people and animals from electric shock in residential and commercial buildings. It also protects property from fire in case of insulation failure.Technical data:Trip curve: C Poles: 2 poles.The neutral is located on the right side.Rated current (In): 16 ARated voltage (Un): 230V +10%/-15%Rated tripping current (Idn): 30mA Sensitivity Class AFrequency:50Hz Rated breaking capacity :6kA according to EN61009-1IP protection : IP2x mounted in enclosure.Temperature :30°C according to EN61009-1Pollution degree :2 according to EN61009-1The combination breakers are all with one pole and neutral - in a width of two modules (36mm) Technical specifications: Rated current(A) :16 Trip curve:C Number of poles :1P+NFault tripping current(mA) :30

Produsent
Varenummer
2764820
Model
ADA966G
Ean
3250611011095
