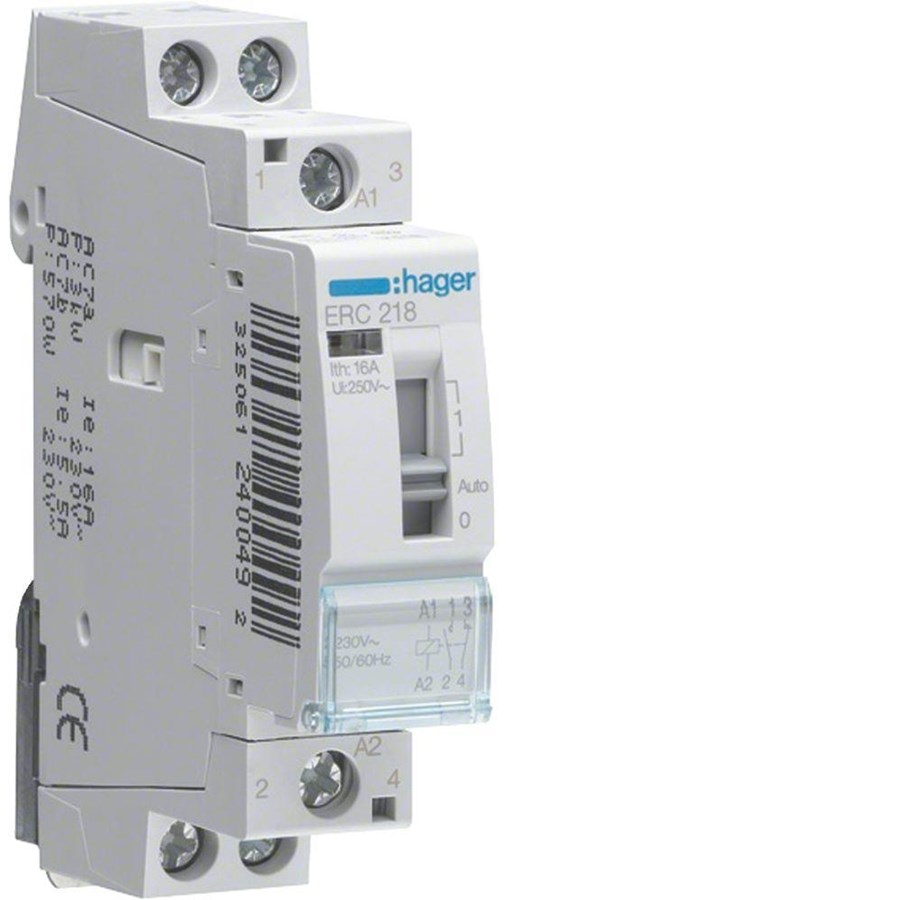

Hager Relay 16a 1no+1nc 12v~50hz
Relay 16A 1NO+1NC 12VFor control of circuitsA control device with 3 positions on the frontRated operating voltage AC: 230V AC control voltage: 12Frequency: 50/60Hz Operating temperature: -10 to 50 ° C Connection cross-section with flexible conductor: 1 - 6mm 2 Cross-sectional area for rigid conductors: 1 - 10mm 2 A lifetime mechanical operations: 1000000 Equipment life, electrical operations: 30000 Total power loss at rated power: 1.6 W Number of modules: 1
762,00 kr
609,60 kr eksl. mva
Rimeligste private frakt: 99,00 kr
Fjernlager, 2-4 dager til forsendelse
Relay 16A 1 NO + 1 NC 12VAC 1M Product Description: Relay for control purposes of automatic controls in electrical systems in connection with pressure and operation buttons. Can be overridden with a switch on the front (hand-0-automatic) Rated voltage: 250V 50/60Hz Coil voltage: 12V Operating category: AC1 Number of connections: 1,000,000 Operating temperature range: -10 to +50 °C Connection type: solid wire from size range of 1-10mm2 / flexible wire from size range of 1-6mm2 Width : one module at 17.5mm
Produsent
Varenummer
2748816
Model
ERL218
Ean
3250612400515
AC-inngangsspenning
230 V
Samsvarssertifikat
RoHS
Antall
1
Energihåndtering
AC-inngangsspenning
230 V
Tekniske detaljer
Samsvarssertifikat
RoHS
Emballasjeinnhold
Antall
1
