Komponenter for switchboxes og skap - Katko side operated service switch 3 pole + auxiliary switch 25a - KSM325US
Varenummer: 2949987

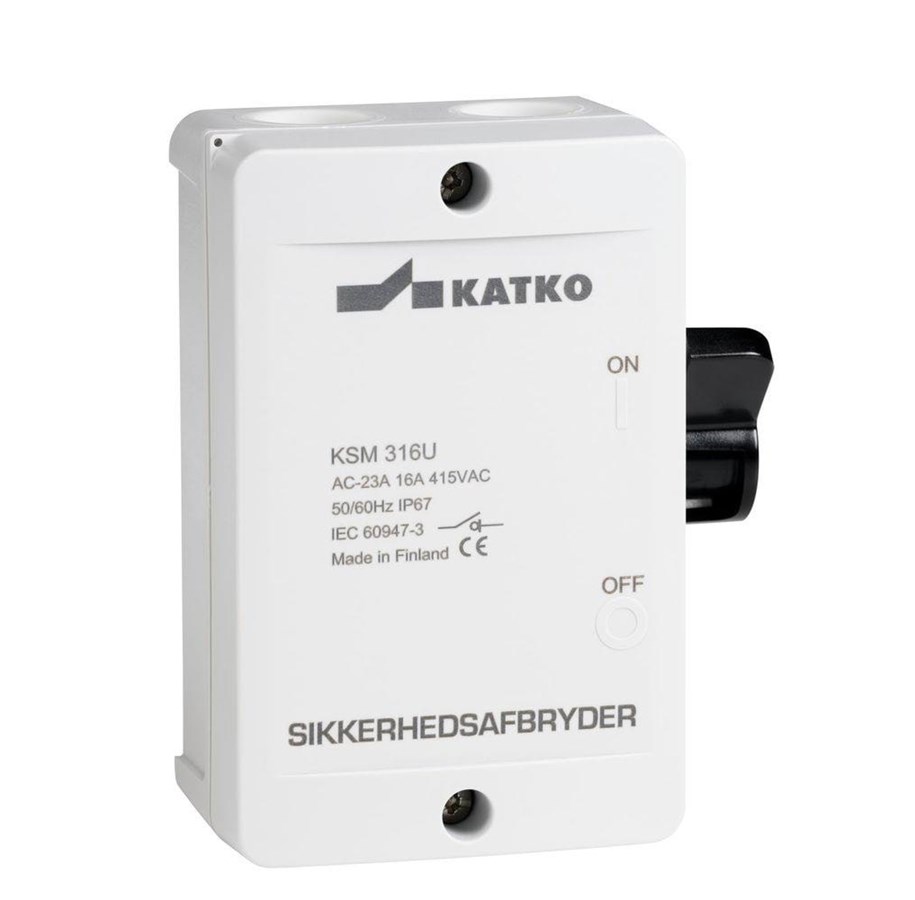

Katko side operated service switch 3 pole + auxiliary switch 25a

Katko Side operated switchPolycarbonate enclosure- IP 67- Good resistance against UV-radiation and many chemicals- Membrane cable inlet with strain relief, 2 x 20mm in top, 2 x 20mm in bottom og 2 x 15mm in base- With 2xM20 perfect cable glands- Wall mounting with membrane gaskets- Compact wall mounting dimensions 90,0 x 62,0mm- Large terminals 5 - 16 mm2 - also for neutral and earth connections- Lockable with padlock in off position- Sealable handle in on-position- Housing can be sealed- Door clutchAC21/AC22: 25A ved 415V, AC23: 11kW

Les mer
567,00 kr 453,60 kr eksl. mva
Rimeligste private frakt: 99,00 kr
Bestillingsvare, leveringstiden kan ikke opplyses.
proshop-xmas-gran proshop-xmas-gran

UTVIDET JULERETURRETT FRAM TIL 31. JANUAR 2025

Proshop tilbyr utvidet Juleretur til privatkunder på ordre kjøpt i perioden 1. november til 23. desember 2024. Les betingelsene her.

Katko Reparation switch 3 pole with auxiliary contact 25A Product description: Katko side-operated switch Polycarbonate casing- IP 67- Good resistance to UV radiation and many chemicals- Membrane cable entry with strain relief, 2 x 20mm at the top, 2 x 20mm at the bottom and 2 x15mm backwards - With3xM20 perfect fittings - Wall mounting with membranes - Compact with wall dimensions of90.0 x62.0 mm - Large elevator terminals5-16 mm² also for neutral and ground connection-Lockingwith padlock in off position-The handle can be sealed in on position-The switch housing can be sealed-The door coupling AC21/AC22:25Aat415V, AC23:11kW

Produsent
Varenummer
2949987
Model
KSM325US
Ean
6419410328415

Ovenstående informasjon/spesifikasjoner er veiledende og kan uten varsel bli endret av produsenten. Det tas forbehold om trykkfeil og illustrerende bilder. Enkelte tekster kan være autogenerert eller maskinoversatt, så derfor kan det forekomme tekster som virker misvisende.
