Komponenter for switchboxes og skap - Noratel [4562035548] - T240-27677
Varenummer: 2770298

Noratel [4562035548]

Elfrost transformer 230/0-130V-190V/10.5A-160V-230V/9A 2070VA IP65 T240-27677 Product description: GTO protection transformer Type T240-27677 Primary voltage 230V Secondary voltage 0 - 130V - 190V Maximum current of 10.5A Secondary voltage of 160V -230 V Maximum current of9A Power output of2070VA Enclosure rating IP65 Enclosed single-phase isolation transformers designed...

Les mer
8 164,00 kr 6 531,20 kr eksl. mva
Rimeligste private frakt: 165,00 kr
Bestillingsvare, leveringstiden kan ikke opplyses.
proshop-xmas-gran proshop-xmas-gran

UTVIDET JULERETURRETT FRAM TIL 31. JANUAR 2025

Proshop tilbyr utvidet Juleretur til privatkunder på ordre kjøpt i perioden 1. november til 23. desember 2024. Les betingelsene her.

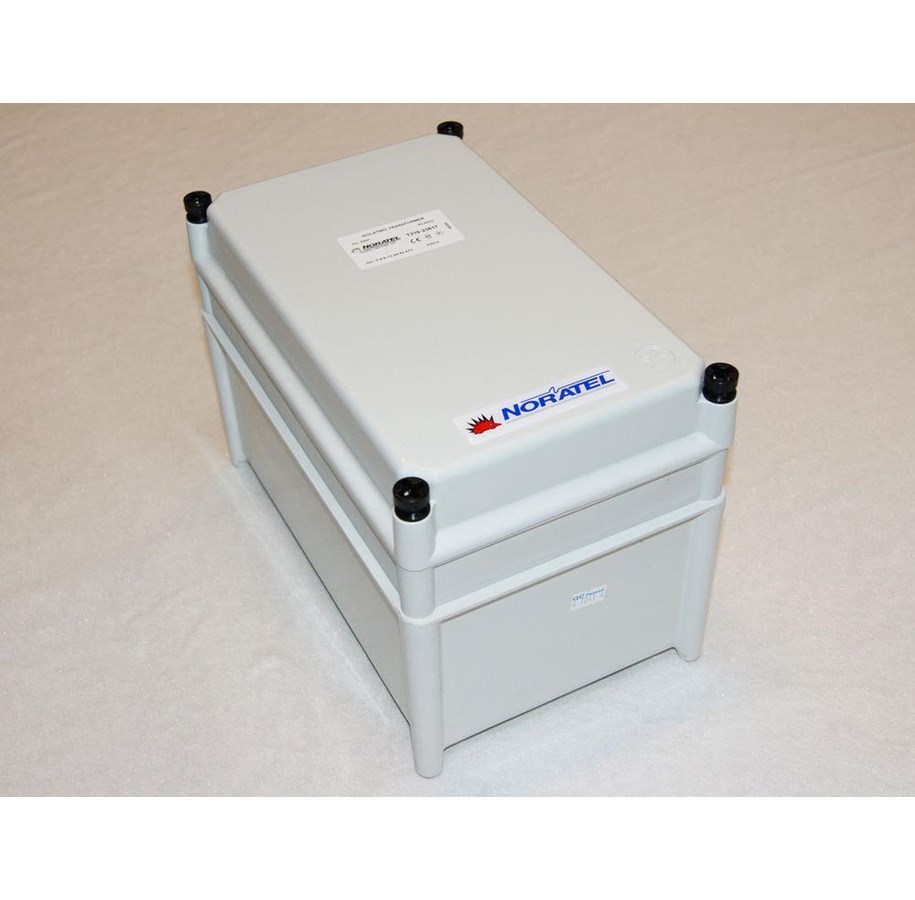

Elfrost transformer 230/0-130V-190V/10.5A-160V-230V/9A 2070VA IP65 T240-27677 Product description: GTO protection transformer Type T240-27677 Primary voltage 230V Secondary voltage 0 - 130V - 190V - Maximum current of 10.5A Secondary voltage of160V -230 V - Maximum current of9A Power output is2070VA Enclosed in an IP65 casing, these single-phase isolation transformers are designed and manufactured according to EN61558-2-4 standards and CE marked. The transformers have separate windings and are impregnated with heat-cured varnish. The transformer is built into an APO type enclosure, optimized for installation dimensions and minimal losses. Application: Used in connection with frost protection of water pipes, the transformers must be protected against overcurrents and short circuits according to the rated current / short circuit current in the applicable installation regulations.Special designs available upon request.

Produsent
Varenummer
2770298
Model
T240-27677
Ean
5703451004256
