Komponenter for switchboxes og skap - Schneider Electric Acti9 Signal contact iOF 1OC 2mA to 100mA for iC60 RCBO iC40 iCV40 screw terminal bottom 24...230V AC - A9A26914
Varenummer: 3271783

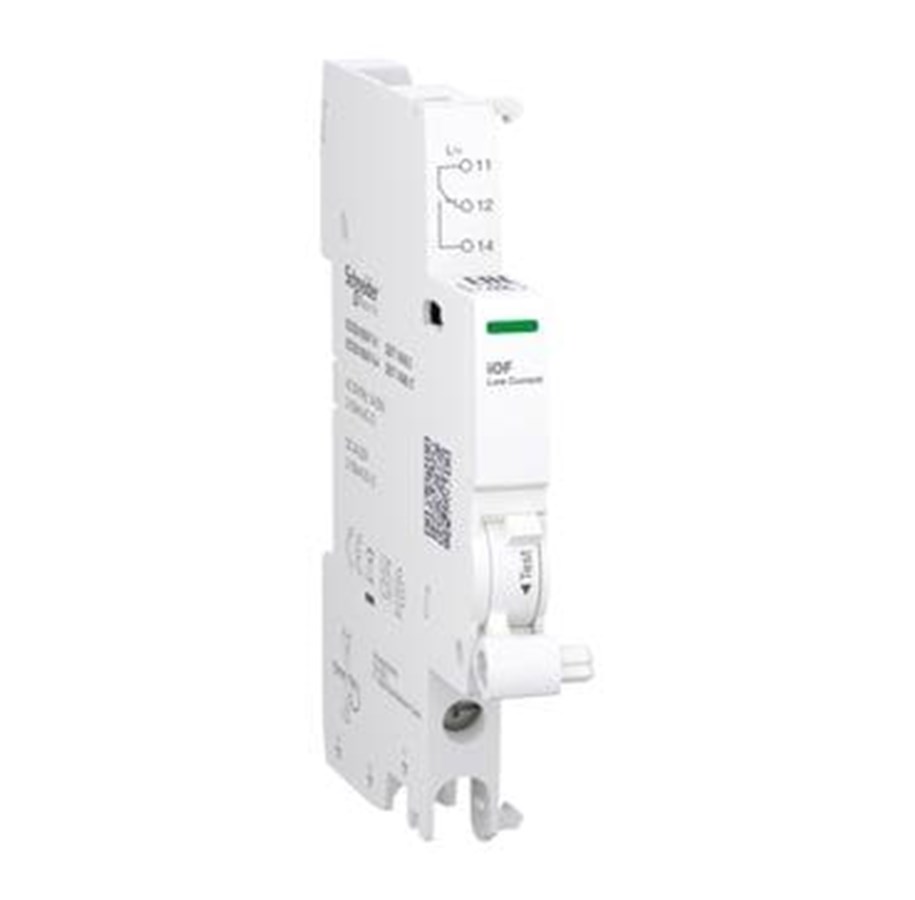

Schneider Electric Acti9 Signal contact iOF 1OC 2mA to 100mA for iC60 RCBO iC40 iCV40 screw terminal bottom 24...230V AC

This Acti9 electrical auxiliary is a modular OC contact used as remote indication ot the position of the associated device. The rated current (In) is from 2mA to 100mA with operating frequency of 50Hz to 60Hz at 24VAC to 240VAC, and from 2mA to 100mA at 24VDC to 220VDC. It has 1 position switch with contacts type 1 C/O. It is intended for new or renovated installation in small commercial, buildings, critical buildings, healthcare, industry, data center and infrastructures. This OC contact is compatible with Acti9 ranges such as iC60, iID, iDPN ARC, iDPN Vigi, iDPN Vigi ARC, iSW, iC40, iC40 ARC, iCV40, iCV40 Vigi ARC, iC40 XA, iCV40 XA and iC60 RCBO. This OC contact is compatible with Acti9 ranges such as Acti9 iDT40, iDT40 XA, iDD40 and iKQE RCBO. It has a screw clamp terminal connection at bottom. The connection allows rigid copper cable. The cable cross section capacity is from 1mm2 to 4mm2. The iOF is either used for device short name or compatibility code. It has a screw clamp terminal connection at bottom. The connection allows rigid copper cable. The cable cross section capacity is from 1mm2 to 4mm2. It has a screw clamp terminal connection at bottom. The connection allows flexible copper cable. The cable cross section capacity is from 0.5mm2 to 2.5mm2. It has a screw clamp terminal connection at bottom. The connection allows rigid copper cables (2 cables). The cable cross section capacity is 2.5mm2. It has a screw clamp terminal connection at bottom. The connection allows flexible with ferrule copper cables (2 cables). The cable cross section capacity is 1.5mm2. The rated insulation voltage (Ui) is up to 500V. It has a rated impulse withstand voltage (Uimp) of 4kV. The width in 9mm pitches is 1. The dimensions are (W) 9mm x (H) 86mm x (D) 73mm. The product colour is white (RAL 9003). The pollution degree is 3. The level of tropicalisation is treatment 2. The tightening torque of connection is 1N.m (bottom) for PZ1 screwdriver type. According to IEC 60529 sta

Les mer
480,00 kr 384,00 kr eksl. mva
Rimeligste private frakt: 99,00 kr
Fjernlager, 2-5 dager til forsendelse
proshop-xmas-gran proshop-xmas-gran

UTVIDET JULERETURRETT FRAM TIL 31. JANUAR 2025

Proshop tilbyr utvidet Juleretur til privatkunder på ordre kjøpt i perioden 1. november til 23. desember 2024. Les betingelsene her.

This Acti9 electrical auxiliary is a modular OC contact used as remote indication ot the position of the associated device. The rated current (In) is from 2mA to 100mA with operating frequency of 50Hz to 60Hz at 24VAC to 240VAC, and from 2mA to 100mA at 24VDC to 220VDC. It has 1 position switch with contacts type 1 C/O. It is intended for new or renovated installation in small commercial, buildings, critical buildings, healthcare, industry, data center and infrastructures. This OC contact is compatible with Acti9 ranges such as iC60, iID, iDPN ARC, iDPN Vigi, iDPN Vigi ARC, iSW, iC40, iC40 ARC, iCV40, iCV40 Vigi ARC, iC40 XA, iCV40 XA and iC60 RCBO. This OC contact is compatible with Acti9 ranges such as Acti9 iDT40, iDT40 XA, iDD40 and iKQE RCBO. It has a screw clamp terminal connection at bottom. The connection allows rigid copper cable. The cable cross section capacity is from 1mm2 to 4mm2. The iOF is either used for device short name or compatibility code. It has a screw clamp terminal connection at bottom. The connection allows rigid copper cable. The cable cross section capacity is from 1mm2 to 4mm2. It has a screw clamp terminal connection at bottom. The connection allows flexible copper cable. The cable cross section capacity is from 0.5mm2 to 2.5mm2. It has a screw clamp terminal connection at bottom. The connection allows rigid copper cables (2 cables). The cable cross section capacity is 2.5mm2. It has a screw clamp terminal connection at bottom. The connection allows flexible with ferrule copper cables (2 cables). The cable cross section capacity is 1.5mm2. The rated insulation voltage (Ui) is up to 500V. It has a rated impulse withstand voltage (Uimp) of 4kV. The width in 9mm pitches is 1. The dimensions are (W) 9mm x (H) 86mm x (D) 73mm. The product colour is white (RAL 9003). The pollution degree is 3. The level of tropicalisation is treatment 2. The tightening torque of connection is 1N.m (bottom) for PZ1 screwdriver type. According to IEC 60529 sta

Produsent
Varenummer
3271783
Model
A9A26914
Ean
3606482129139
