Komponenter for switchboxes og skap - Schneider Electric Acti9 ic60h miniature circuit breaker 3p 32 a c curve 15 - A9F07332
Varenummer: 2762724

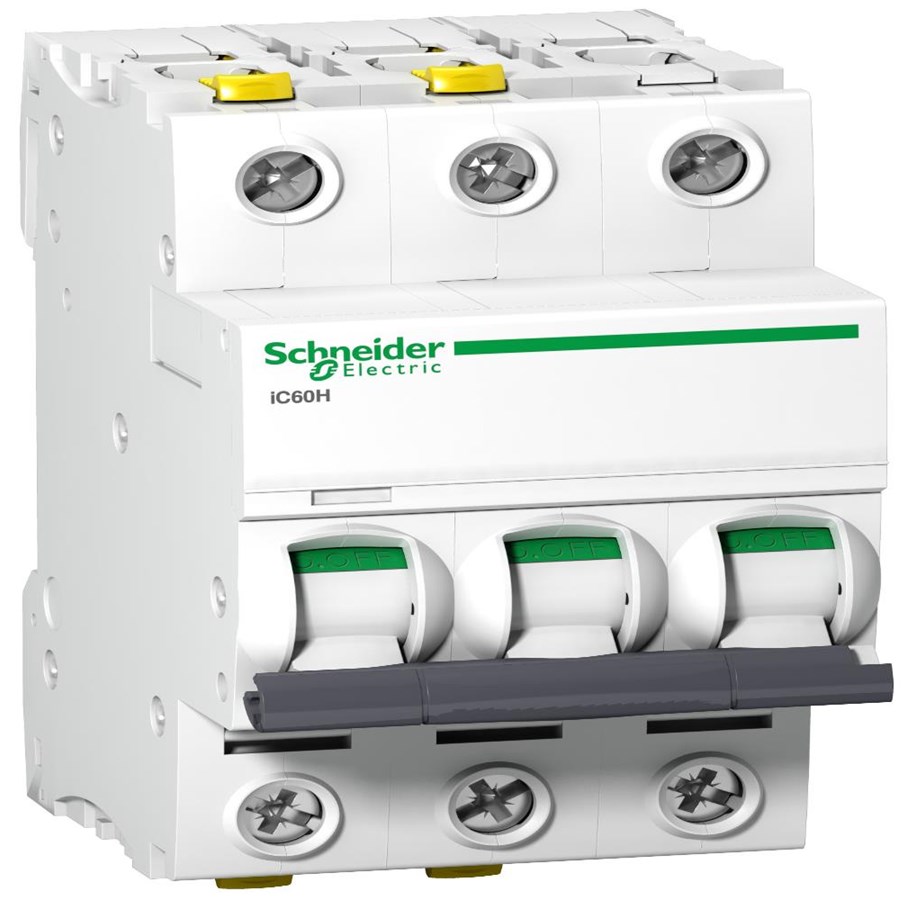

Schneider Electric Acti9 ic60h miniature circuit breaker 3p 32 a c curve 15

This Acti9 iC60H is a low voltage miniature circuit breaker (MCB). It is a 3P circuit-breaker with 3 protected poles, 32A rated current and C tripping curve. It can be mounted on DIN rail for modular installation. As circuit-breaker, its breaking capacity, according to IEC/EN 60898-1, is 10000A at 400VAC. As circuit-breaker, its breaking capacity, according to IEC/EN 60947-2, is 30kA at 230VAC and 15kA at 400VAC. This miniature circuit breaker protects circuits against short circuit and overload currents. It has an IP20 degree of protection (as per IEC/EN 60529) on its terminals. It becomes IP40 once in modular enclosure with insulation class II. its fast closing mechanism improves its service life. Its limitation class 3 (according to EN/IEC60898-1) improves downstream circuit protection cost. Its unique Visitrip indicator reduces intervention time by showing the faulty circuit. Its Visisafe green strip guarantees the physical opening of the contacts to allow downstream maintenance. This double terminal miniature circuit breaker reflects Schneider Electric expertise with more than 40 years developing modular devices for the protection of electrical circuits in all applications. It has a longer service life thanks to its high limitation and fast closing. This product is compliant with both IEC 60898-1 and IEC 60947-2, has IP20B finger proof terminals with double the tightening torque versus the standard and is DIN rail mountable. It offers VisiTripTM for safety during maintenance and VisiSafeTM to reduce intervention time.

Les mer
1 149,00 kr 919,20 kr eksl. mva
Gratis frakt (privatkunde)
Fjernlager, 2-5 dager til forsendelse
proshop-xmas-gran proshop-xmas-gran

UTVIDET JULERETURRETT FRAM TIL 31. JANUAR 2025

Proshop tilbyr utvidet Juleretur til privatkunder på ordre kjøpt i perioden 1. november til 23. desember 2024. Les betingelsene her.

Acti9 iC60H Automatic Circuit Breaker, 3P 32A C, with Double Terminal, 54 mm Product Description: Acti9 automatic circuit breaker, 3P, 32A, 230V 15kA, C-characteristic, double terminal with VisiTripTM and VisiSafeTM. Width of 54 mm. Acti9 iC60 automatic circuit breakers protect the circuit against short-circuit currents and overload currents. Patented VisiTripTM technology indicates faults on the device's front for quick troubleshooting. This circuit breaker is three-pole with a C-characteristic and is rated for 32A at 230V with a short-circuit breaking capacity of up to15kA. The circuit breaker is connected using double terminal clamps that allow separate connection of cables and busbars for easier installation,maintenance,and replacement.IP20B terminals protect against contact with live wires when terminal screws are tightened.Meets both IEC/EN60898-1and IEC/EN60947-2 standards.

Produsent
Varenummer
2762724
Model
A9F07332
Ean
3606480438684
Til produsentens hjemmeside
Innput-strøm
32 A
Antall poler
3
Internasjonal beskyttelses (IP)-kode
IP20
Driftstemperatur (T-T)
-35 - 70 °C
Oppbevaringstemperaturomåde (Celsius)
-40 - 85 °C
Bredde
54 mm
Dybde
78,5 mm
Høyde
91 mm
Vekt
500 g
Samsvarssertifikat
RoHS

Energihåndtering

Innput-strøm
32 A

Egenskaper

Antall poler
3
Internasjonal beskyttelses (IP)-kode
IP20

Miljømessige forhold

Driftstemperatur (T-T)
-35 - 70 °C
Oppbevaringstemperaturomåde (Celsius)
-40 - 85 °C

Vekt og dimensjoner

Bredde
54 mm
Dybde
78,5 mm
Høyde
91 mm
Vekt
500 g

Tekniske detaljer

Samsvarssertifikat
RoHS
