Komponenter for switchboxes og skap - Schneider Electric Acti9 ic60n 1p-n 2a dobbelt terminal c-karakteristik 6/10ka - A9F04602
Varenummer: 2762774

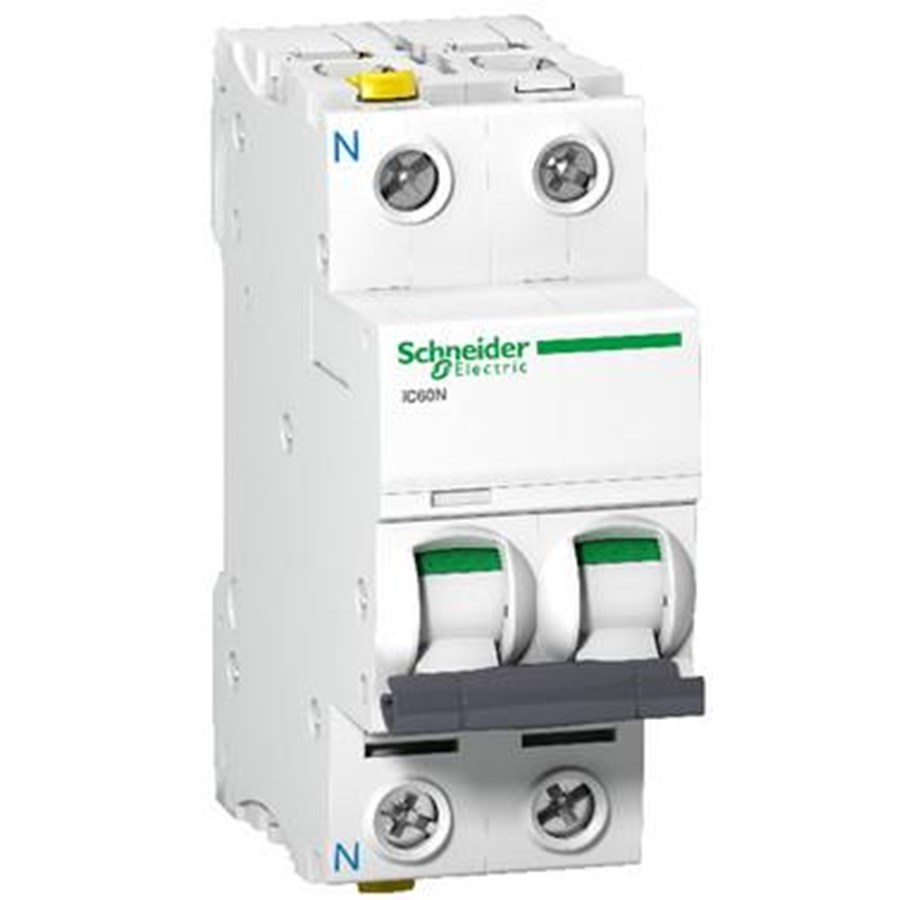

Schneider Electric Acti9 ic60n 1p-n 2a dobbelt terminal c-karakteristik 6/10ka

This Acti9 iC60N is a low voltage miniature circuit breaker (MCB). It is a 1P+N circuit-breaker with 1 protected pole, 2A rated current and C tripping curve. It can be mounted on DIN rail for modular installation. As circuit-breaker, its breaking capacity, according to IEC/EN 60898-1, is 6000A at 230VAC. As circuit-breaker, its breaking capacity, according to IEC/EN 60947-2, is 50kA at 230VAC. This miniature circuit breaker protects circuits against short circuit and overload currents. It has an IP20 degree of protection (as per IEC/EN 60529) on its terminals. It becomes IP40 once in modular enclosure with insulation class II. its fast closing mechanism improves its service life. Its limitation class 3 (according to EN/IEC60898-1) improves downstream circuit protection cost. Its unique Visitrip indicator reduces intervention time by showing the faulty circuit. Its Visisafe green strip guarantees the physical opening of the contacts to allow downstream maintenance.

Les mer
391,00 kr 312,80 kr eksl. mva
Rimeligste private frakt: 99,00 kr
Fjernlager, 2-4 dager til forsendelse
proshop-xmas-gran proshop-xmas-gran

UTVIDET JULERETURRETT FRAM TIL 31. JANUAR 2025

Proshop tilbyr utvidet Juleretur til privatkunder på ordre kjøpt i perioden 1. november til 23. desember 2024. Les betingelsene her.

Acti9 iC60N Automatic Circuit Breaker, 1P+N 2A C, with double terminal, 36 mm. Product description: Acti9 automatic circuit breaker, 1P+N, 2A, 230V 6/10kA, C-characteristic, double terminal with VisiTripTM and VisiSafeTM. Width of 36 mm. Acti9 iC60 automatic circuit breakers protect the circuit against short-circuit currents and overload currents. Patented VisiTripTM technology indicates faults on the unit's front for quick troubleshooting. This circuit breaker has one pole + N and is marked for C-characteristic at a rating of 2A/230V with a short-circuit breaking capacity of6/10kA.The automatic circuit breaker is connected using double terminal clamps that allow separate connection of cables and busbars for easier installation,maintenance,and replacement.IP20 terminals protect against contact with live wires when terminal screws are tightened.Meets both IEC/EN60898-1and IEC/EN60947-2 standards.

Produsent
Varenummer
2762774
Model
A9F04602
Ean
3606480440908
Til produsentens hjemmeside
Innput-strøm
2 A
Antall poler
1
Internasjonal beskyttelses (IP)-kode
IP20
Driftstemperatur (T-T)
-35 - 70 °C
Oppbevaringstemperaturomåde (Celsius)
-40 - 85 °C
Bredde
36 mm
Dybde
78,5 mm
Høyde
91 mm
Vekt
500 g
Samsvarssertifikat
RoHS

Energihåndtering

Innput-strøm
2 A

Egenskaper

Antall poler
1
Internasjonal beskyttelses (IP)-kode
IP20

Miljømessige forhold

Driftstemperatur (T-T)
-35 - 70 °C
Oppbevaringstemperaturomåde (Celsius)
-40 - 85 °C

Vekt og dimensjoner

Bredde
36 mm
Dybde
78,5 mm
Høyde
91 mm
Vekt
500 g

Tekniske detaljer

Samsvarssertifikat
RoHS
