Komponenter for switchboxes og skap - Schneider Electric Acti9 ic60n miniature circuit breaker 3p 6 a c curve 10 - A9F04306
Varenummer: 2762794

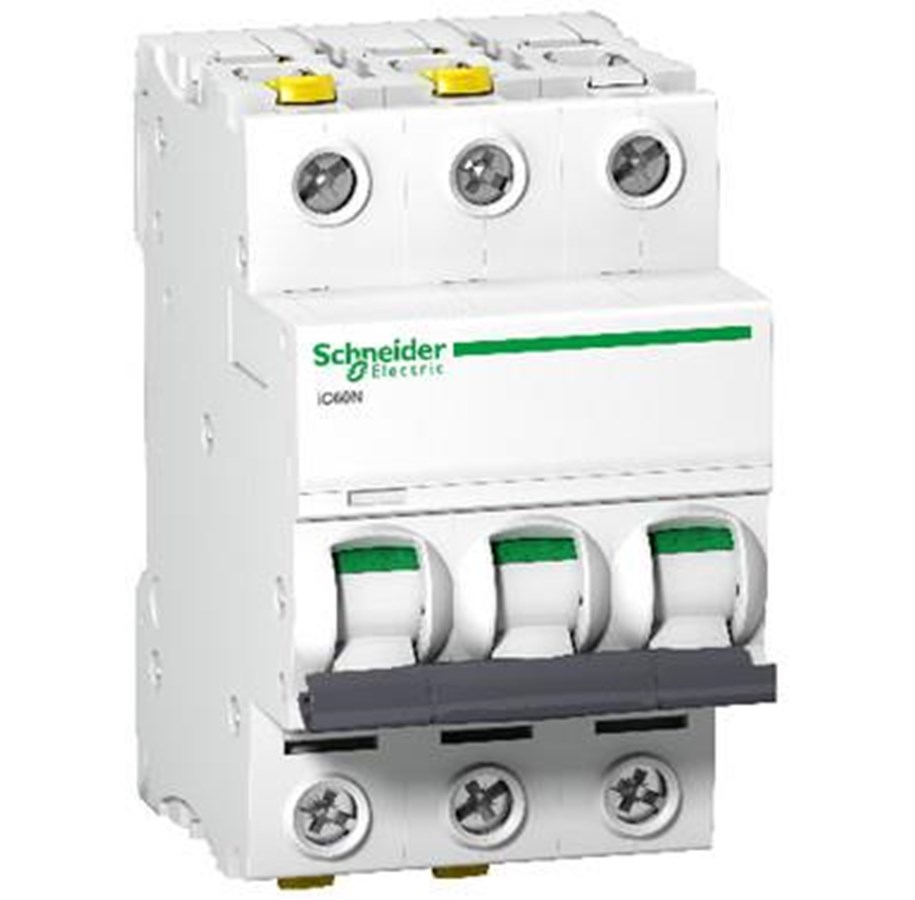

Schneider Electric Acti9 ic60n miniature circuit breaker 3p 6 a c curve 10

This Acti9 iC60N is a low voltage miniature circuit breaker (MCB). It is a 3P circuit-breaker with 3 protected poles, 6A rated current and C tripping curve. It can be mounted on DIN rail for modular installation. As circuit-breaker, its breaking capacity, according to IEC/EN 60898-1, is 6000A at 400VAC. As circuit-breaker, its breaking capacity, according to IEC/EN 60947-2, is 20kA at 230VAC and 10kA at 400VAC. This miniature circuit breaker protects circuits against short circuit and overload currents. It has an IP20 degree of protection (as per IEC/EN 60529) on its terminals. It becomes IP40 once in modular enclosure with insulation class II. its fast closing mechanism improves its service life. Its limitation class 3 (according to EN/IEC60898-1) improves downstream circuit protection cost. Its unique Visitrip indicator reduces intervention time by showing the faulty circuit. Its Visisafe green strip guarantees the physical opening of the contacts to allow downstream maintenance. This double terminal miniature circuit breaker reflects Schneider Electric expertise with more than 40 years developing modular devices for the protection of electrical circuits in all applications. It has a longer service life thanks to its high limitation and fast closing. This product is compliant with both IEC 60898-1 and IEC 60947-2, has IP20B finger proof terminals with double the tightening torque versus the standard and is DIN rail mountable. It offers VisiTripTM for safety during maintenance and VisiSafeTM to reduce intervention time.

Les mer
576,00 kr 460,80 kr eksl. mva
Rimeligste private frakt: 99,00 kr
Fjernlager, 2-4 dager til forsendelse
proshop-xmas-gran proshop-xmas-gran

UTVIDET JULERETURRETT FRAM TIL 31. JANUAR 2025

Proshop tilbyr utvidet Juleretur til privatkunder på ordre kjøpt i perioden 1. november til 23. desember 2024. Les betingelsene her.

Acti9 iC60N Automatic Circuit Breaker, 3P 6A C, with Double Terminal, 54 mm Product Description: Acti9 automatic circuit breaker, 3-pole, 6A, 230V 6/10kA, C-characteristic, double terminal with VisiTripTM and VisiSafeTM. Width of 54 mm. Acti9 iC60 automatic circuit breakers protect the circuit against short-circuit currents and overload currents. Patented VisiTripTM technology indicates faults on the device's front for quick troubleshooting. This circuit breaker is a three-pole type with a C-characteristic and is rated at 6A/230V with a short-circuit breaking capacity of 6/10kA. The circuit breaker is connected using double terminal clamps that allow separate connection of cables and busbars for easier installation, maintenance and replacement. IP20B terminals protect against contact with live wires when terminal screws are tightened. Complies with both IEC/EN60898-1 and IEC/EN60947-2 standards.

Produsent
Varenummer
2762794
Model
A9F04306
Ean
3606480440632
Til produsentens hjemmeside
Innput-strøm
6 A
Antall poler
3
Internasjonal beskyttelses (IP)-kode
IP20
Driftstemperatur (T-T)
-35 - 70 °C
Oppbevaringstemperaturomåde (Celsius)
-40 - 85 °C
Bredde
54 mm
Dybde
78,5 mm
Høyde
91 mm
Vekt
250 g
Samsvarssertifikat
RoHS

Energihåndtering

Innput-strøm
6 A

Egenskaper

Antall poler
3
Internasjonal beskyttelses (IP)-kode
IP20

Miljømessige forhold

Driftstemperatur (T-T)
-35 - 70 °C
Oppbevaringstemperaturomåde (Celsius)
-40 - 85 °C

Vekt og dimensjoner

Bredde
54 mm
Dybde
78,5 mm
Høyde
91 mm
Vekt
250 g

Tekniske detaljer

Samsvarssertifikat
RoHS
