Komponenter for switchboxes og skap - Schneider Electric Acti9 ic60n miniature circuit breaker - 4p - 16a - c curve - A9F04416
Varenummer: 2762777

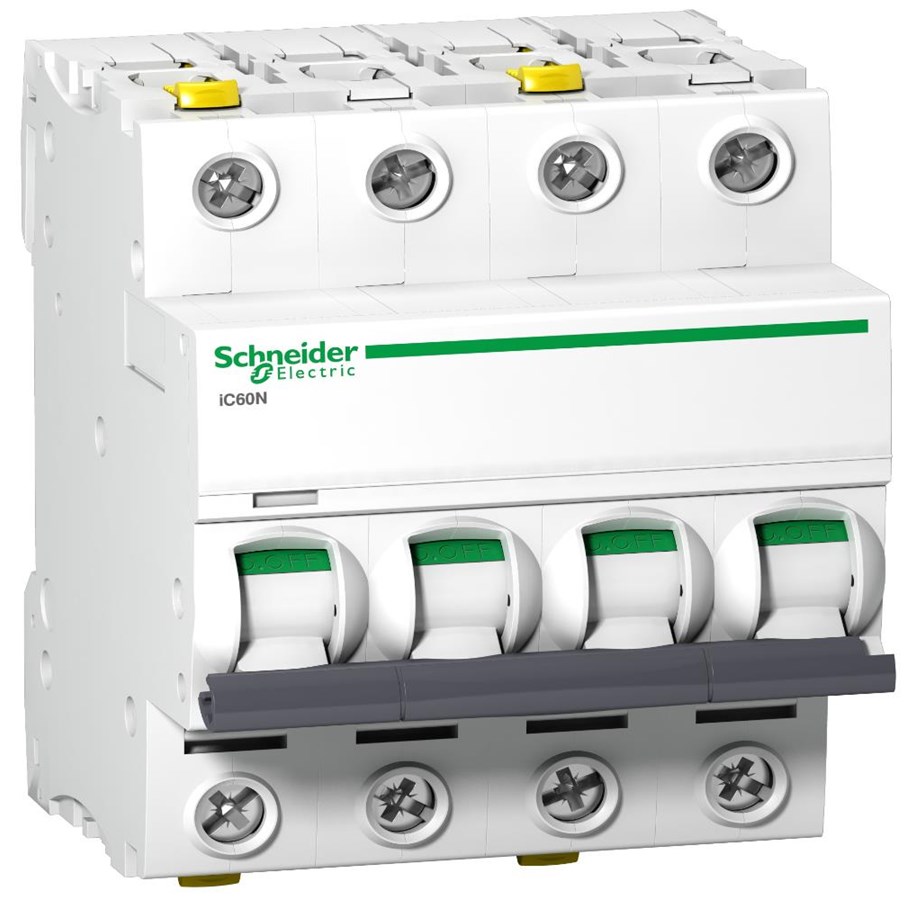

Schneider Electric Acti9 ic60n miniature circuit breaker - 4p - 16a - c curve

This Acti9 iC60N is a low voltage miniature circuit breaker (MCB). It is a 4P circuit-breaker with 4 protected poles, 16A rated current and C tripping curve. It can be mounted on DIN rail for modular installation. As circuit-breaker, its breaking capacity, according to IEC/EN 60898-1, is 6000A at 400VAC. As circuit-breaker, its breaking capacity, according to IEC/EN 60947-2, is 20kA at 230VAC and 10kA at 400VAC. This miniature circuit breaker protects circuits against short circuit and overload currents. It has an IP20 degree of protection (as per IEC/EN 60529) on its terminals. It becomes IP40 once in modular enclosure with insulation class II. its fast closing mechanism improves its service life. Its limitation class 3 (according to EN/IEC60898-1) improves downstream circuit protection cost. Its unique Visitrip indicator reduces intervention time by showing the faulty circuit. Its Visisafe green strip guarantees the physical opening of the contacts to allow downstream maintenance.

Les mer
211,00 kr 168,80 kr eksl. mva
Rimeligste private frakt: 99,00 kr
Fjernlager, 3-6 dager til forsendelse
proshop-xmas-gran proshop-xmas-gran

UTVIDET JULERETURRETT FRAM TIL 31. JANUAR 2025

Proshop tilbyr utvidet Juleretur til privatkunder på ordre kjøpt i perioden 1. november til 23. desember 2024. Les betingelsene her.

Acti9 iC60N Automatic Circuit Breaker, 4P 16A C, with double terminal, 72 mm. Product description: Acti9 automatic circuit breaker, 4P, 16A, 230V 6/10kA, C-characteristic, double terminal with VisiTripTM and VisiSafeTM. Width of 54 mm. Acti9 iC60 automatic circuit breakers protect the circuit against short-circuit currents and overload currents. Patented VisiTripTM technology indicates faults on the device's front for quick troubleshooting. This circuit breaker is four-pole with a C-characteristic and is rated at 16A/230V with a short-circuit breaking capacity of6/10kA. The circuit breaker is connected using double terminal clamps that allow separate connection of cables and busbars for easier installation,maintenance,and replacement.IP20 terminals protect against contact with live wires when terminal screws are tightened.Meets both IEC/EN60898-1andIEC/EN60947-2 standards

Produsent
Varenummer
2762777
Model
A9F04416
Ean
3606480440816
Til produsentens hjemmeside
Innput-strøm
16 A
Antall poler
4
Internasjonal beskyttelses (IP)-kode
IP20
Driftstemperatur (T-T)
-35 - 70 °C
Oppbevaringstemperaturomåde (Celsius)
-40 - 85 °C
Bredde
72 mm
Dybde
78,5 mm
Høyde
91 mm
Vekt
375 g
Samsvarssertifikat
RoHS

Energihåndtering

Innput-strøm
16 A

Egenskaper

Antall poler
4
Internasjonal beskyttelses (IP)-kode
IP20

Miljømessige forhold

Driftstemperatur (T-T)
-35 - 70 °C
Oppbevaringstemperaturomåde (Celsius)
-40 - 85 °C

Vekt og dimensjoner

Bredde
72 mm
Dybde
78,5 mm
Høyde
91 mm
Vekt
375 g

Tekniske detaljer

Samsvarssertifikat
RoHS

Ovenstående informasjon/spesifikasjoner er veiledende og kan uten varsel bli endret av produsenten. Det tas forbehold om trykkfeil og illustrerende bilder. Enkelte tekster kan være autogenerert eller maskinoversatt, så derfor kan det forekomme tekster som virker misvisende.
