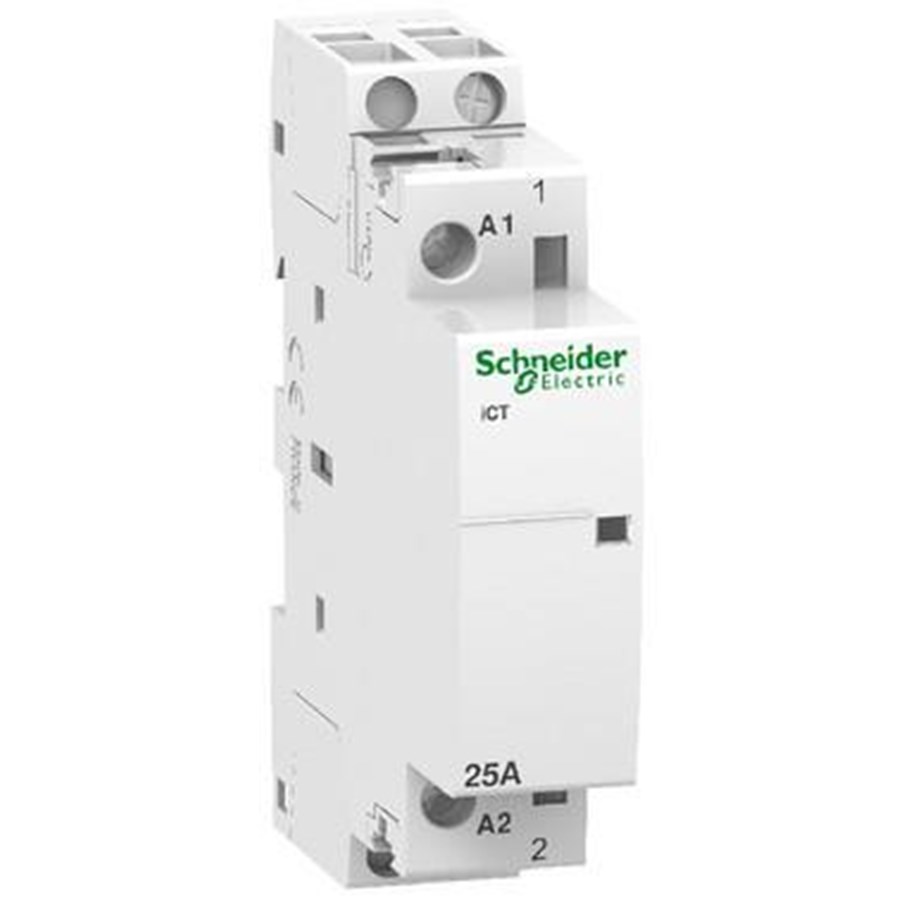

Schneider Electric Acti9 ict contactor 25a 1no 230v 18 mm
This Acti9 iCT is a modular and reliable contactor. It is a 1P remote control device with 1 normally open contact. Rated current is 25A for AC-7a and 8.5A for AC-7b. Operating voltage is 250VAC and a control voltage is 230VAC to 240VAC. Electrical endurance goes up to 100000 cycles for AC-7A or AC-1, 30000 cycles for AC-7C, AC-7B, AC-3, AC-5A or AC-5B. The maximum switching operations is 100 per day. The degree of protection is IP20 and IP40 in an enclosure. It is DIN rail mountable. This device could be used for remote switching small motors (fans, mixers) or HVAC system applications. It is compatible with all the Acti9 control auxiliaries, for heating & ventilation control applications. This product is compliant with IEC/EN 61095.
