Komponenter for switchboxes og skap - Schneider Electric Acti9 itl impulse relay 2p 2 no 16 a 50 / 60 hz coil 23 - A9C30812
Varenummer: 2762601

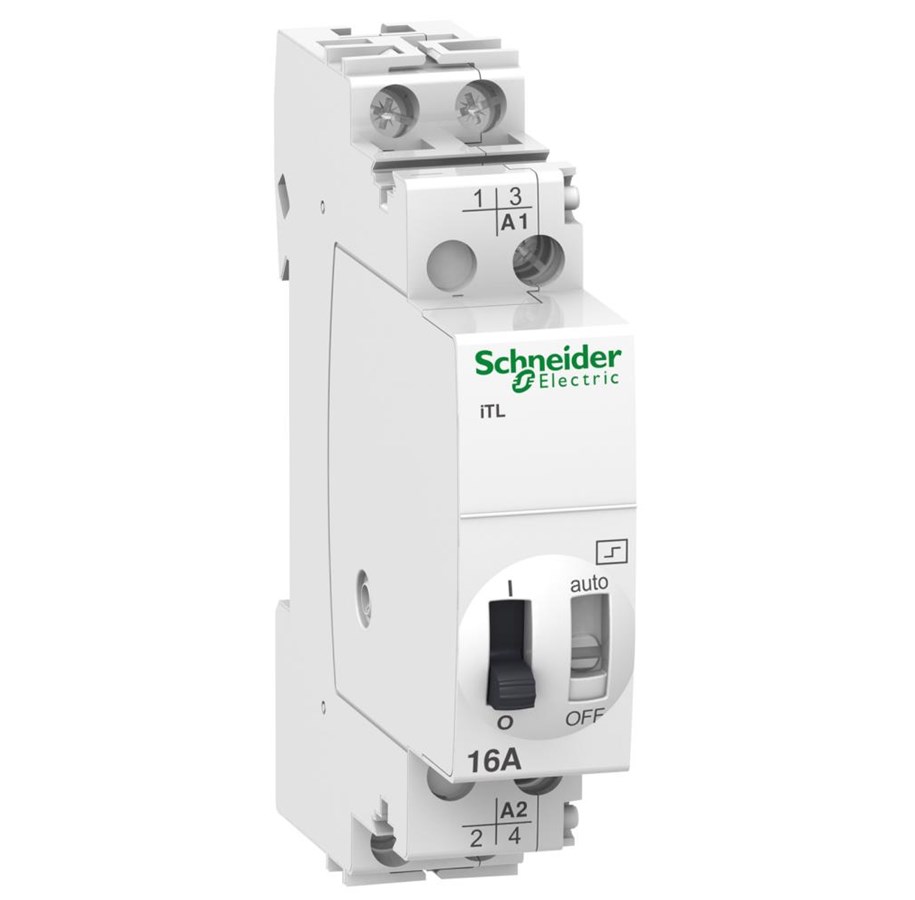

Schneider Electric Acti9 itl impulse relay 2p 2 no 16 a 50 / 60 hz coil 23

This Acti9 iTL is Schneider Electric's modular and reliable impulse relay. It has 2 normally open contacts, is rated 16 amperes and operates with 230 - 240VAC or 110VDC impulse control signal. This product benefits from Schneider Electric expertise with more than 40 years developing modular devices for all type of applications. It has a longer service life thanks to its high limitation and fast closing. This product is compliant with IEC 669-1, IEC 669-2-2, IEC 60529, has IP20 on opening, IP40 in an enclosure and is DIN rail mountable. Ideal for lighting control applications, for example control of a light with more than 3 switches in a living room or a corridor. . Ideal for lighting control applications, for example control of a light with more than 3 switches in a living room or a corridor. High rated current capability in a small package: control many lighting circuits without increasing the size of your panel. Up to 200000 cycles endurance: even with 100 switching cycles per day, the contactor will last more than 5 years. Can switch even with very short 50 ms impulses: your lighting circuit will switch on, no matter how briefly the user pushes the light button.

Les mer
369,00 kr 295,20 kr eksl. mva
Rimeligste private frakt: 99,00 kr
Fjernlager, 2-4 dager til forsendelse
proshop-xmas-gran proshop-xmas-gran

UTVIDET JULERETURRETT FRAM TIL 31. JANUAR 2025

Proshop tilbyr utvidet Juleretur til privatkunder på ordre kjøpt i perioden 1. november til 23. desember 2024. Les betingelsene her.

Acti9 iTL relay 16A 2NO 230VAC/110VDC for controlling lights with impulse switches. Width 18mm. Product description: iTL relays are used together with impulse switches to control lighting circuits and are ideal for larger rooms and corridors where multiple switches are needed to operate the lights. Acti9 iTL relays work with incandescent lamps and halogen low-voltage lamps (resistive loads) as well as fluorescent tubes and discharge lamps (inductive loads). Available with 1 or 2 normally open contacts, they operate depending on the variant, with an impulse of either 12,24 or 230 VAC or6,12 or110VDC. Mounted on a DIN rail.

Produsent
Varenummer
2762601
Model
A9C30812
Ean
3606480088995
Til produsentens hjemmeside
Produktfarge
Hvit
Antall poler
2
Antall moduler
2
Sertifisering
EN 669-1 EN 669-2-2
AC-inngangsfrekvens
50 - 60 Hz
Strøm
16 A
Dimensjoner (B x D x H)
18 x 60 x 84 mm
Driftstemperatur (T-T)
-20 - 50 °C

Egenskaper

Produktfarge
Hvit
Antall poler
2
Antall moduler
2
Sertifisering
EN 669-1 EN 669-2-2

Energihåndtering

AC-inngangsfrekvens
50 - 60 Hz
Strøm
16 A

Vekt og dimensjoner

Dimensjoner (B x D x H)
18 x 60 x 84 mm

Miljømessige forhold

Driftstemperatur (T-T)
-20 - 50 °C

Ovenstående informasjon/spesifikasjoner er veiledende og kan uten varsel bli endret av produsenten. Det tas forbehold om trykkfeil og illustrerende bilder. Enkelte tekster kan være autogenerert eller maskinoversatt, så derfor kan det forekomme tekster som virker misvisende.
