Komponenter for switchboxes og skap - Schneider Electric Acti9 itl impulse relay 2p 2 no 16 a 50 / 60 hz coil 24 - A9C30112
Varenummer: 2762606

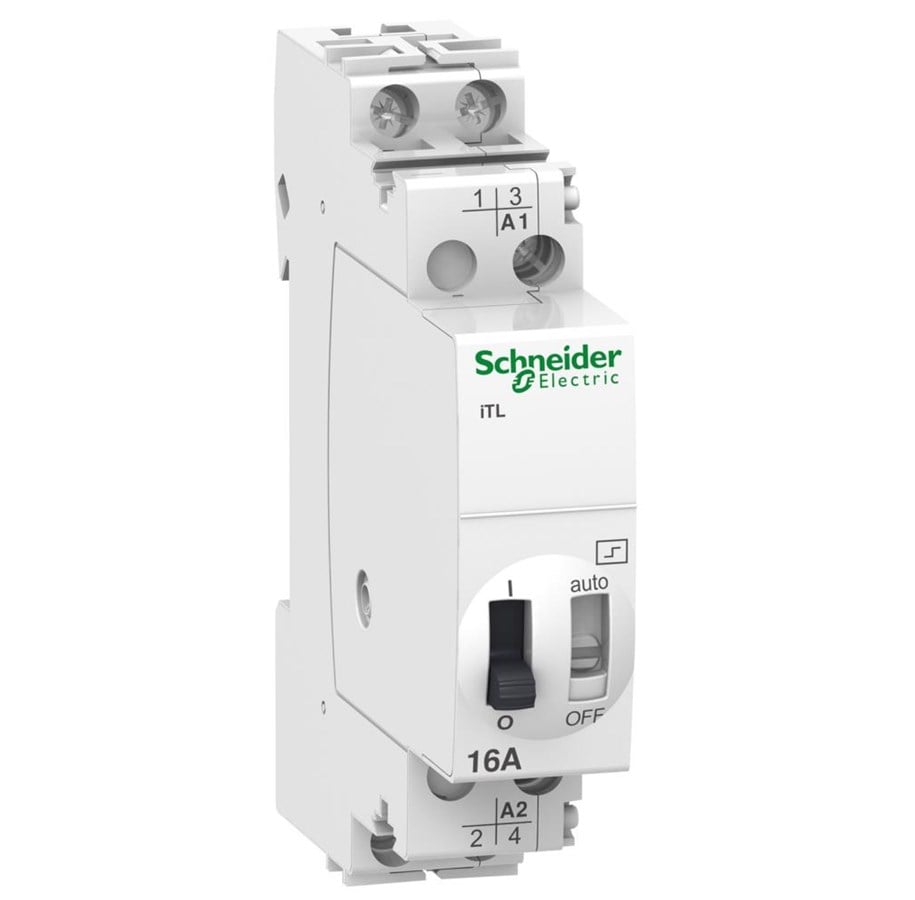

Schneider Electric Acti9 itl impulse relay 2p 2 no 16 a 50 / 60 hz coil 24

This Acti9 iTL is a modular and reliable impulse relay. This 2P device has 2 normally open contacts. Rated current is 16A, 24VAC to 250VAC operating voltage and it operates with 24VAC or 12VDC control voltage. Electrical endurance goes up to 200000 cycles AC-21 or 100000 cycles AC-22. The switching frequency is 5 switching operations/minute or 100 switching operations/day. The duration of the command order should be between 50ms to 1s. The degree of protection is IP20 and IP40 in an enclosure. It is DIN rail mountable. It is mainly used for lighting control applications. This product is compliant with IEC/EN 60669-1, IEC/EN 60669-2-2. This product benefits from Schneider Electric expertise with more than 40 years developing modular devices for all type of applications. It has a longer service life thanks to its high limitation and fast closing. This product is compliant with IEC 669-1, IEC 669-2-2, IEC 60529, has IP20 on opening, IP40 in an enclosure and is DIN rail mountable. Ideal for lighting control applications, for example control of a light with more than 3 switches in a living room or a corridor. . Ideal for lighting control applications, for example control of a light with more than 3 switches in a living room or a corridor. High rated current capability in a small package: control many lighting circuits without increasing the size of your panel. Up to 200000 cycles endurance: even with 100 switching cycles per day, the contactor will last more than 5 years. Can switch even with very short 50 ms impulses: your lighting circuit will switch on, no matter how briefly the user pushes the light button.

Les mer
386,00 kr 308,80 kr eksl. mva
Rimeligste private frakt: 99,00 kr
Fjernlager, 2-5 dager til forsendelse
proshop-xmas-gran proshop-xmas-gran

UTVIDET JULERETURRETT FRAM TIL 31. JANUAR 2025

Proshop tilbyr utvidet Juleretur til privatkunder på ordre kjøpt i perioden 1. november til 23. desember 2024. Les betingelsene her.

Acti9 impulse relay iTL 16A 2NO 24VAC/12VDC for controlling lighting with impulse switches. Width of 18mm. Product description: The iTL impulse relays are used together with impulse switches to control lighting circuits and are ideal for larger rooms and corridors where multiple switches are needed to operate the lights. Acti9 iTL impulse relays work with incandescent lamps and low-voltage halogen lamps (resistive loads) as well as fluorescent tubes and discharge lamps (inductive loads). Available with 1 or 2 normally open contacts, they operate depending on the variant, with impulses of 12, 24 or 230 VAC or 6,12 or110VDC. Mounted on DIN rail.

Produsent
Varenummer
2762606
Model
A9C30112
Ean
3606480091889
Til produsentens hjemmeside

Ovenstående informasjon/spesifikasjoner er veiledende og kan uten varsel bli endret av produsenten. Det tas forbehold om trykkfeil og illustrerende bilder. Enkelte tekster kan være autogenerert eller maskinoversatt, så derfor kan det forekomme tekster som virker misvisende.
